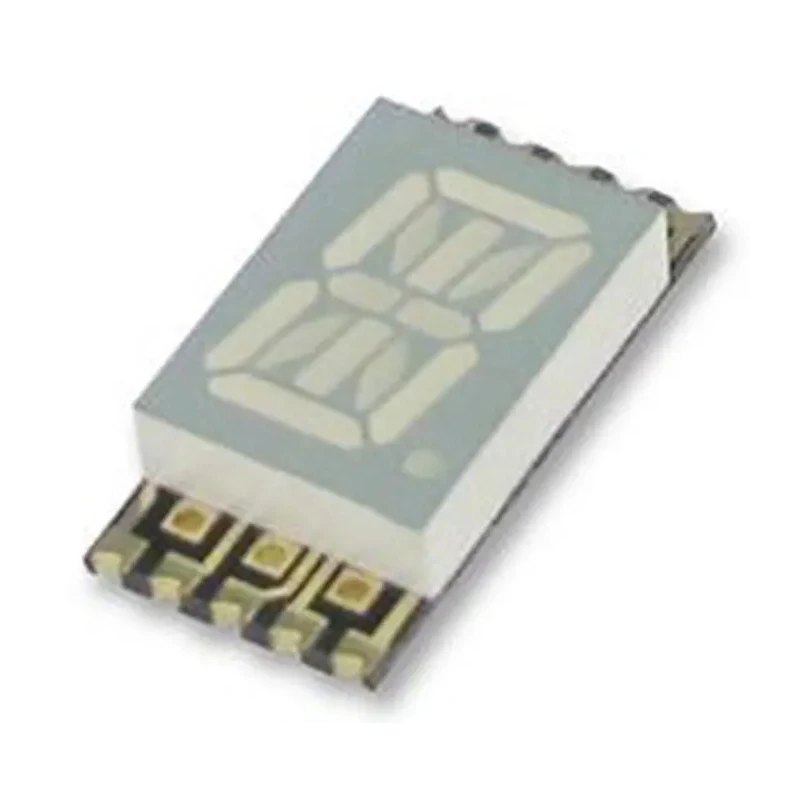

Kingbright 1 Digit 14 Segment Yellow LED Display Anode Surface Mount 10.2 mm KCPSA04-107
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 14 Segment |
| Brand | Kingbright |
| Model | KCPSA04-107 |
| Mount Type | Surface |
| Series | KCPSA04 |
| Character height | 10.2mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 14 |
| External Width | 9.3mm |
| External Depth | 19mm |
| External Height | 3.8mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 46mcd |
| Colours | Red, Green, Yellow |
| Standards/Approvals | RoHS |
| LED Colour | Yellow |
| Dominant Wavelength | 590nm |
| Colour of Face | Grey |
| Forward Voltage | 2.5V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 6mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- This is a single-digit, 14 segment LED display with yellow color output.
- It operates with a common anode connection designed for surface mount installation.
- The character width is 6 mm and height is 10.2 mm for clear visibility.
- The display is designed with a grey coloured face and right side decimal orientation.
- Operating voltage forward voltage is 2.5V with a forward current of 30mA and power dissipation of 75mW.
- Designed to operate from -40°C to 85°C, offering robust temperature tolerance.
- Compact external dimensions are 9.3 mm width, 3.8 mm height, and 19 mm depth.
- Ideal for alphanumeric display applications requiring high contrast and mechanical ruggedness.
Product Description
Kingbright KCPSA04-107 is a high-quality single-digit 14 segment LED display featuring yellow LED color output and a character height of 10.2 mm. Built with a common anode and surface mount technology, this display ensures easy integration into electronic systems.
This display provides a luminous intensity of 46 millicandela, delivering bright and clear alphanumeric characters. The character width of 6 mm and right side decimal orientation make it suitable for precise and detailed numerical and letter displays.
With an operating temperature range from -40°C to 85°C and forward voltage of 2.5V, it guarantees reliability in diverse environmental conditions. Power dissipation is limited to 75mW at a forward current of 30mA, ensuring energy-efficient performance.
Externally, the display measures 9.3 mm in width, 3.8 mm in height, and 19 mm in depth, making it compact for space-critical applications. Its grey face color enhances contrast, improving readability in various lighting conditions.
Kingbright KCPSA04-107 displays are widely used in industrial, laboratory, instrumentation, and electronic automation systems where high contrast alphanumeric readouts are required. It supports a range of applications including measurement devices, control panels, and embedded systems.
This is a single-digit, 14 segment LED Display with yellow color output. It operates with a common anode connection designed for surface mount installation. The character width is 6 mm and height is 10.2 mm for clear visibility.
The display is designed with a grey coloured face and right side decimal orientation. Operating voltage forward voltage is 2.5V with a forward current of 30mA and power dissipation of 75mW. Designed to operate from -40°C to 85°C, offering robust temperature tolerance.
Compact external dimensions are 9.3 mm width, 3.8 mm height, and 19 mm depth. Ideal for alphanumeric display applications requiring high contrast and mechanical ruggedness. Explore more electronics components and display modules at EnvMart to suit your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The character height of this model is 10.2 mm, providing clear visibility for alphanumeric characters.
This display can operate at a maximum temperature of 85°C, making it suitable for various environments.
It uses a common anode connection, designed for surface mount installation.
The forward voltage is 2.5V with a forward current of 30mA, ensuring proper operation.
The external dimensions are 9.3 mm in width, 3.8 mm in height, and 19 mm in depth.
The luminous intensity is 46 millicandela, providing bright and clear displays.
The face of this display is grey, which enhances contrast and readability.
The power dissipation is rated at 75mW, ensuring energy-efficient performance.
The minimum operating temperature is -40°C, allowing it to function in extreme conditions.
This model features 14 segments, suitable for displaying alphanumeric characters.
It is widely used in industrial, laboratory, instrumentation, and electronic automation systems.
This model is RoHS compliant, ensuring it meets environmental safety standards.
