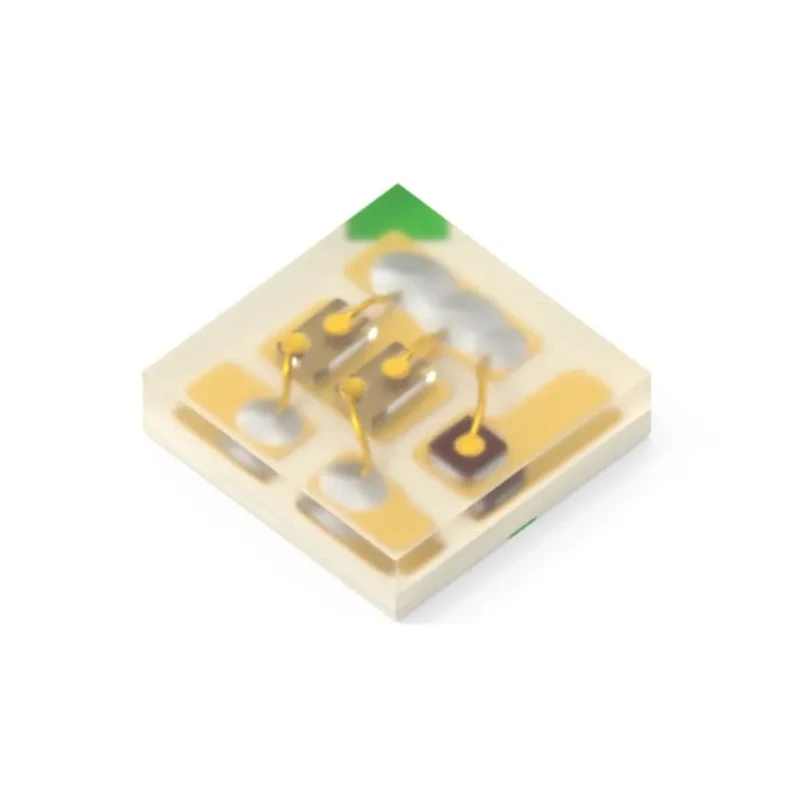

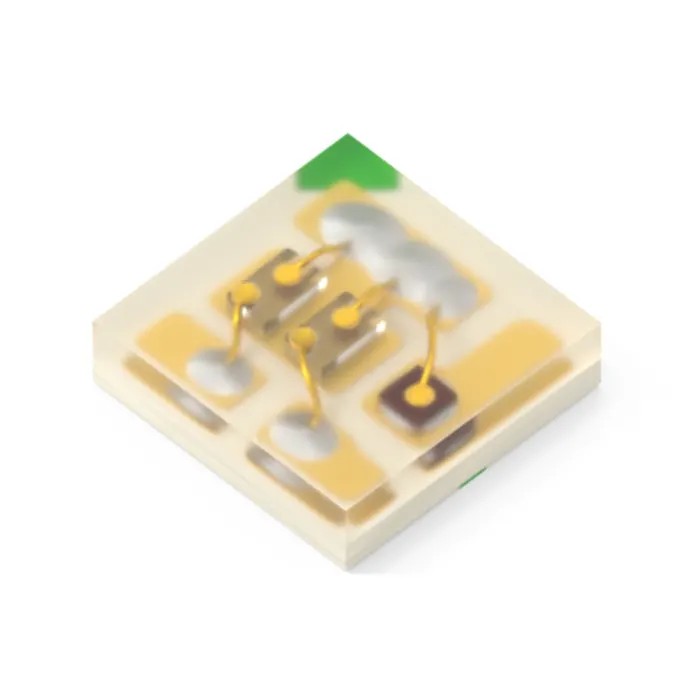

Kingbright 3.3 V RGB LED Surface Mount Device with 3 LEDs and 150° Viewing Angle KPGF-1012GBRC-07

Free Delivery in India | Lowest Global Shipping Charges

Kingbright 3.3 V RGB LED Surface Mount Device with 3 LEDs and 150° Viewing Angle KPGF-1012GBRC-07

Name: Kingbright 3.3 V RGB LED Surface Mount Device with 3 LEDs and 150° Viewing Angle KPGF-1012GBRC-07
Brand: Kingbright
SKU: 423555
Price: 2.2 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Model	KPGF-1012GBRC-07
Packaging	Reel
Mount Type	Surface
Series	KPGF-1012GBRC-07
Number Of Leds	3
Maximum forward current	50mA
Viewing angle	150 °
Package Type	Surface Mount
Standards/Approvals	RoHS
LED Colour	RGB
Forward Voltage	3.3V
Maximum Power Dissipation	35mW
Lens Dimensions	1 x 1 mm

Key Features

The LED uses InGaN and AlGaInP semiconductor materials for superior color rendering.
Offers a viewing angle of 150 degrees for wide light dispersion.
Designed with a compact 1.0 mm x 1.0 mm lens dimension and 0.25 mm thickness.
Low power consumption with maximum power dissipation of 35 mW.
Package supplied in reels with 4000 pieces per reel for efficient assembly.
Features a maximum forward current rating of 50 mA ensuring reliable operation.
Complies with RoHS standards ensuring environmental safety.
Moisture sensitivity level 3 and halogen-free construction enhances reliability.

Product Description

Kingbright KPGF-1012GBRC-07 is a high-quality RGB LED Surface Mount Device (SMD) that operates at a forward voltage of 3.3 V and features three integrated LEDs. This SMD LED is engineered using InGaN technology for the blue component and AlGaInP on GaAs substrate for the red component, providing vivid RGB color output suitable for diverse electronic applications.

The device measures 1.0 mm x 1.0 mm with a thickness of 0.25 mm, supporting compact PCB designs while maintaining a wide 150-degree viewing angle for excellent light dispersion. The maximum forward current rating is 50 mA, with a low maximum power dissipation of 35 mW, making it highly efficient for power-sensitive designs.

Packed in reels of 4000 units, this product supports automated assembly processes to enhance production efficiency. It is moisture sensitive at level 3 and halogen-free, complying with RoHS directives for environmental compliance.

This RGB LED SMD device is suitable for use in industrial electronics, laboratory instrumentation, display signage, communication devices, and automotive systems that require reliable and vibrant RGB light sources.

Handling precautions include use of electrostatic discharge protective measures such as wristbands or gloves to avoid damage during assembly. All equipment must be properly grounded.

The LED device features precise semiconductor materials for distinct RGB output. Wide viewing angle and compact dimensions enable versatile PCB integration. Reel packaging supports high-volume industrial production. Certified RoHS compliant and environmentally friendly construction.

Low power consumption suits energy-efficient applications. Moisture sensitivity classification ensures proper handling guidelines. Reliable forward current and power ratings enhance longevity and performance. Applicable in electronics, displays, HVAC signaling, and industrial automation.
