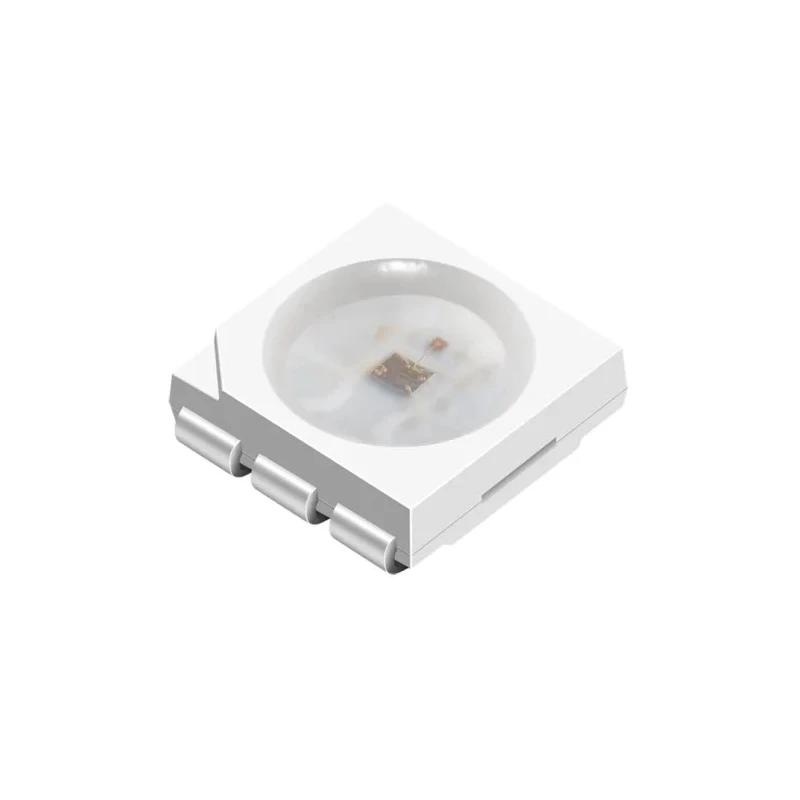

Kingbright 5 V RGB LED 5050 Surface Mount Light Source KAAF-5050RGBST-IC12

Kingbright KAAF-5050RGBST-IC12 is a high-performance 5 V RGB LED designed for surface mount applications in electronic components. It integrates an intelligent control circuit and RGB chips within a compact 5050 package, enabling precise control over individual pixel points. This design supports simplified circuitry and compact installation, making it ideal for advanced lighting solutions.

The control chip and LED share the same power input, enhancing reliability and reducing complexity. It features intelligent protections including reverse polarity protection and electric reset circuits to safeguard against power surges and disruptions. The LED supports a 256-level grayscale adjustment enabling fine control over brightness and color intensity.

With a 120° wide viewing angle, the LED provides consistent illumination suitable for signage, display panels, and decorative lighting. The luminosity values are optimized for RGB colors with 200 mcd, 400 mcd, and 80 mcd brightness levels respectively. The compact lens size of 5.0 x 5.0 mm ensures a small footprint.

This LED complies with RoHS environmental standards, making it suitable for sustainable and regulation-compliant electronic manufacturing. The built-in signal reshaping circuit ensures stable data signals across cascaded LEDs, supporting intricate and scalable lighting arrays.

Ideal applications include industrial lighting, electronic displays, commercial signage, and indoor decorative lighting where color control and modular installation are critical.

Note: Electrostatic discharge and power surge can damage this LED; appropriate handling precautions such as wrist band or anti-static gloves and grounded equipment are recommended.

This LED integrates a control circuit and RGB chips in a compact 5050 surface mount package. Uses unipolar NRZ communication data protocol for control signal transmission. Includes intelligent protection against reverse polarity and power loss with built-in reset circuits.

Supports 256-level grayscale adjustable dimming for smooth color transitions. Features a wide 120° viewing angle for consistent illumination. Luminosity levels: 200 mcd, 400 mcd, and 80 mcd for RGB colors. Compact lens dimensions of 5.0 x 5.0 mm for space-constrained designs.
