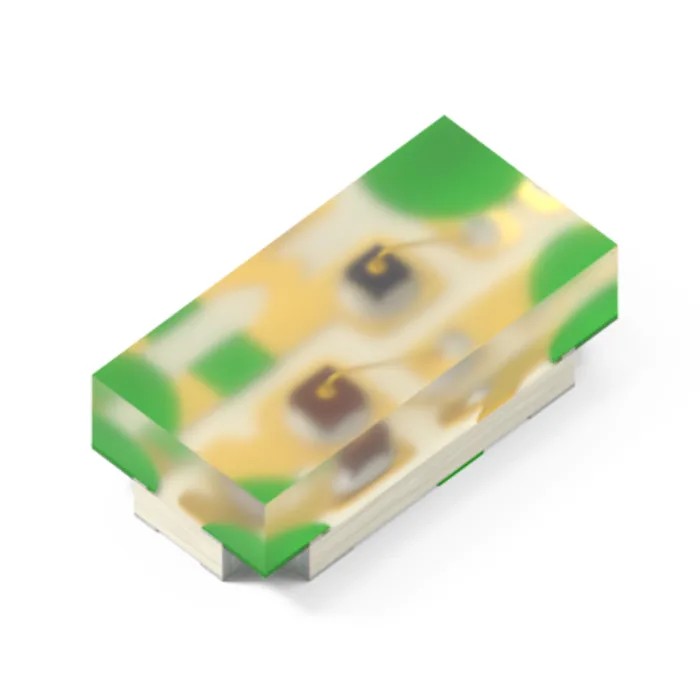

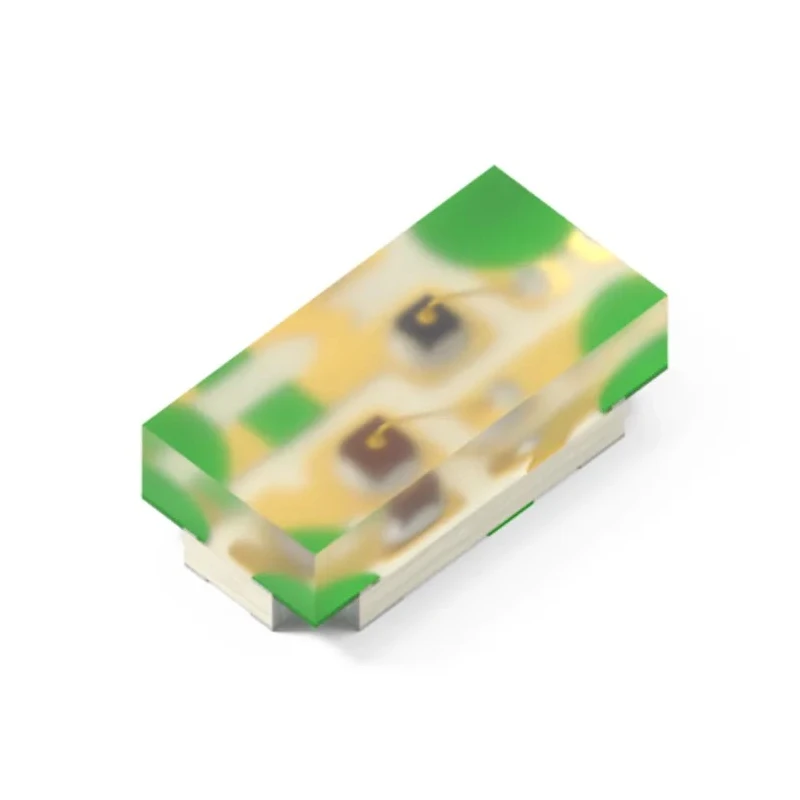

Kingbright 3.3 V Blue, Red LED Surface Mount Device KPHB-1608QBDSURKC-GX

Kingbright KPHB-1608QBDSURKC-GX is a professional dual-colour blue and red surface mount LED device designed for electronic component applications requiring reliable and efficient light emission at a forward voltage of 3.3 V. It integrates 2 LEDs in a compact 1.6 x 0.8 x 0.5 mm package thickness, making it ideal for high-density circuit board layouts.

This LED is fabricated using InGaN technology for the blue LED segment and AlGaInP on GaAs substrate for the hyper red LED segment, providing high performance and reliability for visual indicators in industrial, automotive, and consumer electronics.

The maximum forward current of 30mA combined with a maximum power dissipation of 120mW allows for efficient operation with minimal thermal issues. With a wide 130-degree viewing angle and a dominant wavelength of 630nm, the device ensures excellent visibility and vibrant colour output.

The LED is fully compatible with standard reflow soldering processes, includes tinned pads for improved solderability, and possesses moisture sensitivity level 3, indicating controlled storage and handling requirements. Additionally, it is halogen-free and RoHS compliant, aligning with environmental safety standards.

This component is suited for applications in industrial equipment, automotive dashboard indicators, consumer electronics displays, and instrumentation panels requiring bi-colour indication.

The device is designed for compact integration in electronic assemblies. Tinned pads enhance soldering quality and mechanical strength. Moisture sensitivity level 3 requires proper moisture control during handling. Halogen-free material composition enhances environmental compliance.

RoHS compliance ensures adherence to hazardous substance regulations. Manufactured in China with consistent quality standards. Explore further Kingbright LEDs and optoelectronic components at EnvMart for diverse application needs.
