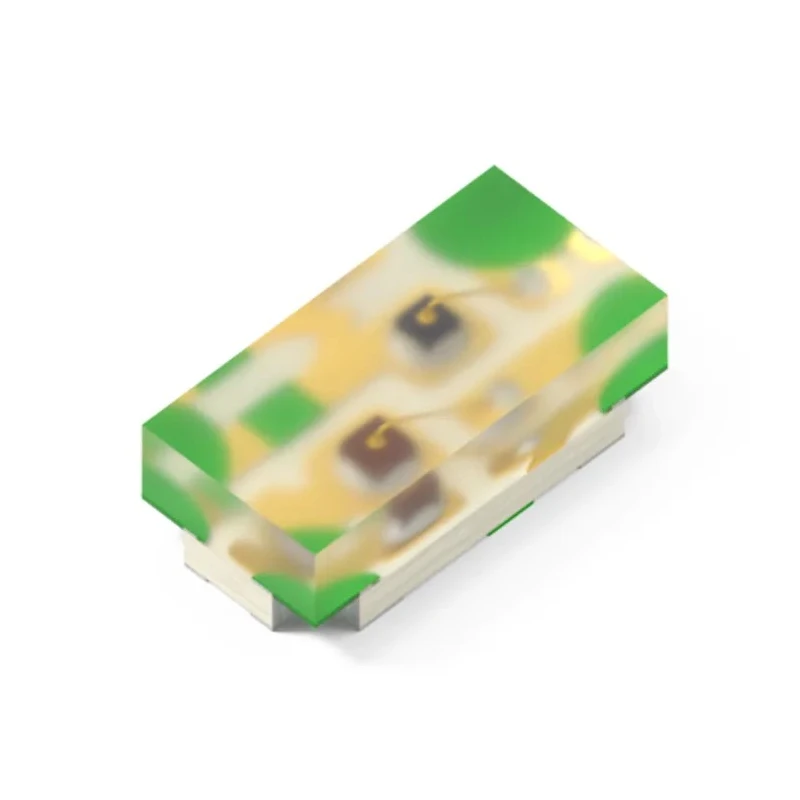

Kingbright 2.1 V Green, Red Bi-Colour LED Surface Mount SMT Package KPHB-1608CGKSURKC-GX

Kingbright KPHB-1608CGKSURKC-GX is a bi-colour green and red Light Emitting Diode (LED) designed for surface mount technology (SMT) applications. The device features two LEDs encapsulated in a tiny 1.6 x 0.8 mm package with a thickness of 0.5 mm, optimized for compact circuitry and efficient lighting solutions.

This LED operates with a forward voltage of 2.1 V and supports a maximum forward current of 30 mA, dissipating up to 75 mW of power. Its wide 130-degree viewing angle ensures broad light dispersion, suitable for indicators and displays needing clear visibility.

Constructed using AlGaInP on GaAs substrate technology, the Hyper Red LED section delivers vivid red coloration, while the green LED complements dual color display requirements. The device includes tinned pads for enhanced soldering reliability, compatible with standard reflow soldering processes. Moisture sensitivity level 3 classification requires controlled storage and handling conditions to maintain LED integrity.

This SMT LED is recommended for industrial electronic components, display panels, signaling devices, and general lighting applications within commercial and industrial sectors. Electrostatic discharge precautions should be observed during handling to prevent damage. The product is RoHS compliant and halogen-free, aligning with environmental regulations.

Bi-colour LED emits green and hyper red light. Compact SMT package measures 1.6 x 0.8 mm with 0.5 mm thickness. Maximum forward current is 30 mA with 75 mW power dissipation. Wide viewing angle of 130 degrees for broad visibility.

Tinned pads ensure improved solderability and compatibility with reflow soldering. Moisture sensitivity level 3 to protect against environmental damage. Manufactured with AlGaInP on GaAs substrate ensuring brightness and reliability.

Electrostatic discharge precautions recommended for handling safety. Supplied in reels of 2000 pieces for volume applications. RoHS compliant and halogen-free ensuring environmental safety.

This Kingbright LED is ideally suited for use in electronic manufacturing, laboratory instrumentation, automotive signaling, industrial displays, and other commercial electronics that require compact, reliable dual-colour LED indicators.
