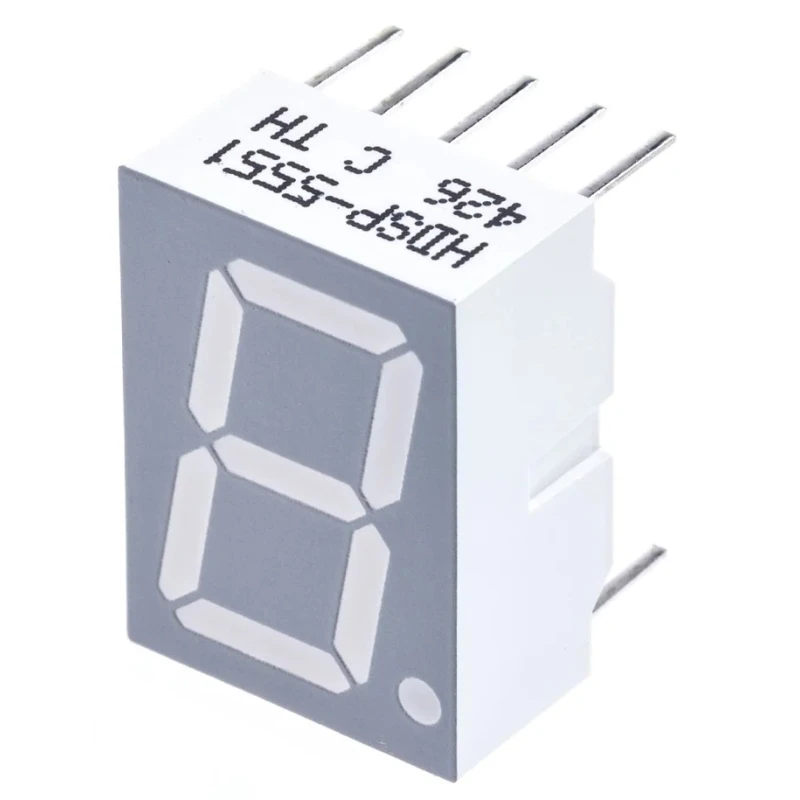

Avago Technologies 1 Digit 7 Segment Red LED Display Anode 1.48mcd 14.2mm HDSP-5551
Specifications
| Country of Origin | India |
|---|---|
| Display Type | 7 Segment |
| Brand | Avago Technologies |
| Model | HDSP-5551 |
| Mount Type | Through Hole |
| Character height | 14.2mm |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 12.6mm |
| External Depth | 8mm |
| External Height | 17mm |
| Luminous Intensity | 1.48mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Colour of Face | Grey |
| Forward Voltage | 1.7V |
| Forward Current | 15mA |
| Number of Characters | 1 |
| Character Width | 7.8mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
| HDSP-5501-GH000 Broadcom 7-Segment LED Display, CA Red 3.7 mcd RH DP 14.2mmBrand | Broadcom |
Key Features
- This LED display has a luminous intensity of 1.48mcd, ensuring clear visibility.
- It operates at a forward voltage of 1.7V and forward current of 15mA.
- Constructed with a grey face color and compatible with through-hole mounting.
- Designed to operate within temperature ranges from -40°C to 100°C for durability.
- The display has external dimensions of 12.6mm width, 17mm height, and 8mm depth.
- Its seven-segment configuration includes 7 individual segments for digit representation.
- Dominant wavelength of the red LED is 626nm for accurate color representation.
Product Description
Avago Technologies HDSP-5551 is a high-quality single-digit 7 segment red LED display designed for industrial and electronic applications requiring digit visualization.
This 7 segment LED display utilizes an anode common connection and has a character height of 14.2mm with a right side decimal orientation, providing versatility in display configurations.
With a luminous intensity of 1.48mcd, it offers excellent visibility even in varying lighting environments. The forward voltage of 1.7V and a forward current of 15mA ensure efficient electrical operation.
The display features a grey face color with through-hole mount type, making it suitable for PCB assembly in electronic equipment. It operates reliably over a wide temperature range from -40°C to 100°C, enabling performance in harsh industrial and environmental conditions.
The compact external dimensions of 12.6mm width, 17mm height, and 8mm depth allow integration into various display modules and electronic devices. The red LED's dominant wavelength is 626nm, ensuring clear and precise red segment illumination.
This product is RoHS compliant, meeting environmental and safety standards for electronic components. This LED display has a luminous intensity of 1.48mcd, ensuring clear visibility. It operates at a forward voltage of 1.7V and forward current of 15mA.
Constructed with a grey face color and compatible with through-hole mounting. Designed to operate within temperature ranges from -40°C to 100°C for durability. The display has external dimensions of 12.6mm width, 17mm height, and 8mm depth.
Its seven-segment configuration includes 7 individual segments for digit representation. Dominant wavelength of the red LED is 626nm for accurate color representation. Ideal for electronic device interfaces, measurement instruments, and control panels in industrial, laboratory, and commercial applications.
