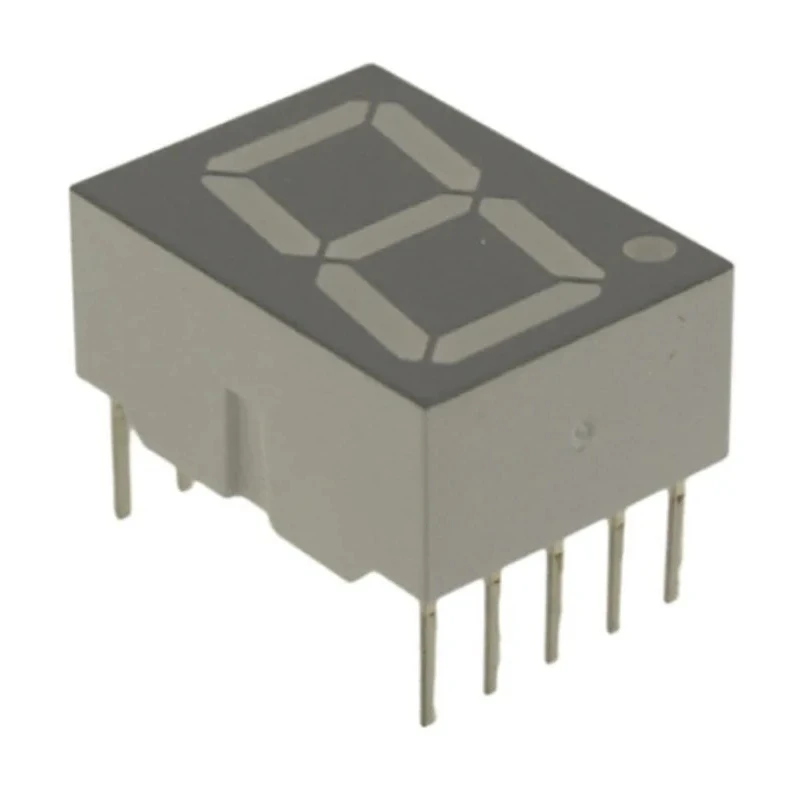

Avago Technologies 1.7 Inch 7-Segment Red LED Display Anode Type Right Side Decimal HDSP-H101

Avago Technologies model HDSP-H101 is a high-quality 1.7 inch 7-segment LED display featuring a common anode configuration and red LED color, designed for electronic applications requiring precise numeric display. This display has a character height of 14.2 mm and a width of 7.8 mm, with a grey faceplate that delivers excellent contrast. It is housed in a compact form factor with physical dimensions of 12.6 mm width, 17 mm height, and 8 mm depth, enabling its integration into a variety of electronic devices.

The display features a luminous intensity of 4.2 millicandela (mcd), producing bright and easily legible digits. It operates within a wide temperature range from -20°C up to 100°C, suitable for industrial and laboratory environments. The forward voltage is rated at 1.7 volts, drawing a forward current of 15 milliamps, making it energy efficient.

The decimal point is oriented on the right side, allowing clear representation in numeric readouts. The device utilizes through-hole mounting for secure PCB attachment. Its dominant wavelength peaks at 637 nm, providing vivid red illumination.

This component complies with RoHS directives, ensuring it meets environmental and safety regulations. Manufactured in Thailand, the HDSP-H101 is ideal for use in industrial automation systems, instrumentation displays, electronics manufacturing, and other sectors requiring robust visual numeric indicators.

Single-digit 7-segment display for clear numeric output. Red LED color and common anode connection for versatility. Compact and durable design for industrial use. Wide operating temperature range supports harsh environments.

Energy efficient with low forward voltage and current. Right side decimal orientation for flexible numeric display needs. Through hole mounting type for easy PCB integration. RoHS compliant for environmental safety standards.
