Kingbright 1 Dot Matrix LED Display Anode Red 90mcd Right Side 17.2 mm TA07-11SURKWA

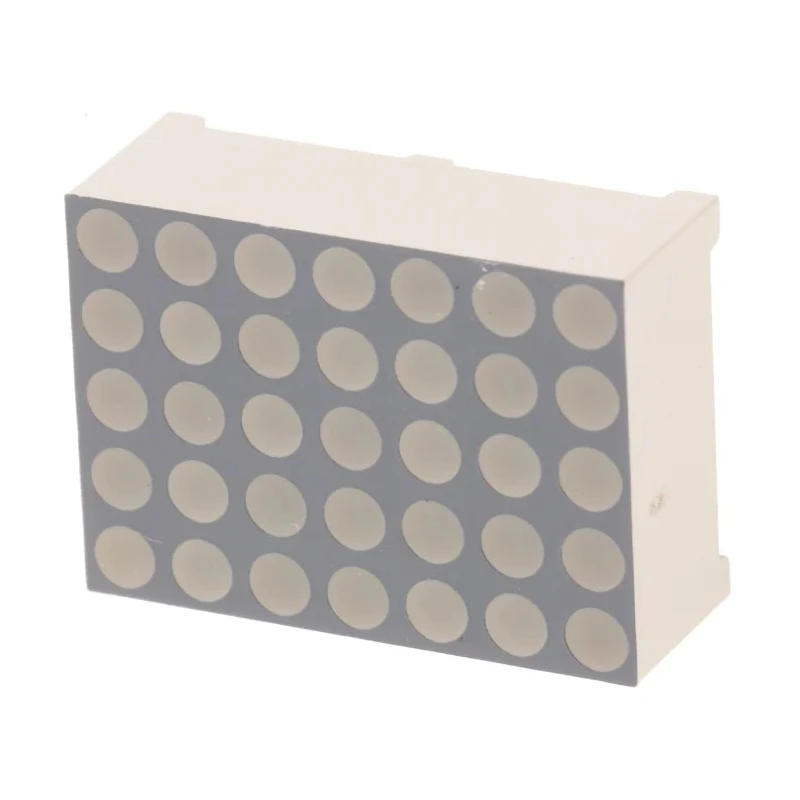

Kingbright TA07-11SURKWA is a high-quality 1 Dot Matrix LED Display designed for reliable alphanumeric display applications. Featuring a red anode LED with a luminous intensity of 90 millicandela, it provides clear visibility and efficient operation. The display character height is 17.2 mm and width 12.5 mm, arranged in a 5 x 7 dot matrix, making it suitable for single digit alphanumeric display needs.

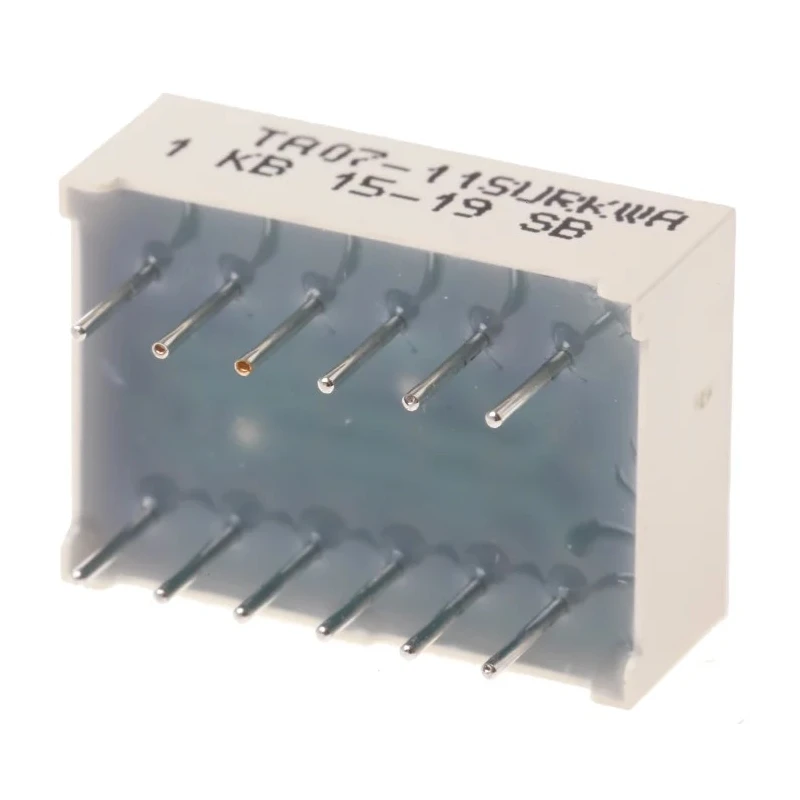

The device uses a through-hole mounting style facilitating convenient PCB assembly in industrial, laboratory, and commercial electronic systems. It operates efficiently within a temperature range of -40°C to 85°C allowing use in challenging environmental conditions.

Its forward voltage rating is 2V at a forward current of 30mA with low power dissipation of 75mW, making it energy-efficient for extended operation. The decimal point oriented on the right side supports accurate numeric representation.

Additional features include a grey face to enhance contrast and a dominant wavelength of 630 nm for brilliant red color emission. The compact external dimensions of 12.7 mm width, 17.8 mm height, and 6.4 mm depth make it ideal for compact electronic devices.

The TA07-11SURKWA complies with RoHS standards, ensuring environmentally safe manufacturing processes and materials. It is ideal for electronic displays in industrial automation, instrumentation panels, HVAC controls, and other commercial electronic applications demanding clear, legible numeric and alphanumeric display modules.

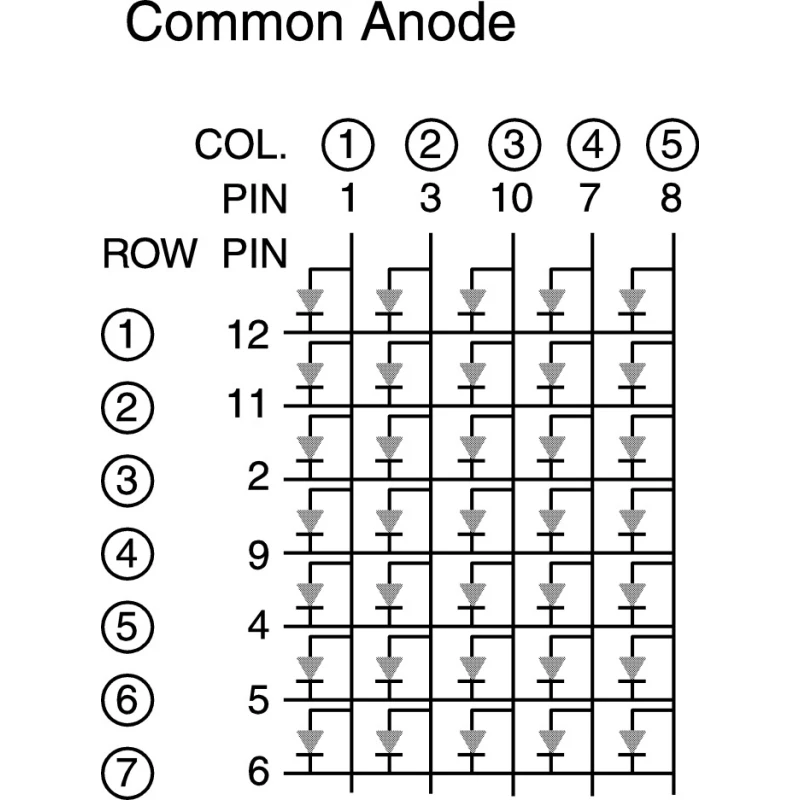

This LED display is a single digit, 5 x 7 dot matrix type with anode common connection. It has a character width of 12.5 mm and a character height of 17.2 mm for clear alphanumeric display. The device supports through-hole mount type for ease of installation.

Its operating temperature ranges from -40°C to 85°C, suitable for various industrial applications. Luminous intensity is rated at 90 millicandela providing bright red display output. The display has a dominant wavelength of 630nm and a grey face color for contrast enhancement.

Power dissipation is 75mW with a forward voltage of 2V and forward current of 30mA. The decimal point is oriented to the right side, useful for numeric displays requiring decimal precision. Its compact dimension of 12.7mm width, 17.8mm height, and 6.4mm depth allows space-saving integration.

Complies with RoHS standards ensuring environmental safety and regulatory compliance. Explore EnvMart for a comprehensive range of LED Display modules and components suitable for your electronic manufacturing and industrial automation requirements.
