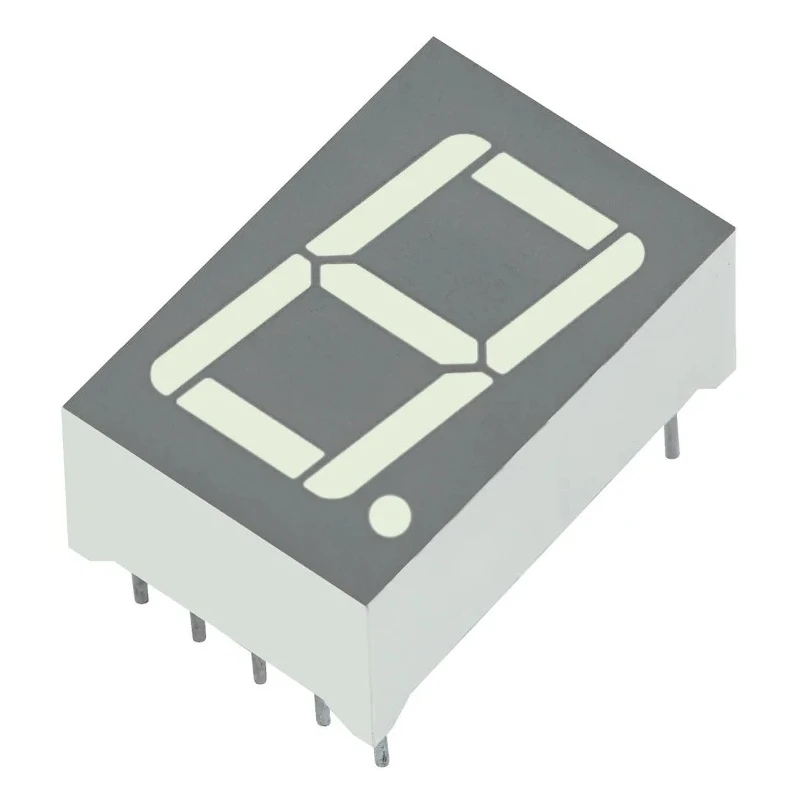

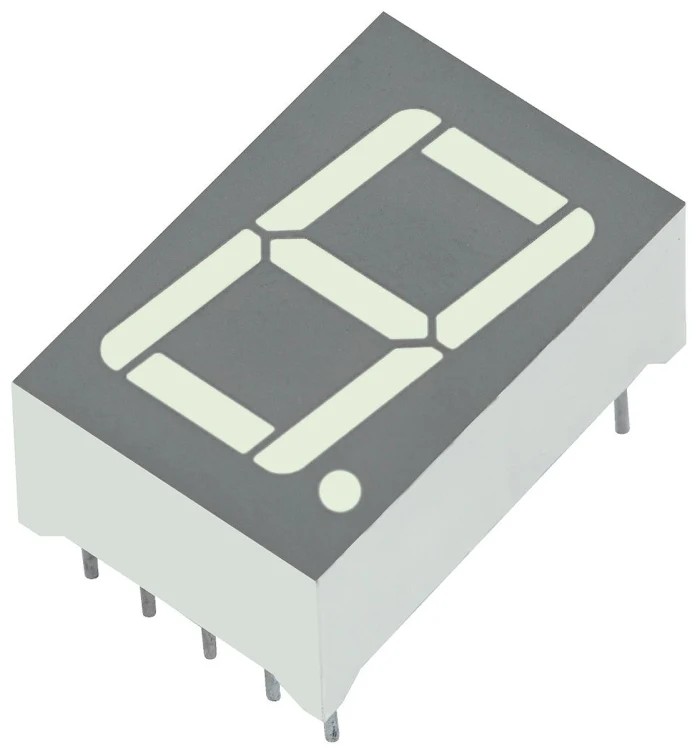

Kingbright 1 Digit 7 Segment LED Display Green 14.2mm Height Cathode, Through Hole SC56-11CGKWA
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | SC56-11CGKWA |
| Mount Type | Through Hole |
| Series | SC56 |
| Character height | 14.2mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 12.7mm |
| External Depth | 19.1mm |
| External Height | 8mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 35mcd |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 570nm |
| Colour of Face | Grey |
| Forward Voltage | 2.5V |
| Forward Current | 150mA |
| Number of Characters | 1 |
| Character Width | 8mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
Key Features
- The display features a single digit with seven segments for clear numeric representation.
- Green LED color with a luminous intensity of 35mcd ensures excellent visibility.
- Character height is 14.2mm and character width is 8mm providing easy readability.
- Designed for through hole mounting and right side decimal orientation for versatile applications.
- Operates within a temperature range of -40°C to 85°C making it suitable for diverse environments.
- Low power consumption with power dissipation of 75mW and forward voltage of 2.5V.
- The product is RoHS compliant, ensuring environmentally safe manufacturing standards.
- Mechanical dimensions are compact with external size 12.7mm width, 8mm height, and 19.1mm depth.
Product Description
Kingbright SC56-11CGKWA is a high-quality 1 digit 7 segment LED display featuring green-colored LED segments with a luminous intensity of 35mcd. This display module uses a cathode common connection and is designed for through hole mounting on PCBs or sockets, enhancing assembly efficiency and robustness.
The character height of 14.2mm and width of 8mm offers excellent readability and clear numeric display suitable for industrial, laboratory, and electronic instrumentation applications. Its compact external dimensions of 12.7mm width, 8mm height, and 19.1mm depth enable integration in space-constrained environments.
Operating reliably between temperatures of -40°C and 85°C, this display ensures dependable performance in harsh conditions. Its low power dissipation of 75mW and typical forward voltage of 2.5V provide energy-efficient operation, which is critical in sensitive electronic systems.
The SC56 series from Kingbright is RoHS compliant, confirming adherence to environmental regulations and manufacturing best practices.
This LED display is mechanically rugged with a grey face and white segments, delivering excellent contrast and visibility. The right side decimal orientation allows flexible use in numeric displays requiring decimal point indication.
The display exhibits excellent visibility with high on/off contrast. It is suitable for applications including industrial control systems, measurement equipment, HVAC controls, and general electronic displays. Easy mounting on PC boards or sockets facilitates rapid, reliable installation.
Designed for use in electronic component assemblies requiring single-digit numeric display. Popular choice for replacement or integration in LED display modules and customized electronic devices. Explore the Electronics & Electricals > Electronics Components > LED Displays category on EnvMart for similar display products and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The character height of this model is 14.2mm, which provides clear readability for numeric representation.
This display features a luminous intensity of 35mcd, ensuring excellent visibility in various lighting conditions.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for diverse environments.
This model is designed for through hole mounting, facilitating easy installation on PCBs or sockets.
The typical forward voltage for this display is 2.5V, which is important for energy-efficient operation.
This LED display features 7 segments, allowing for clear numeric representation.
The external dimensions are 12.7mm in width, 8mm in height, and 19.1mm in depth, making it compact for integration.
This model uses a cathode common connection, which is typical for many LED displays.
Yes, the SC56-11CGKWA is RoHS compliant, ensuring that it meets environmental safety standards.
The LED color of this display is green, which contributes to its visibility and aesthetic appeal.
This LED display is suitable for applications in industrial control systems, measurement equipment, HVAC controls, and general electronic displays.
The power dissipation for this display is 75mW, which indicates its low power consumption during operation.
