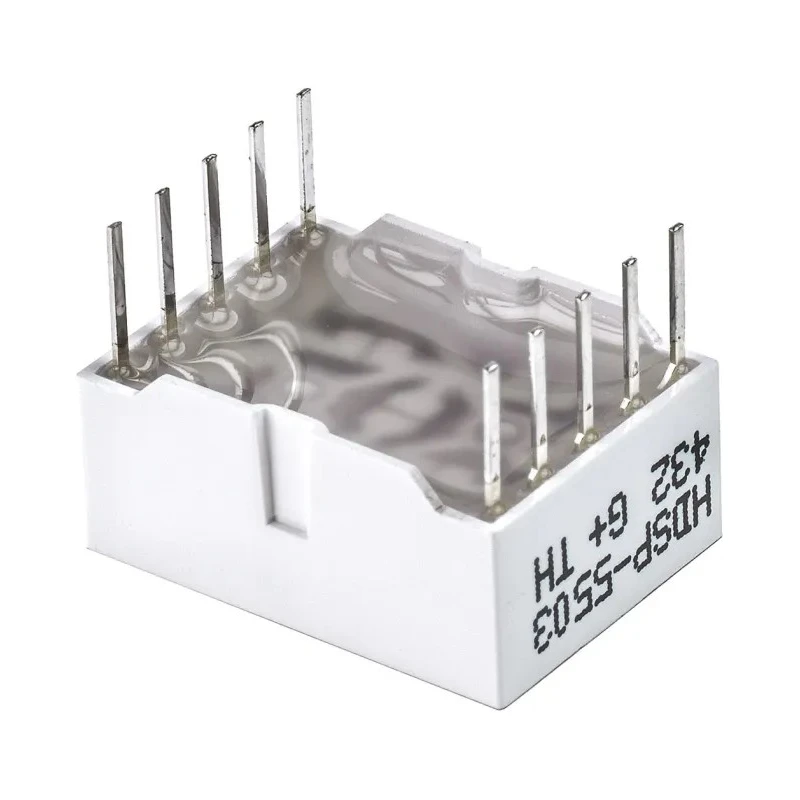

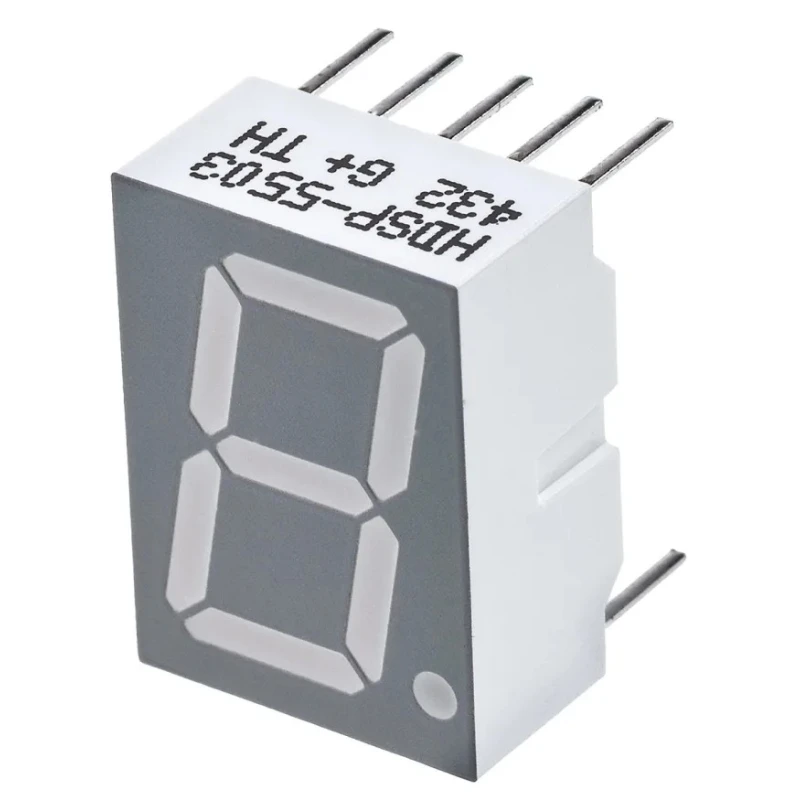

Avago Technologies 1 Digit 7 Segment Red LED Display Cathode 3.7mcd Right Side Decimal HDSP-5503
Specifications
| Country of Origin | India |
|---|---|
| Display Type | 7 Segment |
| Brand | Avago Technologies |
| Model | HDSP-5503 |
| Mount Type | Through Hole |
| Character height | 14.2mm |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 12.6mm |
| External Depth | 8mm |
| External Height | 17mm |
| Luminous Intensity | 3.7mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Colour of Face | Grey |
| Forward Voltage | 2.1V |
| Forward Current | 90mA |
| Number of Characters | 1 |
| Character Width | 7.8mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
| SC56-11PBWA Kingbright 7-Segment LED Display, CC Blue 1.9 mcd RH DP 14.2mmBrand | Kingbright |
Key Features
- Single-digit 7-segment LED display with red colour.
- Cathode common connection for easy integration.
- Character height of 14.2 mm with a character width of 7.8 mm.
- Right side decimal orientation for compact layouts.
- Through hole mounting ensuring stable mechanical connection.
- Operating temperature range from -40°C to 100°C.
- Luminous intensity rated at 3.7mcd for visibility in varied lighting.
- Forward voltage of 2.1 V and forward current of 90 mA.
Product Description
Avago Technologies HDSP-5503 is a high-quality single-digit 7 segment LED display designed for precise numerical presentations in industrial, electronic, and commercial equipment. It features a red LED with a luminous intensity of 3.7mcd, providing clear visibility even in variable ambient lighting conditions.
Constructed with a cathode common connection, this LED display supports through-hole mounting, ensuring durability and reliable electrical contact. The character dimensions are 14.2 mm in height and 7.8 mm in width, making it suitable for tight display panel configurations. Its decimal point is positioned on the right side, ideal for numerical data formatting.
The display operates within a broad temperature range of -40°C to +100°C, making it suitable for harsh industrial environments. It complies with RoHS standards, reflecting its environmental compliance and safety for electronic manufacturing.
This product is widely applicable in digital meters, counters, and instrumentation panel displays within electronics, industrial automation systems, and commercial devices. Single-digit 7-segment red LED display. Cathode common connection for ease of wiring.
Character height of 14.2 mm and width of 7.8 mm. Right side decimal point orientation for clear data visualization. Through hole mount type for robust installation. Operational from -40°C up to 100°C temperature range. Luminous intensity of 3.7mcd for enhanced visibility.
Forward voltage of 2.1 V and forward current of 90 mA. RoHS compliant ensuring environmental safety. Explore our diverse range of LED Displays and electronic components at EnvMart for your industrial and commercial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of the HDSP-5503 is rated at 3.7 mcd, providing visibility in various lighting conditions.
The forward voltage is 2.1 V and the forward current is 90 mA for the HDSP-5503.
The external dimensions of the HDSP-5503 are 12.6 mm in width, 8 mm in depth, and 17 mm in height.
The HDSP-5503 operates within a temperature range of -40°C to +100°C, making it suitable for harsh environments.
This model uses through-hole mounting, ensuring a stable mechanical connection.
The character height is 14.2 mm and the character width is 7.8 mm for the HDSP-5503.
The decimal point of the HDSP-5503 is oriented on the right side, which is suitable for numerical data formatting.
Yes, the HDSP-5503 complies with RoHS standards, indicating its environmental safety for electronic manufacturing.
The HDSP-5503 is a single-digit 7-segment LED display with a red LED.
The common connection for the HDSP-5503 is cathode, which facilitates easy integration into circuits.
This model is widely applicable in digital meters, counters, and instrumentation panel displays within electronics and industrial automation systems.
The dominant wavelength of the red LED in the HDSP-5503 is 626 nm.
