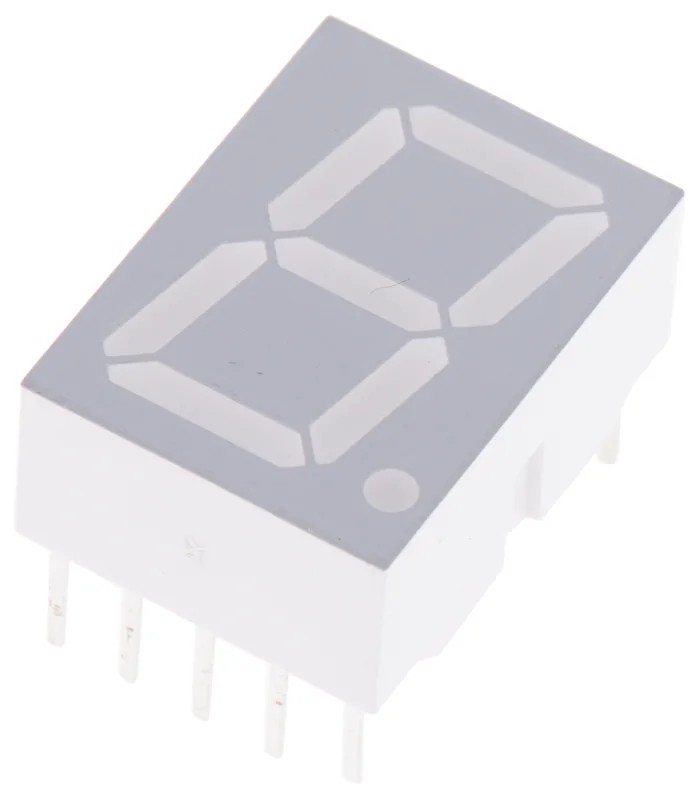

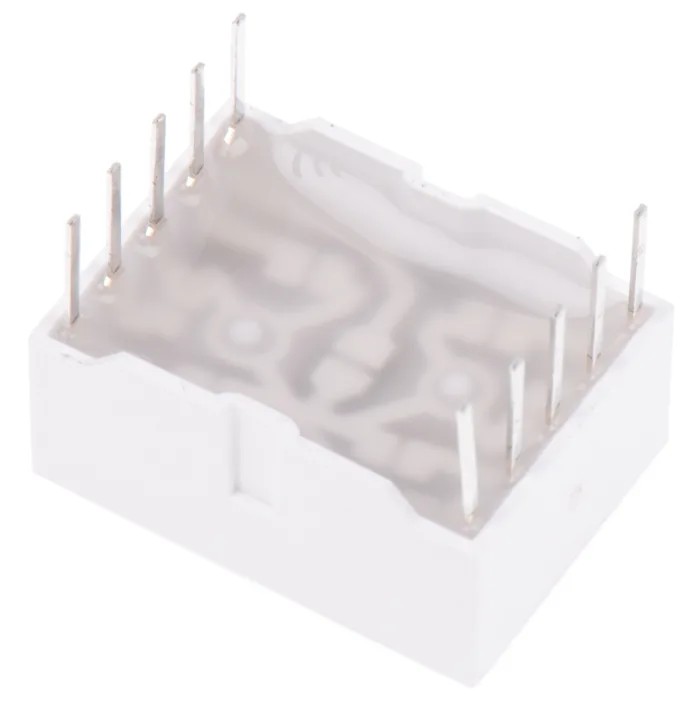

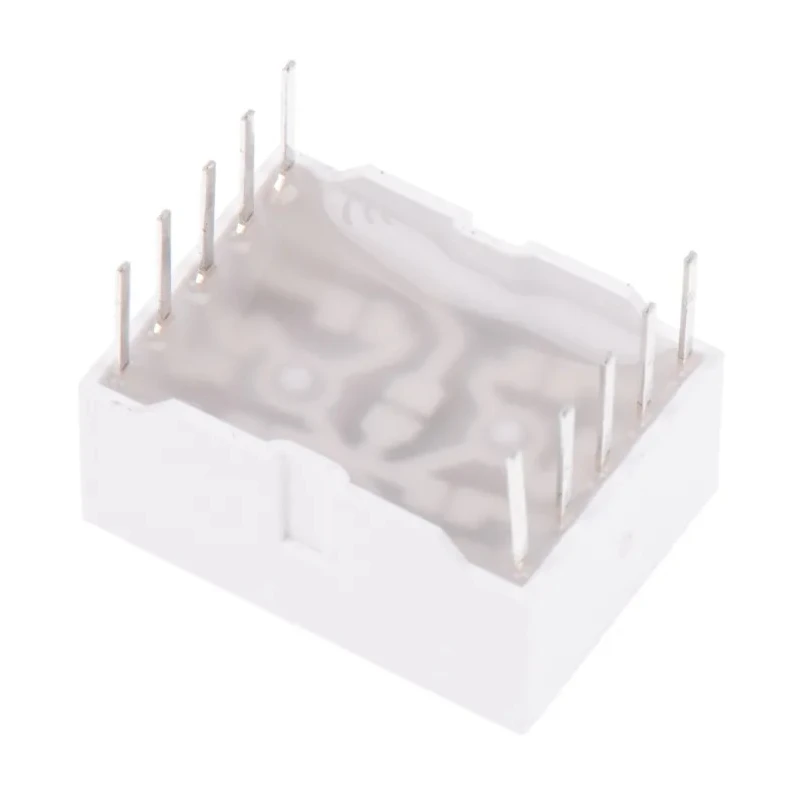

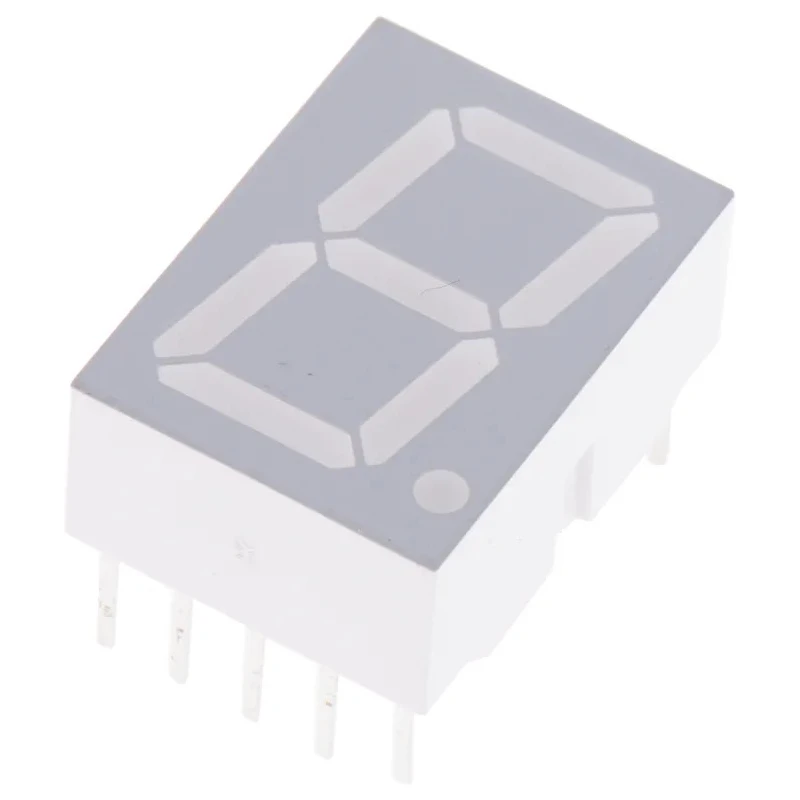

Avago Technologies 1 Digit 7 Segment Red LED Display Cathode 1.48mcd 14.2mm HDSP-5553
Specifications
| Country of Origin | India |
|---|---|
| Display Type | 7 Segment |
| Brand | Avago Technologies |
| Model | HDSP-5553 |
| Mount Type | Through Hole |
| Character height | 14.2mm |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 12.6mm |
| External Depth | 8mm |
| External Height | 17mm |
| Luminous Intensity | 1.48mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Colour of Face | Grey |
| Forward Voltage | 1.7V |
| Forward Current | 15mA |
| Number of Characters | 1 |
| Character Width | 7.8mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
| Broadcom 1 7 Segment LED Display Anode Red 4.2mcd Right Side 14.2 mmBrand | Broadcom |
Key Features
- The display features a 14.2 mm character height and 7.8 mm character width for clear visibility.
- It operates at a forward voltage of 1.7 V with forward current of 15 mA for efficient power consumption.
- Its luminous intensity is 1.48 mcd with a dominant wavelength of 626 nm for bright red illumination.
- The decimal point is oriented on the right side, enhancing numeric readability.
- The display is designed for through-hole mounting and has external dimensions of 17 mm height, 12.6 mm width, and 8 mm depth.
- It supports a wide operating temperature range from -40°C to 100°C, suitable for industrial environments.
- The face color is grey, complementing the red segment display for contrast.
- RoHS compliant, ensuring adherence to environmental standards.
Product Description
Avago Technologies HDSP-5553 is a 7 segment single-digit LED display designed for precise numeric visualization in industrial, electronic components, and automation applications. The display features a cathode common connection and red LED color with a luminous intensity of 1.48 mcd, providing bright and clear digit representation. The character dimensions are 14.2 mm height and 7.8 mm width, making it suitable for compact panel displays requiring visibility at close range.
This LED display accommodates a forward voltage of 1.7 V and a forward current of 15 mA, delivering efficient operation with low power consumption. The decimal point is positioned on the right side, aiding in correct numeric formatting for various electronic readouts. Designed with a through-hole mount, its robust external dimensions (17 mm height, 12.6 mm width, and 8 mm depth) ensure compatibility with standard PCB assemblies.
Operating reliably across a temperature range of -40°C to 100°C, this LED display is fit for use in harsh industrial and commercial environments. The grey face color enhances the contrast and improves legibility of the red illuminated segments. Furthermore, the device complies with RoHS environmental standards, reflecting a commitment to safe and eco-friendly manufacturing.
The product is ideal for use in industrial automation systems, electronic instrumentation, display modules, measurement panels, and digital readouts. It provides a durable and consistent visual output for electronic circuit design requiring numeric display capabilities.
Incorporating this display module supports reliable and high-performance electronic device manufacturing. Its standardized mount and forward electrical characteristics allow easy integration into existing system designs.
Users benefit from high visibility and long service life typical of Avago Technologies LED components. Explore further products in the LED Displays category at EnvMart to find compatible electronic components and related display solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The character height of this display is 14.2 mm, providing clear visibility for numeric representation.
The luminous intensity of the HDSP-5553 is 1.48 mcd, ensuring bright and clear digit representation.
It operates at a forward voltage of 1.7 V and a forward current of 15 mA, allowing for efficient power consumption.
The display can operate reliably within a temperature range of -40°C to 100°C, making it suitable for harsh environments.
This model is designed for through-hole mounting, ensuring compatibility with standard PCB assemblies.
The external dimensions are 17 mm in height, 12.6 mm in width, and 8 mm in depth.
The face color of the display is grey, which enhances the contrast with the red segments for improved legibility.
The dominant wavelength of the red LED in this display is 626 nm, contributing to its bright illumination.
This display features 7 segments, allowing for the representation of numeric values.
The decimal point is oriented on the right side, which aids in correct numeric formatting.
Yes, it is RoHS compliant, ensuring adherence to environmental safety standards.
This model is ideal for use in industrial automation systems, electronic instrumentation, display modules, and digital readouts.
