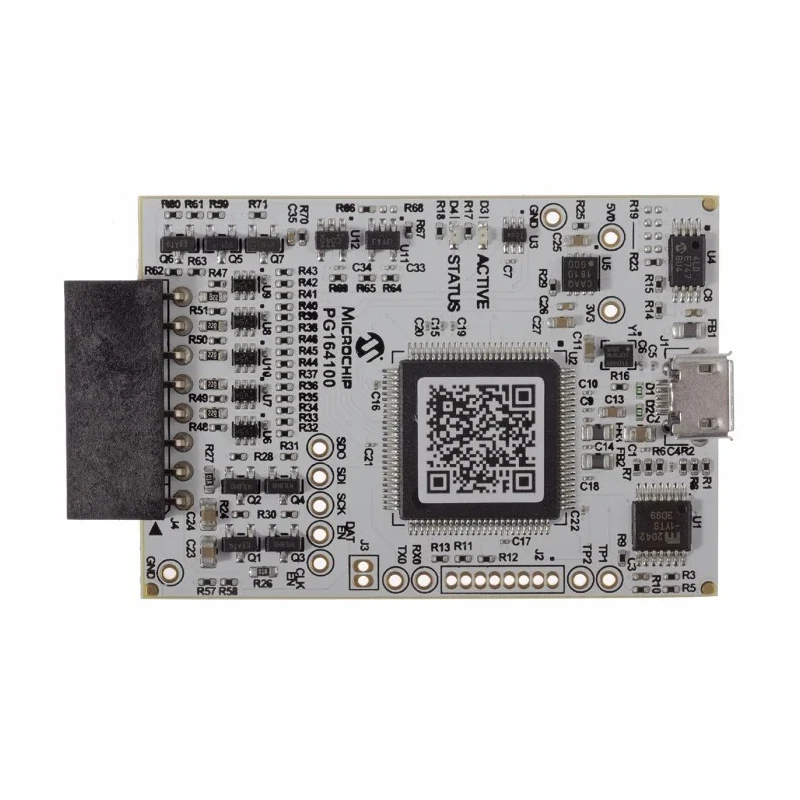

Microchip MPLAB Snap In-Circuit Debugger/Programmer Kit PG164100 USB 2.0 Interface PIC Core Architecture China

Free Delivery in India | Lowest Global Shipping Charges

Microchip MPLAB Snap In-Circuit Debugger/Programmer Kit PG164100 USB 2.0 Interface PIC Core Architecture China

Name: Microchip MPLAB Snap In-Circuit Debugger/Programmer Kit PG164100 USB 2.0 Interface PIC Core Architecture China
Brand: Microchip
SKU: 243783
Price: 25.29 USD
Availability: InStock



Category Debuggers & In-Circuit Emulators Brand Microchip Condition New

Specifications

Country of Origin	China
Brand	Microchip
Model	PG164100
Interfaces	USB 2
Kit Type	MPLAB Snap In-Circuit Debugger/Programmer Kit
Kit Contents	Cable
For Use With	Windows 7 and Later, MAC OSX, Linux Operating System, Intel Pentium PC System
Standards/Approvals	RoHS
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Core Architecture	PIC

Key Features

Supports 4-wire JTAG and serial wire debug with streaming data gateway.
Backward compatible with 2-wire JTAG and ICSP demo boards and target systems.
Features an 8-pin SIL programming connector with multiple interface options.
Connects to computer via high-speed USB 2.0 cable for fast programming.
Compatible with Windows 7 and later, Mac OSX, and Linux operating systems.
Program and debug using MPLAB X IDE or MPLAB IPE software.
Supports target supply voltage ranging from 1.2V to 5.5V for flexible applications.
Complies with RoHS standards and certified to ANSI/ESD and BS EN safety norms.

Product Description

Microchip PG164100 MPLAB Snap In-Circuit Debugger/Programmer Kit is a high-performance programmer featuring a 32-bit 300MHz SAM E70 ARM Cortex-M7 based MCU core architecture. This device facilitates rapid debug iterations and embedded programming in industrial and development environments.

Equipped with an 8-pin SIL programming connector, it supports advanced debugging protocols including 4-wire JTAG and serial wire debug via a streaming data gateway. The kit offers backward compatibility with 2-wire JTAG and ICSP standards, enhancing versatility for legacy and current embedded systems.

The programmer connects to host computers using a high-speed USB 2.0 (480 Mbps) interface, compatible across Windows 7 and later, Mac OSX, and Linux platforms running on Intel Pentium PC systems. It integrates seamlessly with MPLAB X IDE and MPLAB IPE software for streamlined programming and debugging workflows.

The device supports target supply voltage ranges from 1.2V to 5.5V, allowing broad applicability across various embedded hardware designs. Its compact and robust design is suitable for electronics manufacturing, embedded programming labs, and development projects requiring precise control and rapid iteration.

Supports multiple debug interface protocols including 4-wire JTAG and serial wire debug. Backward compatible with 2-wire JTAG and ICSP interfaces for legacy support. High-speed USB 2.0 connectivity ensures fast data transfer and programming.

Compatible with Windows, Mac OSX, and Linux operating systems for cross-platform use. Target supply voltages from 1.2V to 5.5V for flexible hardware compatibility. RoHS compliant and certified to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.

Ideal for embedded system development, electronics manufacturing, and debugging.

This Microchip MPLAB Snap programmer kit represents an essential tool for developers aiming to enhance productivity in embedded programming and debugging tasks. Its combination of performance, compatibility, and standards compliance makes it a reliable choice in professional electronics environments.

Explore more products in the Debuggers & In-Circuit Emulators category on EnvMart for comprehensive solutions in embedded development.

Explore more products in our Debuggers & In-Circuit Emulators category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It features a high-speed USB 2.0 interface for connecting to host computers, ensuring fast data transfer and programming capabilities.

This model is compatible with Windows 7 and later, Mac OSX, and Linux operating systems running on Intel Pentium PC systems.

It supports a target supply voltage range from 1.2V to 5.5V, allowing for flexible applications across various embedded hardware designs.

It supports advanced debugging protocols including 4-wire JTAG and serial wire debug, and is backward compatible with 2-wire JTAG and ICSP standards.

The kit includes a cable for connecting the debugger/programmer to the host computer.

This device is based on the PIC core architecture, specifically featuring a 32-bit 300MHz SAM E70 ARM Cortex-M7 based MCU core.

It complies with RoHS standards and is certified to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 safety norms.

It is designed for embedded system development, electronics manufacturing, and debugging tasks, making it suitable for both industrial and development environments.

The 8-pin SIL programming connector allows for multiple interface options, enhancing the versatility of the debugger/programmer in various applications.

It facilitates rapid debug iterations and embedded programming, streamlining workflows when used with MPLAB X IDE or MPLAB IPE software.

The USB 2.0 interface supports data transfer speeds of up to 480 Mbps, ensuring efficient programming and debugging processes.

The programmer kit requires a host computer running Windows 7 and later, Mac OSX, or Linux on an Intel Pentium PC system for compatibility.
