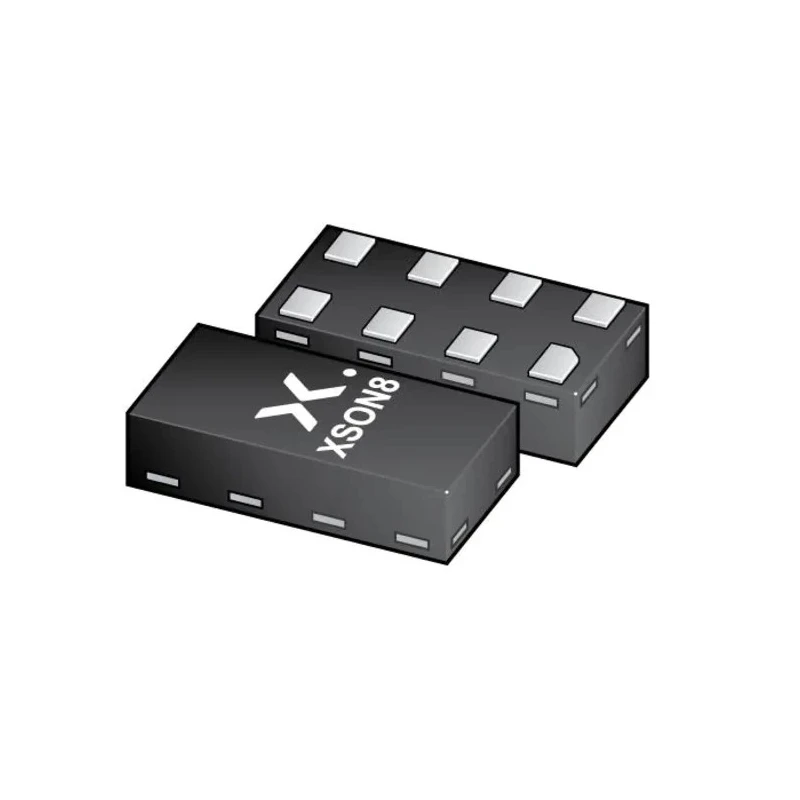

Nexperia Voltage Level Translator 8 Elements Bi-Directional Surface Mount XSON8 Package NXS0102GTX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.05mm |
| Length | 2mm |
| Model | NXS0102GTX |
| Width | 500μm |
| Mount Type | Surface |
| Output type | CMOS |
| Series | NXS0102 |
| Maximum Operating Temperature | 125°C |
| Package Type | XSON8 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | IEC61000-4-2, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 8 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | CMOS |
| Logic Function | Voltage Translation |
| Minimum Supply Voltage | 1.2V |
| Direction Type | Bi-Directional |
| Maximum Low Level Output Current | 50mA |
Key Features
- Features wide supply voltage ranges from 1.2 V to 3.6 V on VCC(A) and 2.3 V to 5.5 V on VCC(B).
- Supports partial power-down mode operation using IOFF circuitry to prevent backflow current.
- Includes two 2-bit input-output ports with auto direction sensing for seamless voltage level translation.
- Operates within temperature range of -40°C to 125°C ensuring reliability in harsh conditions.
- IEC61000-4-2 compliant and RoHS certified for electromagnetic compatibility and environmental safety.
- Outputs CMOS logic with maximum low level output current of 50 mA.
- Suitable for electronic applications including desktop PCs, smartphones, tablets and handsets.
Product Description
The Nexperia NXS0102GTX is a high-performance voltage level translator designed to enable bi-directional voltage translation between multiple supply voltages. It features dual supply pins, VCC(A) and VCC(B), allowing voltage translation between standard nodes such as 1.8 V, 2.5 V, 3.3 V, and 5.0 V. The device supports surface mount technology through its compact XSON8 package, measuring just 2 mm in length and 500 µm in width with a height of 1.05 mm.
Equipped with two 2-bit input-output ports and auto direction sensing capability, the NXS0102GTX facilitates seamless bidirectional communication between circuits operating at different voltage levels. The output enable (OE) pin controls output state, allowing for high-impedance OFF states to conserve power or isolate signals.
This voltage level translator operates over a wide supply voltage range, with VCC(A) supporting 1.65 V to 3.6 V and VCC(B) supporting 2.3 V to 5.5 V. It is fully rated for operation between -40°C and 125°C, making it suitable for a wide range of industrial, consumer electronics, and telecommunication applications. The device includes IOFF circuitry, which disables outputs during partial power-down, preventing backflow currents and protecting device integrity.
The NXS0102GTX is compliant with IEC61000-4-2 standards, offering robust electrostatic discharge (ESD) protection. It is RoHS certified, meeting environmental directives for hazardous substances. The device outputs CMOS logic signals with a maximum low-level output current rating of 50 mA.
Wide voltage supply ranges supporting flexible voltage domains. Auto direction sensing for bidirectional voltage level translation. High ESD protection and environmental compliance. Compact surface mount XSON8 package ideal for space-constrained applications.
Reliable operation in extreme temperature environments. Low power consumption with partial power-down capability. Supports multiple applications including PC peripherals, handsets, smartphones, and tablets.
This voltage level translator is ideal for industrial electronics, telecommunications, computer peripherals, and consumer electronic devices requiring voltage compatibility between different circuits. EnvMart customers benefit from this trusted Nexperia component for reliable and efficient voltage translation solutions.
Explore more products in our Voltage Level Shifter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a temperature range of -40°C to 125°C, ensuring reliability in harsh conditions.
It supports a wide supply voltage range with VCC(A) from 1.2 V to 3.6 V and VCC(B) from 2.3 V to 5.5 V.
The device includes two 2-bit input-output ports, facilitating seamless voltage level translation.
It outputs CMOS logic signals with a maximum low-level output current of 50 mA.
This voltage level translator comes in a compact XSON8 package, measuring 2 mm in length, 500 µm in width, and 1.05 mm in height.
Yes, it is compliant with IEC61000-4-2 standards and is RoHS certified for environmental safety.
The NXS0102GTX features a bi-directional direction type, allowing for voltage translation in both directions.
The maximum operating voltage for VCC(A) is 3.6 V.
It is suitable for various electronic applications including desktop PCs, smartphones, tablets, and handsets.
The minimum supply voltage for VCC(B) is 2.3 V.
Yes, it includes IOFF circuitry that allows for partial power-down mode operation to prevent backflow current.
The NXS0102GTX is manufactured in India.
