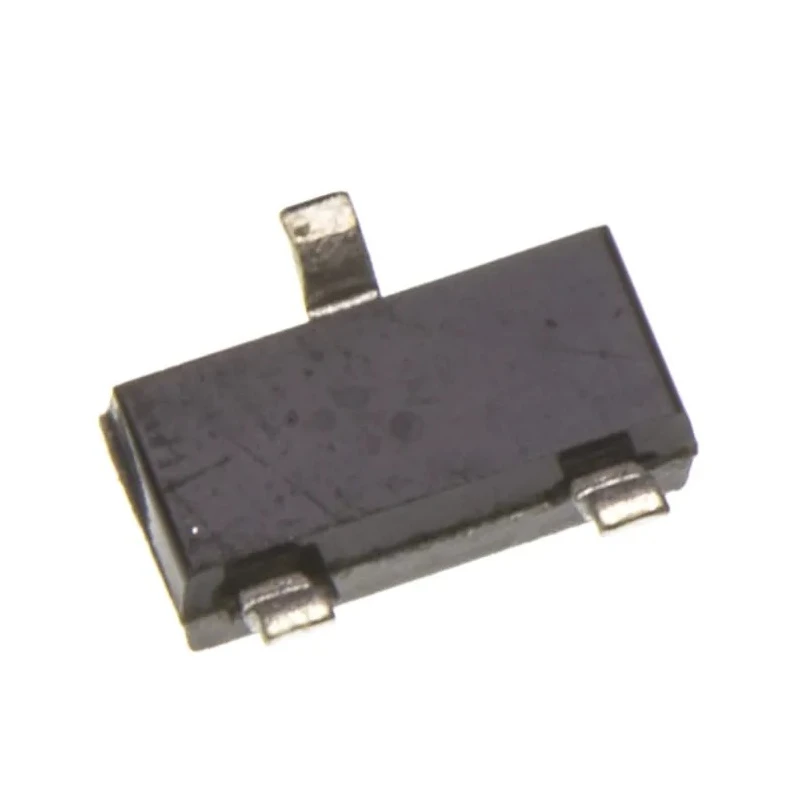

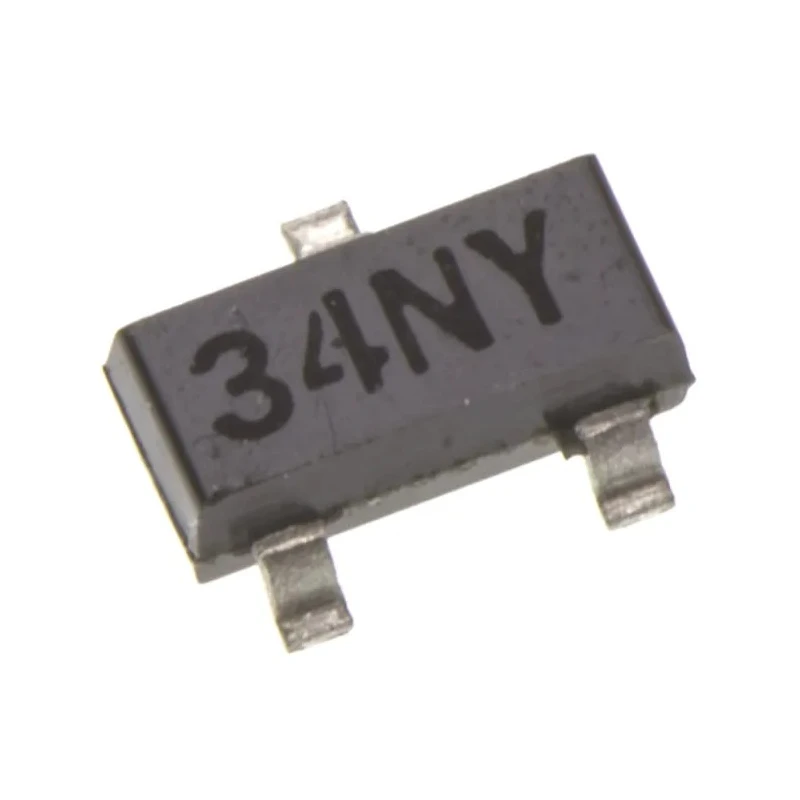

STMicroelectronics Low Power Voltage Detector 3-Pin SOT-23, 3.468 V Reset Threshold STM1061N34WX6F

STMicroelectronics STM1061N34WX6F Low Power Voltage Detector is a 3-pin surface mount device in a SOT-23 package measuring 3.04 mm length, 1.4 mm width, and 1.12 mm height. It provides accurate voltage reset supervision with a threshold voltage of 3.468 V and monitors a single supervisor voltage of 1.6 V.

This device operates reliably between minimum and maximum temperatures of -40°C and 85°C and a supply voltage range from 700 mV to a maximum of 6 V. Its active low, open drain output driver asserts a low output when the monitored supply voltage falls below the reset threshold voltage plus hysteresis.

The STM1061 series Voltage Detectors are essential for microprocessor power management applications, providing power-on reset functionality without manual reset or watchdog timer features. The compact SOT-23 package facilitates surface mounting on printed circuit boards used in consumer electronics, industrial instruments, and computing equipment.

Operates between -40°C and 85°C ambient temperature. 3-pin SOT-23 package with compact dimensions. Low power consumption voltage detector with accurate reset threshold voltage。. Suitable for microprocessor supply voltage supervision and reset circuits.

Active low output with open drain configuration. Designed for use in power management IC applications. No manual reset or watchdog timer functionality included.

This voltage detector is widely used in electronic power management circuits, industrial control, computing devices, and instrumentation requiring precise voltage monitoring and reset timing. It enhances system stability by ensuring microprocessors are reset during undervoltage conditions.

EnvMart offers this product with detailed specifications, suitable for electronics engineers and designers seeking reliable power supervision components.
