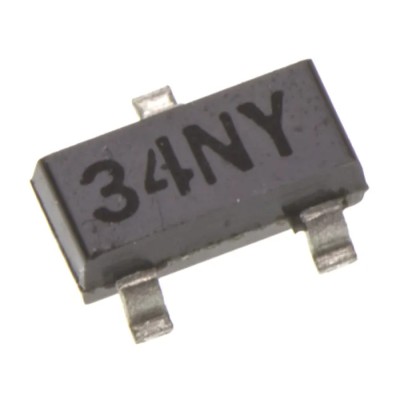

STMicroelectronics Low Power Voltage Detector 3-Pin SOT-23 3.06 V STM1061N30WX6F

STMicroelectronics STM1061N30WX6F is a low power voltage detector IC designed to monitor the supply input voltage and provide an automatic reset timing for microprocessor systems. Housed in a compact 3-pin SOT-23 surface mount package, it is engineered for use in power management and supervisory circuits across various industrial and electronic applications.

The device continuously monitors a single voltage rail with a monitored voltage of 1.6 V. When the input supply voltage drops below the preset reset threshold of 3.06 V, the output is driven low and held active until the voltage rises above the threshold plus hysteresis, ensuring stable and reliable reset signals. Its open drain, active low output driver supports straightforward system integration.

This voltage detector operates with a minimum supply voltage of 700 mV and can handle a maximum voltage of 6 V, making it suitable for use in battery-powered equipment, desktop power supplies, laptops, and multiple-output power systems. The device provides robust operation over a wide temperature range from -40°C to 85°C, ensuring dependable performance in demanding environments.

The compact dimensions (1.12 mm height, 3.04 mm length, 1.4 mm width) of the SOT-23 package make this IC ideal for space-constrained PCB designs. With no manual reset or watchdog timer features, the STM1061N30WX6F focuses purely on precise voltage detection and reset signaling.

This voltage detector is widely applicable in microprocessor supervisory circuits, power supply supervision, and embedded system reset functionalities across industrial machines, consumer electronics, and portable devices. It aids in protecting critical electronics by ensuring timely and accurate detection of undervoltage conditions.

Monitors supply voltage and provides reset timing for microprocessor systems. Low power operation with minimum supply voltage of 700 mV. Open drain, active low output for easy integration. Compact SOT-23 surface mount package for space-saving.

Wide operational temperature range from -40°C to 85°C. Single voltage supervisor with 1.6 V monitored voltage. Reset threshold set at 3.06 V for precise triggering. Suitable for battery-powered and multiple-output power supplies.
