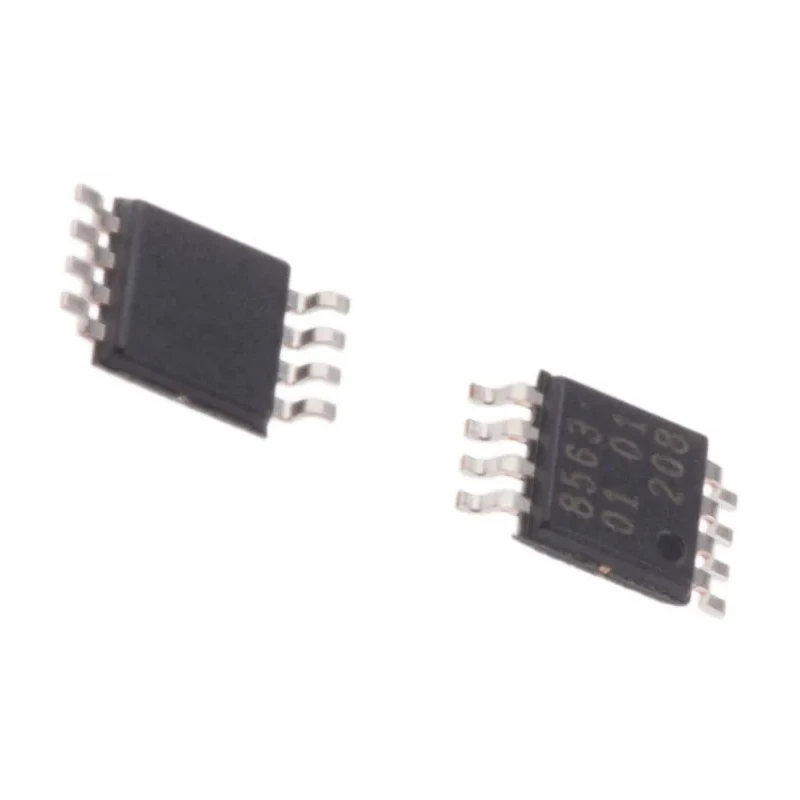

NXP Real Time Clock 128 bit DW:DM:M:Y, 8-Pin TSSOP Surface PCF8563TS/4,118

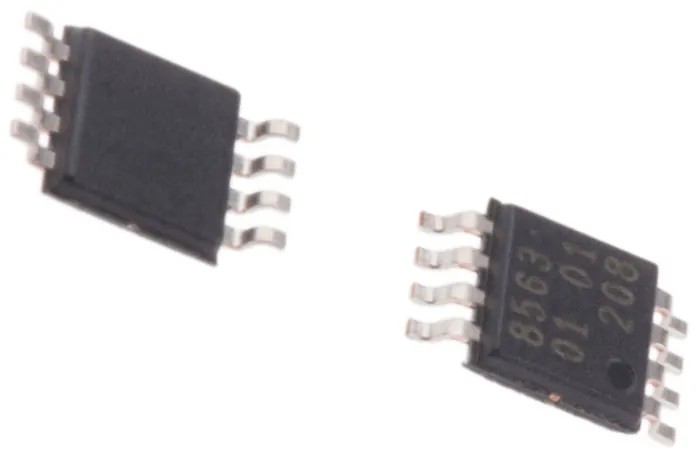

NXP PCF8563TS/4,118 Real Time Clock features a 128-bit memory to maintain date and time data with format DW:DM:M:Y and time in HH:MM:SS. This device is housed in an 8-Pin TSSOP surface mount package measuring 3.1mm in length and width, and 0.95mm in height, making it suitable for compact electronic designs. It utilizes an I2C interface for straightforward communication with microcontrollers.

Operating across temperatures from -40°C to 85°C, this RTC is well-suited for industrial, electronics manufacturing, embedded systems development, and other commercial applications requiring precise timekeeping under varied environmental conditions. The device operates efficiently between a supply voltage range of 1.8V to 5.5V, supporting a wide array of power designs.

This model, PCF8563TS/4,118, does not carry automotive standards or approvals but remains a reliable choice for general electronics use. Features 128-bit RTC memory supporting date format DW:DM:M:Y. Operates via I2C interface facilitating easy integration.

Compact 8-Pin TSSOP surface mount package. Wide temperature operability from -40°C to 85°C. Supports standard time format HH:MM:SS. Voltage operation from 1.8V to 5.5V. Compact dimensions allow use in space-constrained circuits.

This real time clock IC is essential for embedded electronics applications, industrial control systems, and any project requiring a dependable clock with memory retention. Whether in manufacturing or laboratory environments, this component ensures synchronization and accurate timing.
