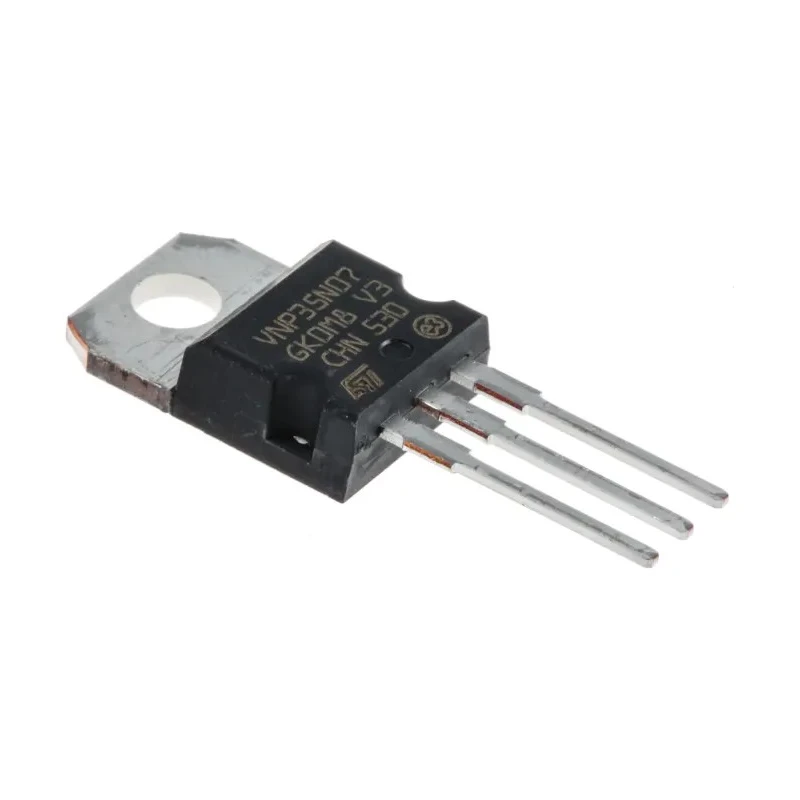

STMicroelectronics High Side OMNIFET Fully Auto Protected Power MOSFET Power Switch IC 3-Pin TO-220 VNP35N07-E
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 15.75mm |
| Length | 10.4mm |
| Model | VNP35N07-E |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Power Rating | 125W |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Operating Current | 35A |
| Pin Count | 3 |
| Maximum Supply Voltage | 70V |
| Switch On Resistance RdsOn | 0.028Ω |
| OMNIFET | Fully Auto protected Power MOSFET |
| STMicroelectronics High Side, OMNIFET | Fully Auto protected Power MOSFET Power Switch IC 3-Pin, TO-220 |
Key Features
- The device provides low switch on resistance of 0.028 ohms ensuring efficient power management.
- It supports a power rating of 125 watts suitable for high power applications.
- Operates at a maximum supply voltage of 70 volts and an operating current of 35 amperes.
- Designed for through-hole mount with a compact 3-pin TO-220 package for easy integration.
- Offers protection features including linear current limitation, thermal shutdown, short circuit, and ESD protection.
- Suitable for automotive and industrial use with a wide temperature range from -55°C to above ambient.
Product Description
STMicroelectronics VNP35N07-E is a high side OMNIFET power MOSFET power switch IC, designed with fully automatic protection features for enhanced reliability in demanding environments. This device operates in a 3-pin TO-220 through-hole package, optimized for efficient power management with a low Rds(on) of just 0.028 ohms and a power rating of 125W.
It supports a maximum supply voltage of 70V and a continuous operating current of 35A, making it suitable for switching inductive or resistive automotive and industrial loads. The integrated protections include linear current limitation, thermal shutdown, short circuit protection, and electrostatic discharge (ESD) safeguards, ensuring robust operation under adverse conditions.
The device's compact dimensions (10.4 mm length, 15.75 mm height, and 4.6 mm width) allow for flexible PCB designs and reliable mounting. Its rugged design and protective features make it widely applicable in industrial, automotive, and electronic control systems.
The device features low switch on resistance for high efficiency. Robust fully automatic protection mechanisms enhance device durability. Through-hole TO-220 package facilitates easy mounting and heat dissipation. Wide operating temperature range from -55°C supports harsh environments.
Applicable for automotive high side driver and power management circuits. Electrical and thermal protections improve system safety and reliability. Compact physical dimensions for versatile application integration.
This STMicroelectronics power switch IC is an excellent choice for industrial, automotive, HVAC, and manufacturing applications where reliable high current switching is required. Explore more power management components and semiconductor devices with EnvMart for comprehensive industrial solutions.
Explore more products in our Power Switch ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 70 volts.
It supports a continuous operating current of 35 amperes.
The device has a power rating of 125 watts, making it suitable for high power applications.
The switch on resistance (Rds(on)) is 0.028 ohms, ensuring efficient power management.
The dimensions are 10.4 mm in length, 15.75 mm in height, and 4.6 mm in width.
It is designed for through-hole mounting, specifically in a TO-220 package.
It offers linear current limitation, thermal shutdown, short circuit protection, and ESD protection.
The minimum operating temperature is -55°C, allowing it to function in harsh environments.
This model is suitable for automotive and industrial applications, particularly in high side driver and power management circuits.
This power switch IC features a total of 3 pins.
The OMNIFET designation indicates that it is a fully auto protected power MOSFET, enhancing reliability in demanding environments.
The country of origin for this product is India.
