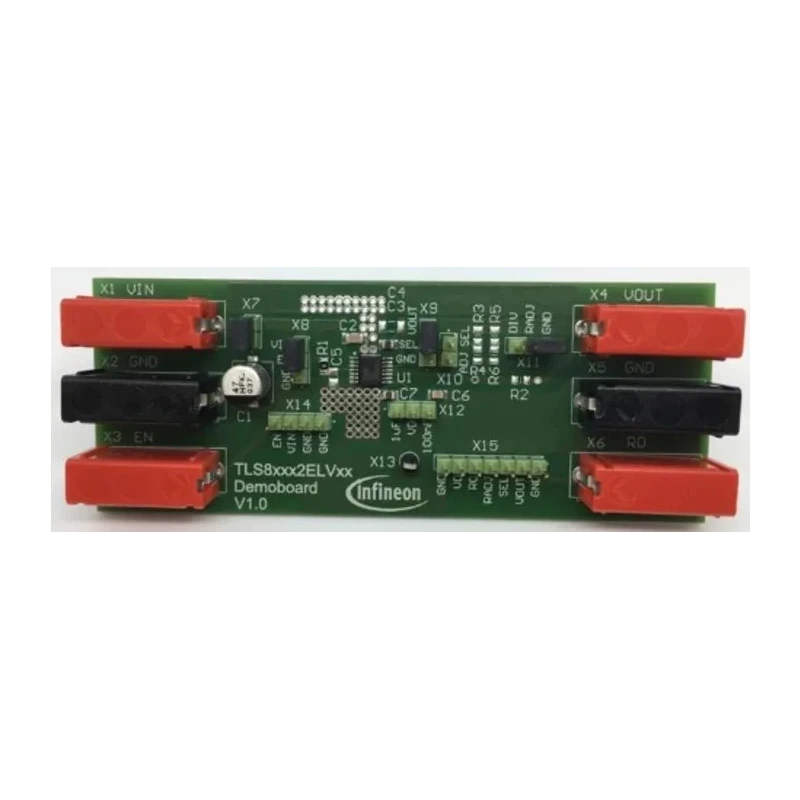

Infineon Demo Board LDO Voltage Regulator for TLS835 Linear Voltage Regulator, Microcontroller Application TLS820B2ELVSE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | TLS820B2ELVSE |
| For Use With | Microcontroller, Low Quiescent Current LDO TLS820B2ELVSE |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | TLS835 Linear Voltage Regulator |
| Kit Name | TLS820B2ELVSE BOARD |
Key Features
- This demo board supports easy configuration of output voltage selectable between 3.3V and 5V.
- Suitable for automotive ECUs, body control modules, and HVAC systems requiring enable feature.
- Includes enable function, over temperature shutdown, and output current limitation features.
- Plug and play design with all necessary external components pre-mounted for quick evaluation.
- Demoboard allows assessment of SEL pin functionality and device performance.
- Qualified to AEC-Q100 standard for automotive quality and reliability.
- RoHS compliant ensuring environmentally safe components.
Product Description
Infineon TLS820B2ELVSE demo board provides a practical evaluation platform for the TLS835 linear voltage regulator, optimized for microcontroller applications that require low quiescent current and automotive-grade reliability. The TLS820 is expressly designed for electronic control units (ECUs) connected to automotive batteries, typically used in body control modules and HVAC applications that necessitate an enable feature.
This demo board features a plug and play setup with all essential external components pre-installed, facilitating immediate testing and configuration without requiring additional hardware assembly.
The output voltage of the regulator can be selected by connecting the SEL pin to either the input voltage or ground, enabling operation at either 5V or 3.3V, respectively. This feature enables designers to easily verify the device’s responsiveness under various configurations and validate the SEL pin functionality.
Safety and performance features include enable control, over temperature shutdown protection, and output current limitation, ensuring robust operation in demanding automotive environments.
The demo board is compliant with the AEC-Q100 automotive quality standard and RoHS directives, making it suitable for integration into early design phases of automotive ECUs and related systems.
Ideal for use in industrial, automotive, and embedded systems development, this evaluation board streamlines the process of integrating the TLS835 LDO voltage regulator within microcontroller-based applications.
This demo board supports easy configuration of output voltage selectable between 3.3V and 5V. Suitable for automotive ECUs, body control modules, and HVAC systems requiring enable feature. Includes enable function, over temperature shutdown, and output current limitation features.
Plug and play design with all necessary external components pre-mounted for quick evaluation. Demoboard allows assessment of SEL pin functionality and device performance. Qualified to AEC-Q100 standard for automotive quality and reliability.
RoHS compliant ensuring environmentally safe components. Explore more power management and development tools available in EnvMart for advanced electronics engineering projects.
Explore more products in our Development Board category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The demo board allows for easy configuration of output voltage, selectable between 3.3V and 5V by connecting the SEL pin to either the input voltage or ground.
This demo board is suitable for automotive electronic control units (ECUs), body control modules, and HVAC systems that require an enable feature.
The evaluation board includes features such as enable control, over temperature shutdown protection, and output current limitation to ensure robust operation in demanding environments.
The country of origin for this demo board is India.
This demo board is compliant with the AEC-Q100 automotive quality standard and RoHS directives, ensuring it meets automotive quality and environmental safety requirements.
The demo board comes with all necessary external components pre-mounted, facilitating quick evaluation without the need for additional hardware assembly.
It is designed for microcontroller applications that require low quiescent current and automotive-grade reliability, specifically optimized for the TLS835 linear voltage regulator.
The kit classification of this product is an Evaluation Board.
The model number of this demo board is TLS820B2ELVSE.
Yes, the evaluation board is also ideal for use in industrial, automotive, and embedded systems development.
The plug and play design allows for immediate testing and configuration, as all essential external components are pre-installed, simplifying the evaluation process.
