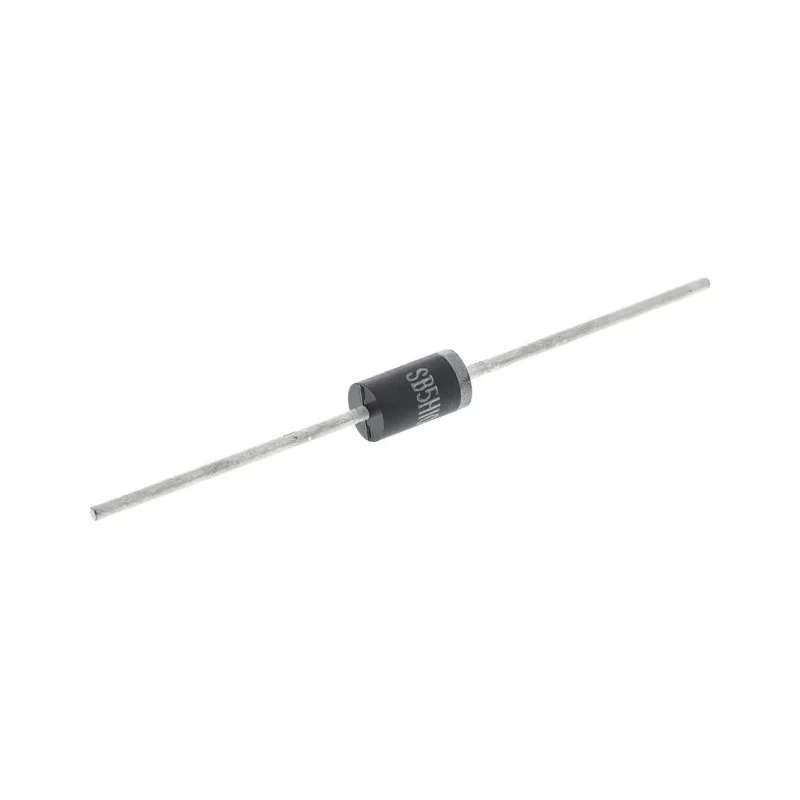

Vishay Schottky Diode 100 V 5 A 2-Pin DO-201AD SB5H100-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Length | 9.5mm |
| Model | SB5H100-E3/54 |
| Mount Type | Through Hole |
| Series | SB5H100 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 800mV |
| Vishay 80V 5A, Schottky Diode, 2-Pin DO-204AR VS-50SQ080Brand | Vishay |
Key Features
- High performance Schottky rectifier diode for fast switching applications.
- Maximum continuous forward current of 5 A ensuring reliable operation.
- Low forward voltage drop of 800mV reduces power loss.
- Peak reverse repetitive voltage of 100 V for robust voltage handling.
- Operating temperature range from -55°C to 175°C suitable for harsh environments.
- Peak non-repetitive forward surge current of 200 A for transient robustness.
- 2-pin single diode configuration ideal for discrete semiconductor applications.
- Manufactured in China maintaining quality standards.
Product Description
Vishay SB5H100-E3/54 Schottky Diode is a high-performance semiconductor rectifier designed for fast switching and low power loss. It features a low forward voltage drop of 800mV and supports a maximum continuous forward current of 5 A, making it suitable for diverse electronic and industrial applications.
This diode comes in a through-hole 2-pin DO-201AD package, measuring 9.5 mm in length and 5.3 mm in diameter, facilitating easy mounting on printed circuit boards. Its peak reverse repetitive voltage is rated at 100 V, while it can withstand peak non-repetitive surge currents up to 200 A, ensuring reliability in transient conditions.
The diode operates efficiently over a wide temperature range from -55°C to 175°C, which supports its use in demanding environments such as power supply circuits, switching power systems, and voltage clamping applications.
Schottky Diodes like the SB5H100-E3/54 are particularly valuable in applications requiring quick switching speed and minimal power dissipation, contributing to improved circuit efficiency. This product is part of Vishay’s SB5H100 series of semiconductor rectifiers, recognized for quality and performance.
High performance Schottky rectifier diode for fast switching applications. Maximum continuous forward current of 5 A ensuring reliable operation. Low forward voltage drop of 800mV reduces power loss. Peak reverse repetitive voltage of 100 V for robust voltage handling.
Operating temperature range from -55°C to 175°C suitable for harsh environments. Compact dimensions: length 9.5 mm and diameter 5.3 mm for space-saving PCB design. Peak non-repetitive forward surge current of 200 A for transient robustness.
2-pin single diode configuration ideal for discrete semiconductor applications. Manufactured in China maintaining quality standards.
This Vishay Schottky diode is well-suited for industrial, electronic component, power supply, and semiconductor applications where efficiency and reliability are critical. Explore more Vishay semiconductor products and related components in EnvMart’s comprehensive catalogue.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 5 A, ensuring reliable operation in various applications.
This model has a peak reverse repetitive voltage rating of 100 V, allowing it to handle robust voltage conditions.
The diode operates efficiently over a temperature range from -55°C to 175°C, making it suitable for harsh environments.
The diode comes in a DO-201AD package with a length of 9.5 mm and a diameter of 5.3 mm, facilitating easy mounting on PCBs.
The maximum forward voltage drop is 800 mV, which helps reduce power loss during operation.
This model can withstand a peak non-repetitive forward surge current of 200 A, providing transient robustness.
It features a through-hole mounting type, which is ideal for discrete semiconductor applications.
This diode has a pin count of 2, making it a single diode configuration for easy integration.
It is classified as a Schottky rectifier, known for fast switching and low power loss characteristics.
The diode is manufactured in China, adhering to quality standards.
The peak reverse current is rated at 10 mA, indicating its performance under reverse voltage conditions.
This diode is suitable for power supply circuits, switching power systems, and voltage clamping applications due to its fast switching speed and low power dissipation.
