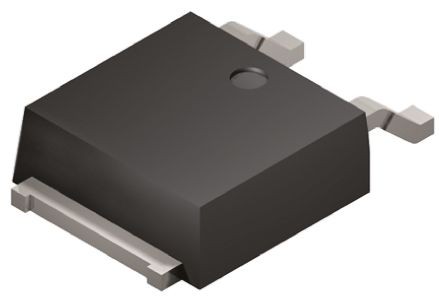

onsemi Schottky Diode 40 V 3 A Surface Mount, TO-252, Switching, Single, 3-Pin DPAK MBRD340T4G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.38mm |
| Length | 6.73mm |
| Model | MBRD340T4G |
| Width | 6.22mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 0.7V |
Key Features
- Schottky barrier rectifier optimized for high-speed switching applications.
- Maximum continuous forward current rating of 3 amperes.
- Peak repetitive reverse voltage support up to 40 volts.
- Low forward voltage drop with a maximum of 0.7 volts for improved efficiency.
- Surface mount DPAK (TO-252) package ensures compact design and ease of assembly.
- Three-pin single diode configuration suitable for board-level integration.
- Permits high peak non-repetitive surge current of 75 amperes.
- Wide operating temperature range from -65°C to 175°C.
Product Description
The onsemi MBRD340T4G is a high-efficiency Schottky barrier rectifier diode designed for low voltage, high-frequency switching and rectification tasks in modern power electronics circuitry. Engineered with a metal barrier to minimize forward voltage drop, this device is ideal for compact power conversion and protection applications where board space and conduction losses are critical factors.
This diode supports a maximum continuous forward current of 3 amperes and a peak repetitive reverse voltage of 40 volts, making it suitable for use in switching power supplies, freewheeling applications, and polarity protection circuits on surface-mount PCBs. With a low maximum forward voltage of 0.7 volts, it ensures minimal power dissipation during operation, contributing to overall system efficiency.
The MBRD340T4G comes in a TO-252 (DPAK) surface-mount package, known for its compact form factor and fast, reliable assembly in automated manufacturing environments. It features a single diode configuration with three pins and is capable of handling non-repetitive forward surge currents up to 75 amperes. The reverse leakage is limited to a peak of 200 microamperes, supporting precise and safe operation.
Its robust construction allows operation in harsh environments, with a wide temperature range from -65°C to 175°C, and it is automotive qualified to the AEC-Q101 standard. The epoxy-molded case further enhances reliability, while the lightweight package makes it suitable for high-density mounting.
The onsemi MBRD340T4G serves vital roles in industrial, commercial, and automotive electronics, including use in power management modules, DC-DC converters, freewheeling diodes in motor drivers, and polarity protection across various embedded and control systems. It is compliant with RoHS standards and is designed for optimal automated board assembly.
Explore more onsemi diodes and Schottky rectifiers in our Semiconductor category at EnvMart.
Explore more products in our Schottky Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating is 3 amperes.
The maximum forward voltage drop is 0.7 volts, which contributes to improved efficiency.
It comes in a TO-252 (DPAK) surface-mount package, ensuring a compact design and ease of assembly.
The diode operates within a wide temperature range from -65°C to 175°C.
The diode can handle a peak non-repetitive forward surge current of up to 75 amperes.
This model features a three-pin single diode configuration suitable for board-level integration.
Yes, it is automotive qualified to the AEC-Q101 standard.
It is compliant with RoHS standards, ensuring it meets environmental regulations.
This diode is suitable for use in switching power supplies, freewheeling applications, and polarity protection circuits.
The dimensions are 6.73 mm in length, 6.22 mm in width, and 2.38 mm in height.
