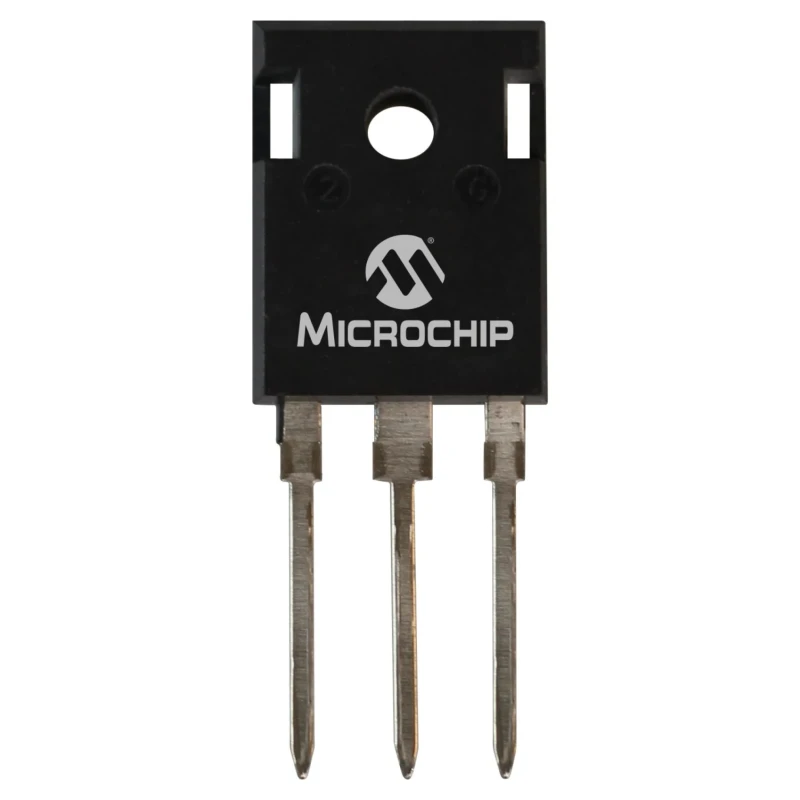

Microchip 700 V 30 A Schottky Barrier Diode Through Hole TO-247 MSC030SDA070BCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | MSC030SDA070BCT |
| Mount Type | Through Hole |
| Series | MSC0 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 700V |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 1.8V |
Key Features
- Designed for high switching frequency applications with low reverse recovery.
- Features low forward voltage and leakage current for improved efficiency.
- Supports continuous forward current up to 30 amperes.
- Operates reliably between -55°C and 175°C maximum temperatures.
- Constructed with a through-hole mount and housed in a TO-247 package.
- Capable of handling a peak non-repetitive surge current of 75 amperes.
- Compliance with RoHS standards ensuring environmental safety.
- Suitable for power applications including power parallel diode implementations.
Product Description
Microchip MSC030SDA070BCT is a 700 V, 30 A Schottky Barrier Diode designed for high switching frequency applications. Housed in a durable TO-247 package with through-hole mounting, this diode offers low forward voltage (1.8 V) and low leakage current, contributing to high efficiency in power circuits. Its robust design supports a continuous forward current of 30 amperes and can withstand peak non-repetitive surge currents up to 75 amperes. This component operates effectively in harsh environmental conditions ranging from -55°C to a maximum operating temperature of 175°C.
As a RoHS-compliant product, this Schottky Barrier Diode meets environmental regulations for electronic components. It is ideal for use in power parallel diode applications, power supplies, and other semiconductor use cases requiring efficient rectification with minimal switching losses.
The TO-247 package ensures easy integration into through-hole circuits, providing reliable mechanical and thermal performance. Its high peak reverse repetitive voltage rating of 700 V makes it suitable for demanding industrial and commercial electronics.
Designed for high switching frequency with minimal reverse recovery. Low forward voltage of 1.8 volts improves device efficiency. Capable of continuous forward current up to 30 amps. Wide operating temperature range from -55°C to 175°C.
Through-hole mount provides secure installation. TO-247 package enhances thermal management in power applications. Handles up to 75 A peak surge current safely. RoHS compliant for environmental and safety standards.
This Microchip Schottky Barrier Diode is widely used in industrial electronics, power supply modules, automotive electronics, and semiconductor circuits. Its dependable performance supports a range of applications requiring high reliability and low electrical losses. Explore our extensive Electronics & Electricals categories for more semiconductor and diode solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 30 amperes.
This diode has a peak reverse repetitive voltage rating of 700 volts.
It operates effectively within a temperature range of -55°C to 175°C.
This model uses a through-hole mounting type.
The maximum forward voltage drop is 1.8 volts.
It can handle a peak non-repetitive surge current of up to 75 amperes.
This diode is housed in a TO-247 package type.
Yes, this product is RoHS compliant, meeting environmental safety standards.
It belongs to the MSC0 series.
This diode is suitable for power applications including power supplies and power parallel diode implementations.
The low reverse recovery feature is designed for high switching frequency applications, enhancing efficiency.
The country of origin for this product is India.
