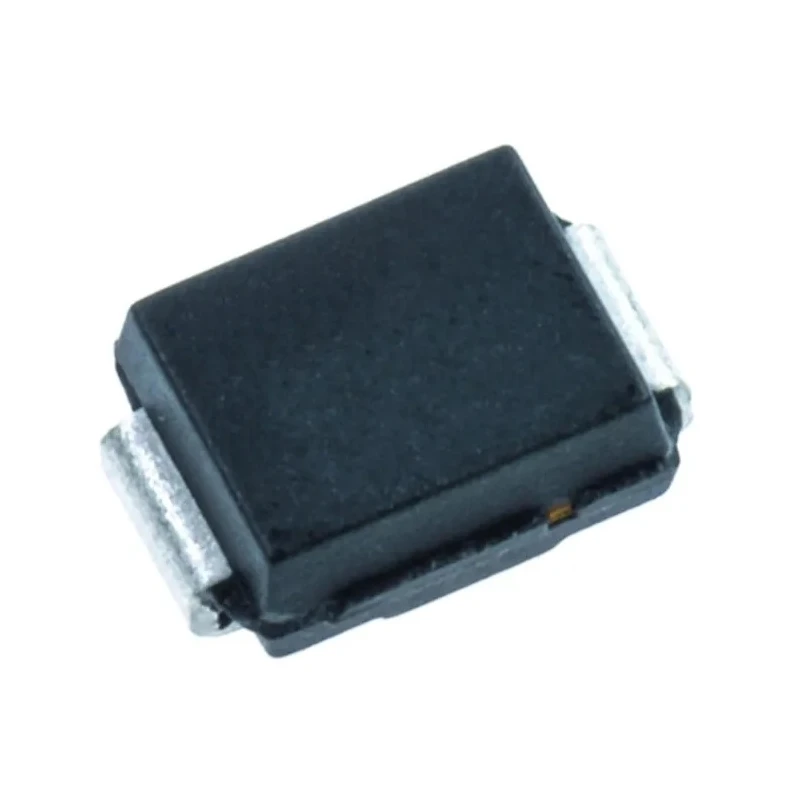

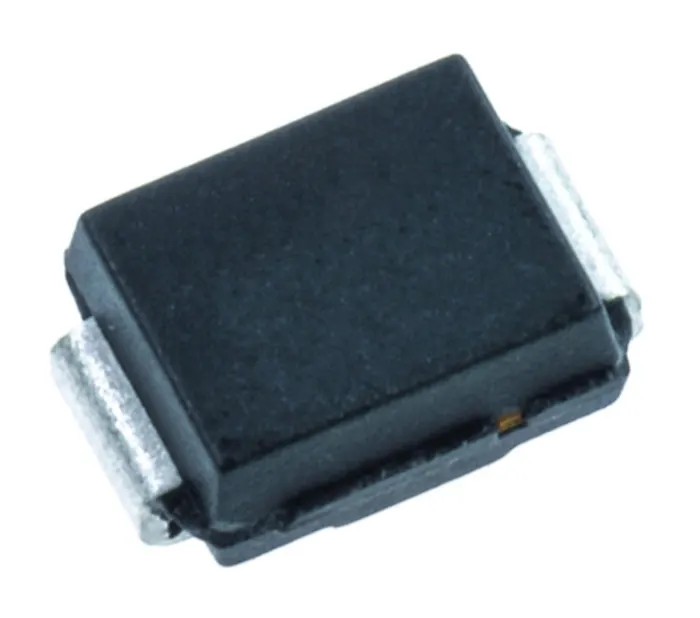

STMicroelectronics 100 V 3 A Surface Mount Schottky Diode DO-214AA STPS3H100U

STMicroelectronics STPS3H100U is a surface mount Schottky barrier diode designed for reliable operation in power and switching applications. With a maximum continuous forward current of 3 A and a peak reverse repetitive voltage rating of 100 V, it is suited for efficient rectification while maintaining low forward voltage drop of 0.63 V. The compact DO-214AA package facilitates easy integration on printed circuit boards where space and thermal dissipation are critical.

It operates efficiently within a temperature range of -65°C to 175°C, making it appropriate for demanding industrial, electronic, and power supply environments. This diode features a peak non-repetitive forward surge current of 75 A, allowing it to handle transient overloads and surges without damage.

The device has a single diode configuration with two pins, designed explicitly as a discrete semiconductor for power rectification. It does not have automotive certification, limiting its use primarily to non-automotive industrial and electronic applications.

Dimensionally, the diode packages measure approximately 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height, making it suitable for compact circuit designs. This diode is ideal for use in power rectifiers, switch mode power supplies, and various industrial electronic systems requiring efficient and reliable Schottky diode performance.

Surface mount type for efficient PCB integration. Compact DO-214AA package dimensions. 3 A maximum continuous forward current rating. 100 V peak reverse repetitive voltage rating. Low forward voltage of 0.63 V to reduce power loss.

Wide operating temperature from -65°C to 175°C. High surge current capacity of 75 A. 2-pin, single diode configuration. Suitable for power rectifier and switching applications. No automotive standard compliance.

This STMicroelectronics Schottky Diode STPS3H100U is a reliable choice for power electronics in industrial, electronic manufacturing, and commercial applications. Explore more semiconductor components and Schottky Diodes on EnvMart for your detailed technical and design needs.
