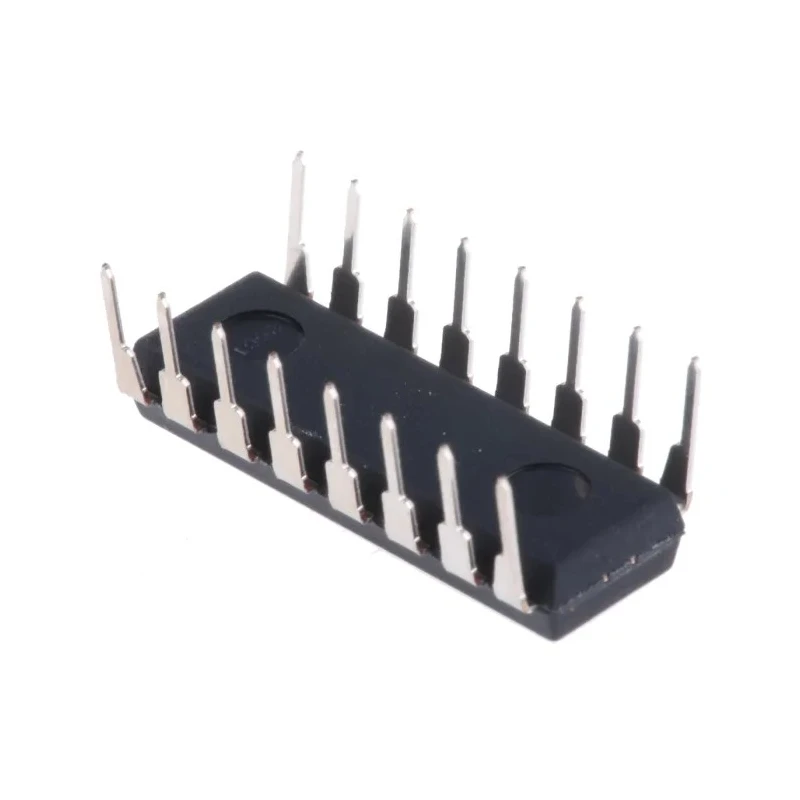

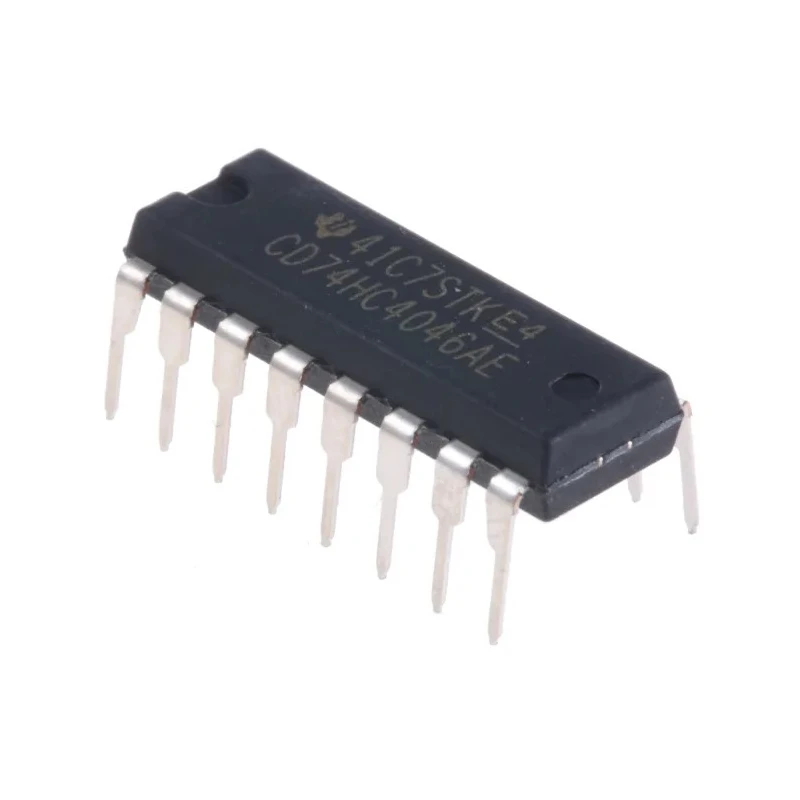

Texas Instruments PLL Circuit 1 Output CMOS Logic 16-Pin PDIP 2-6V Operating Voltage CD74HC4046AE

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments PLL Circuit 1 Output CMOS Logic 16-Pin PDIP 2-6V Operating Voltage CD74HC4046AE

Name: Texas Instruments PLL Circuit 1 Output CMOS Logic 16-Pin PDIP 2-6V Operating Voltage CD74HC4046AE
Brand: Texas Instruments
SKU: 203312
Price: 1.83 USD
Availability: InStock



Category Clock, Timing & Frequency ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	4.57mm
Length	19.3mm
Model	CD74HC4046AE
Width	6.35mm
Mount Type	Through Hole
Compatibility	Input CMOS, Output CMOS
Maximum Operating Temperature	125°C
Package Type	PDIP
Minimum Operating Temperature	-55°C
Maximum input frequency	12MHz
Number of outputs	1
Operating Voltage	2 to 6 V
Maximum Output Frequency	18MHz
Pin Count	16
Maximum Supply Voltage	6V
Minimum Supply Voltage	2V
Output Logic Level	CMOS

Key Features

High maximum output frequency of 18 MHz for precise clock synthesis.
Through-hole mount type with 16-pin PDIP package.
Input and output logic levels are CMOS compatible.
Wide operating temperature range from -55°C to 125°C for harsh environments.
Standard 74HC4000 series CMOS technology ensuring low power consumption.
Capable of driving 10 LSTTL loads providing compatibility with legacy logic.
Single output design suitable for clock, timing, and frequency circuit applications.

Product Description

The Texas Instruments CD74HC4046AE is a high-performance PLL circuit from the 74HC4000 series designed for precise clock synthesis, timing, and frequency applications. Featuring a 16-pin PDIP package and through-hole mount, this device supports supply voltages between 2V and 6V, delivering a maximum output frequency of 18 MHz. Its CMOS input and output logic levels ensure compatibility with modern circuits, and the device is capable of driving up to 10 LSTTL loads, making it versatile for integration with various logic families.

Engineered with the low power consumption benefits of CMOS technology, the CD74HC4046AE operates reliably across a broad temperature range from -55°C to 125°C, making it suitable for demanding industrial and electronic component applications. The compact size of 19.3 mm length, 6.35 mm width, and 4.57 mm height facilitates efficient PCB layout and space-saving designs.

This PLL circuit is an excellent choice for applications in electronic instrumentation, communications, and industrial control systems requiring accurate frequency synthesis and timing functions.

High-speed CMOS logic operation supporting frequencies up to 18 MHz. CMOS compatible input and output logic levels for seamless integration. Robust operation from -55°C to 125°C supports harsh environmental conditions. 16-pin PDIP package for reliable through-hole mounting.

Standard 74HC4000 series compatibility with legacy logic devices. Low power consumption CMOS technology prevents excessive heat generation. Compact dimensions for flexible circuit design. Capable of driving multiple LSTTL loads enhancing utility across systems.

Ideal for industrial, communication, laboratory, and manufacturing applications, the CD74HC4046AE PLL circuit ensures dependable performance and versatile use. Explore related clock synthesizers and components on EnvMart for integrated circuit solutions.

Explore more products in our Clock, Timing & Frequency ICs category.
