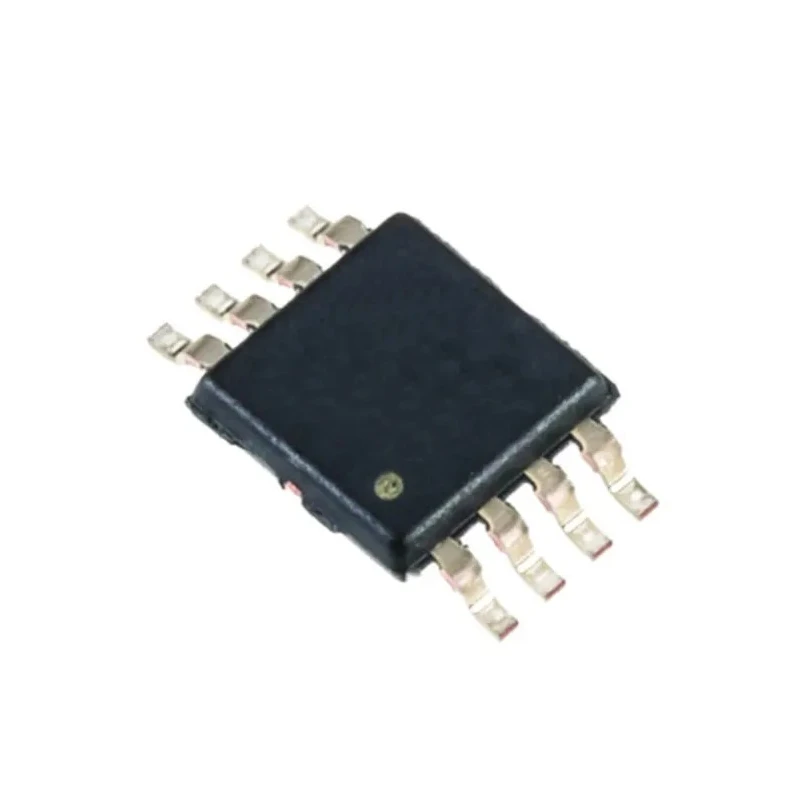

Texas Instruments Voltage Level Shifter Bi-Directional Logic Level Translator 8-Pin VSSOP TXS0102DCUT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 850μm |
| Length | 2.3mm |
| Model | TXS0102DCUT |
| Mount Type | Surface |
| Output type | Open Drain |
| Series | TXS0102 |
| Maximum Operating Temperature | 85°C |
| Package Type | VSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Logic Function | Voltage Level Translator |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -0.02mA |
| Maximum Propagation Delay Time @ CL | 7.5ns |
| Direction Type | Bi-Directional |
| Maximum Low Level Output Current | 1mA |
| Translation | Voltage Level |
Key Features
- Supports bi-directional voltage level shifting providing flexibility in interfacing different logic levels.
- Built on CMOS technology ensuring low power consumption and high efficiency.
- Maximum propagation delay time of 7.5ns allows for fast signal translation.
- Operates with supply voltages ranging from 1.65V to 5.5V for broad applicability.
- Open drain output type suitable for wired-AND configurations.
- Compact 8-pin VSSOP surface mount package minimizes PCB space requirements.
- Wide operating temperature range from -40°C to 85°C for industrial applications.
- Maximum low-level output current of 1mA supports moderate load driving capability.
Product Description
Texas Instruments TXS0102DCUT is a high-performance voltage level shifter designed to provide smooth and reliable voltage level translation between different logic families and voltage domains. It incorporates CMOS logic technology that enables the device to efficiently translate voltage levels in a bi-directional manner, making it ideal for mixed voltage systems and digital signal interfacing.
Featuring an 8-pin VSSOP package, this surface-mounted IC offers compact integration for modern PCB designs. With a maximum propagation delay time of 7.5 nanoseconds, it enables fast data throughput which is suitable for high-speed digital applications.
Operating voltage ranges from 1.65 volts minimum up to 5.5 volts maximum, allowing it to interface circuits operating on various power supply levels while maintaining signal integrity. Open drain output architecture supports wired-AND functionality commonly required in bus-oriented interfaces.
The device sustains operation in harsh environmental conditions with a wide temperature rating from minus 40 to 85 degrees Celsius, enabling its use in automotive, industrial, and consumer electronics.
Texas Instruments TXS0102DCUT provides a robust solution for voltage-level translation requirements in semiconductor applications including embedded control systems, communication equipment, and power management circuits. Its compact size and versatile logic functionality contribute to simplifying circuit design challenges where multiple voltage domains coexist.
Supports bi-directional voltage level translation, enhancing device compatibility. Low supply current operation reduces overall power consumption. VSSOP surface mount package provides compact footprint on PCBs. Wide voltage and temperature ranges accommodate various applications.
Open drain outputs suitable for bus-based communication systems. Ensures signal integrity with low propagation delay and stable output. Application domains include logic IC interfacing, power management, and signal conversion.
Robust industrial-grade device designed for reliable long-term operation. Complies with standard semiconductor device specifications and quality. Explore our wide range of semiconductor components and Translator ICs at EnvMart to design efficient and reliable electronic systems.
