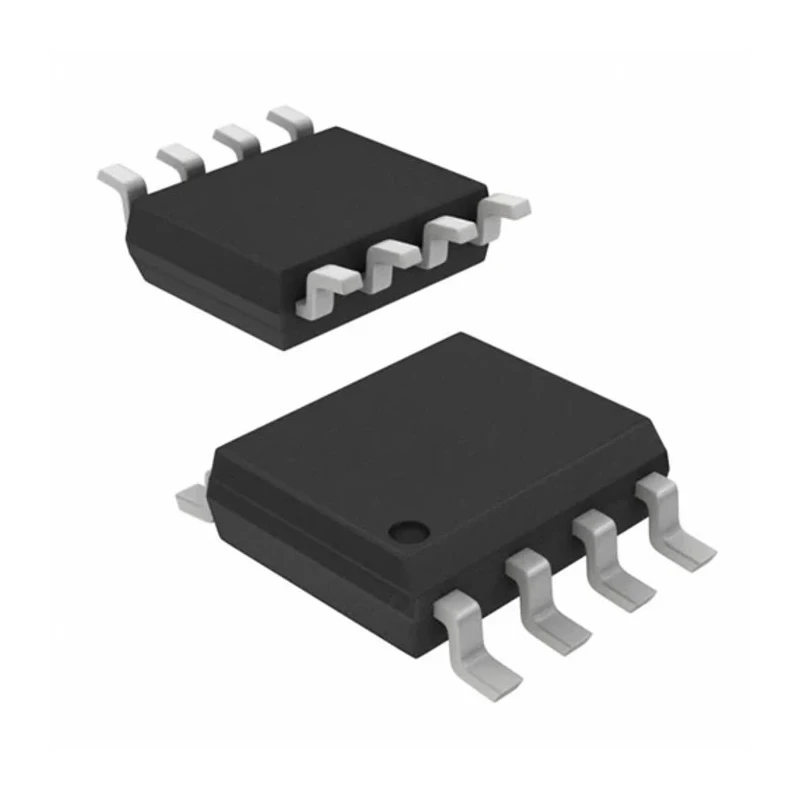

NXP Real Time Clock PCF8563T/F4,118 128-bit Timer D:W:M:Y 8-Pin SO-8 Surface Mount

The NXP PCF8563T/F4,118 is a high-performance real time clock and calendar IC featuring a 128-bit timer optimized for low power consumption in electronic applications.

This device supports date and time formats expressed as Day:Week:Month:Year (D:W:M:Y) and seconds:minutes:hours (SS:MM:HH), making it ideal for precision timing and calendar functions.

Housed in a compact 8-pin SO-8 surface mount package, it is designed for seamless integration into PCB assemblies requiring reliable timekeeping and timer features with minimal footprint.

Operating over a wide voltage range of 1.8 to 5.5 volts and temperature range of -40°C to 85°C, the PCF8563T/F4,118 ensures robust performance under demanding environmental conditions.

The clock communicates exclusively via a two-wire bidirectional I2C bus supporting speeds up to 400 kbit/s, facilitating efficient data transfer and control. Additional features include programmable clock output, interrupt output, and a voltage low detector providing enhanced timing control and system monitoring capabilities.

The integrated oscillator capacitor further simplifies the circuit design, reducing external component requirements. Operates at low supply voltage and low power consumption. Offers accurate calendar and timer functions with alarm capability.

Compact and lightweight for modern electronic device integration. Ideal for industrial, laboratory, consumer electronics, and commercial timing applications. 8-pin SO-8 package ensures ease of mounting on surface mount technology boards.
