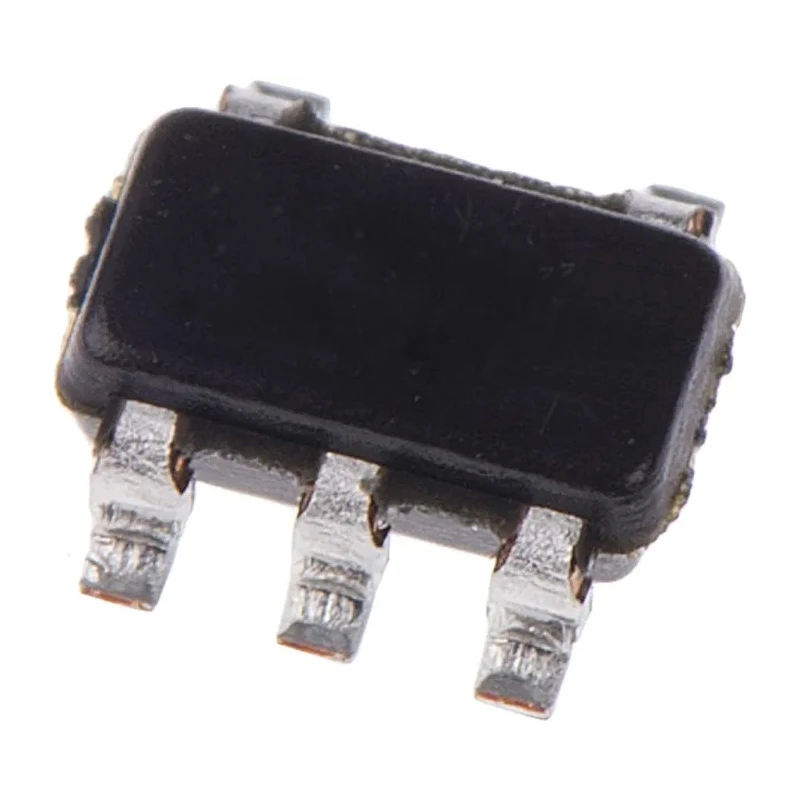

STMicroelectronics Single Ended Current Sensing Amplifier 5-Pin SOT-23 CS30AL
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.3mm |
| Length | 3mm |
| Model | CS30AL |
| Mount Type | Surface |
| Output type | Single Ended |
| Series | CS30 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 5 |
| Maximum Supply Voltage | 24V |
| Minimum Supply Voltage | 4V |
| Supply Current | 300μA |
| GBP - Gain Bandwidth Product | 500kHz |
| CMRR - Common Mode Rejection Ratio | 105dB |
Key Features
- Operates with a single power supply voltage from 4V to 24V.
- Features high common mode rejection ratio of 105 dB for accurate sensing.
- Includes two channels with low supply current of 300μA for energy efficiency.
- Compact surface mount mounting in a 5-pin SOT-23 package with dimensions 3 mm x 1.3 mm.
- Gain bandwidth product is 500 kHz, supporting high-speed current sensing applications.
- Wide operating temperature range from -40°C to 125°C ensures reliability in harsh environments.
- Output type is single ended, suitable for diverse industrial and automotive electronics circuits.
- Does not comply with automotive standards but is ideal for generic current sensing in electronics.
Product Description
STMicroelectronics CS30AL is a single ended current sensing amplifier designed for precise current measurement in electrical circuits. Packaged in a compact 5-pin SOT-23 format, it supports operation over a wide voltage range of 4V to 24V and a broad operating temperature from -40°C to 125°C, making it suitable for demanding industrial and commercial electronics applications.
This device offers a high common mode rejection ratio (CMRR) of 105 dB, enabling accurate sensing of voltage drops across low-value resistors typically placed in high-current power rails. Its low supply current of 300 μA contributes to energy-efficient designs, paired with a gain bandwidth product of 500 kHz to handle high-frequency signals effectively.
The CS30AL includes two channels and provides a single ended output, making it compatible with standard signal processing circuits. Its surface mount package ensures ease of integration into compact PCBs, optimizing space without compromising performance.
This amplifier is ideal for current monitoring in electronic systems used in industrial automation, power management, consumer electronics, and laboratory instrumentation. Despite the absence of automotive certification, the wide operating conditions and reliable performance make it a versatile component for a variety of electrical sensing tasks.
Operates with a single supply voltage from 4V to 24V. High common mode rejection ratio of 105 dB ensures signal accuracy. Low supply current of 300 μA reduces power consumption. Compact 5-pin SOT-23 surface mount package.
Gain bandwidth product of 500 kHz supports high-frequency operation. Wide operating temperature range from -40°C to 125°C. Single ended output suitable for standard electronic circuits. The product is new and originates from India. For Current Sensing Amplifier needs, explore more components from STMicroelectronics and related semiconductor amplifiers at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a single power supply voltage ranging from 4V to 24V.
It features a high common mode rejection ratio of 105 dB, which ensures accurate sensing of voltage drops.
The supply current for this unit is 300 μA, contributing to energy-efficient designs.
The gain bandwidth product is 500 kHz, allowing it to handle high-frequency current sensing applications effectively.
It operates over a wide temperature range from -40°C to 125°C, making it suitable for harsh environments.
This model provides a single ended output, which is suitable for standard electronic circuits.
It includes two channels, allowing for versatile current sensing applications.
The amplifier is packaged in a compact 5-pin SOT-23 format with dimensions of 3 mm in length and 1.3 mm in height.
The CS30AL features a surface mount design, facilitating easy integration into compact PCBs.
This model does not comply with automotive standards but is designed for generic current sensing in electronics.
The product is manufactured in India.
It is ideal for current monitoring in industrial automation, power management, consumer electronics, and laboratory instrumentation.
