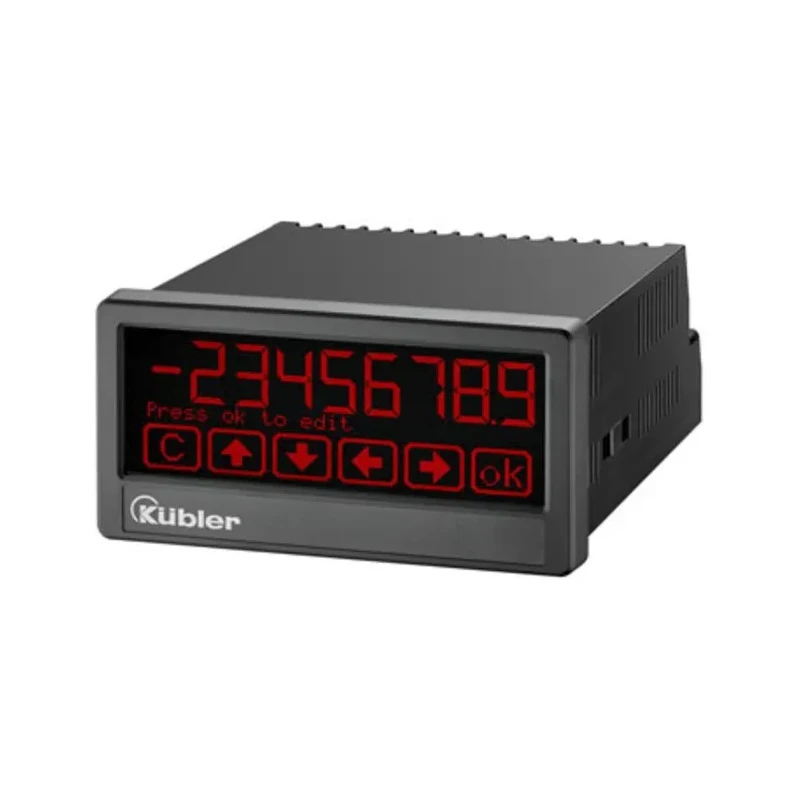

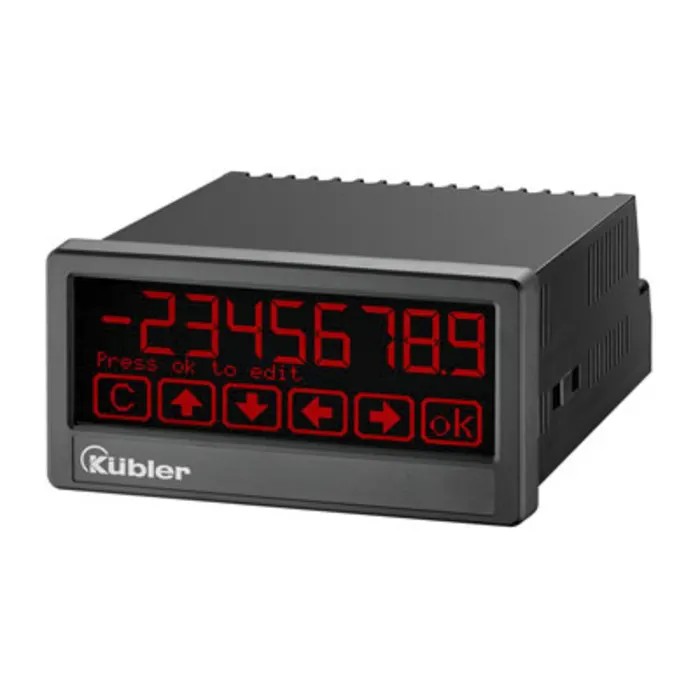

Kubler Display Unit Counter LCD, Maximum Supply Voltage 30V, Model 6.570T.010.E02

Kubler 6.570T.010.E02 Display Unit Counter LCD is a precision display unit engineered for industrial automation and electronic measurement applications. It supports absolute SSI encoders with resolutions up to 32 bits, making it ideal for accurate count displays in factory automation, process control, and instrumentation setups.

This device features a robust LCD display measuring 13 mm in height with 8 digits, benefiting from adjustable brightness and tri-color functionality (red, green, yellow) that can be programmed for various status indications. It offers master or slave operation modes with simple screw terminal connections for ease of installation.

The unit operates reliably across a supply voltage of up to 30 V AC or DC, and functions optimally within a temperature range of 20°C to 60°C, ensuring industrial-grade performance.

Advanced display functions include scaling, offset adjustment, bit blanking, and 24-point linearization, allowing for customizable and precise visual output. The unit processes SSI clock frequencies from 100 Hz up to 1 MHz, enabling compatibility with a wide range of SSI encoders.

Output configurations provide flexibility including four programmable limit values, analog outputs, and RS232 interface for integration with external systems. Its compact build with a depth of 105 mm and lightweight of 200 grams facilitates convenient integration into control panels and machinery.

Manufactured in Germany, this display unit exemplifies high-quality engineering suitable for industrial automation, semiconductor manufacturing, laboratory instrumentation, and other technical environments requiring dependable counting and display functionality.

Features a large 13 mm high 8-digit LCD display with adjustable brightness and tri-color indication. Supports both master and slave modes with screw terminal connections. Operates at supply voltages up to 30V with AC and DC compatibility.

Operates in temperatures ranging from 20 to 60°C. Includes scaling, offset, bit blanking, and 24-point linearization for precise display control. Clock frequency range from 100 Hz up to 1 MHz for SSI signal processing. Output options include 4 limit values, analog output, or RS232 interface.

Compact depth of 105 mm and weighs approximately 200 grams. Manufactured in Germany, designed for demanding industrial environments. Explore more advanced industrial Display Units and counters at EnvMart for automation and instrumentation needs.
