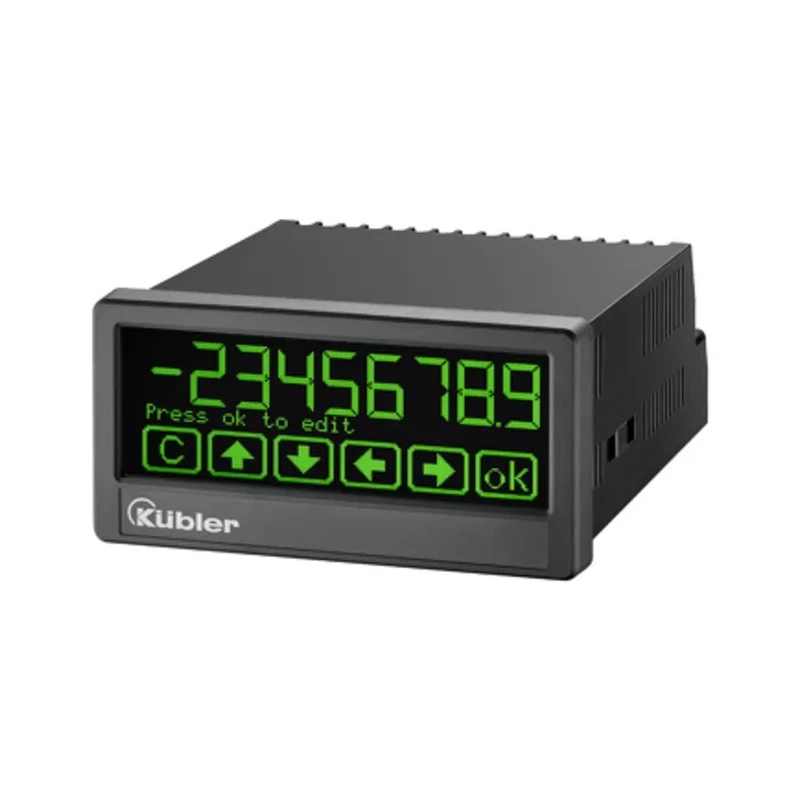

Kubler Display Unit Counter LCD Maximum Supply Voltage 30V Model 6.573T.012.301

Kubler 6.573T.012.301 Display Unit Counter LCD delivers advanced electronic counting functions with an LCD display and a maximum supply voltage rating of 30V. This device is designed for process control applications, capable of single or dual channel operation for arithmetic processing including sum, difference, ratio, and product calculations.

The unit features five separate freely scalable analog inputs accepting ±10 V and 0/4 to 20 mA signals with 16-bit resolution, providing high-precision measurements. It incorporates a tare function allowing users to zero the input voltage for calibration or measurement purposes. The programmable linearization supports up to 24 control points, accessible via key-pad or the teach-in function, allowing precise input-output mapping.

With an averaging capability over 2 to 16 measuring cycles, this display unit efficiently stabilizes fluctuating signals, making it ideal for demanding industrial environments. Its fast 1 ms alternating sampling rate per channel enables rapid data acquisition for real-time control. The device can function as a process signal converter, an ON/OFF process controller, or handle more complex monitoring where relationships between two measured values are critical.

The robust build ensures operation across a temperature range of 20°C to 60°C, and the 105 mm depth allows easy integration into control panels. Made in Germany, it adheres to high manufacturing standards but has no specific approvals or certifications listed.

Typical industrial uses include manufacturing process control, automation systems, laboratory instrumentation, HVAC monitoring, and water treatment systems. It is suitable for applications demanding accurate counting, signal conversion, and process control functions.

Equipped with an LCD display for clear data presentation. Maximum supply voltage of 30V for versatile electrical compatibility. Operates efficiently in temperature range of 20°C to 60°C. Five analog inputs with 16-bit resolution handle a variety of input signals.

Programmable linearization supports detailed control point mapping. Tare function enhances measurement flexibility and calibration capabilities. Averaging over multiple cycles stabilizes input signal fluctuations. Fast 1 ms sampling rate ensures timely data acquisition.

Designed for use in industrial automation, process control, and measurement systems. Explore more products in the Display Unit category at EnvMart for advanced industrial automation solutions.
