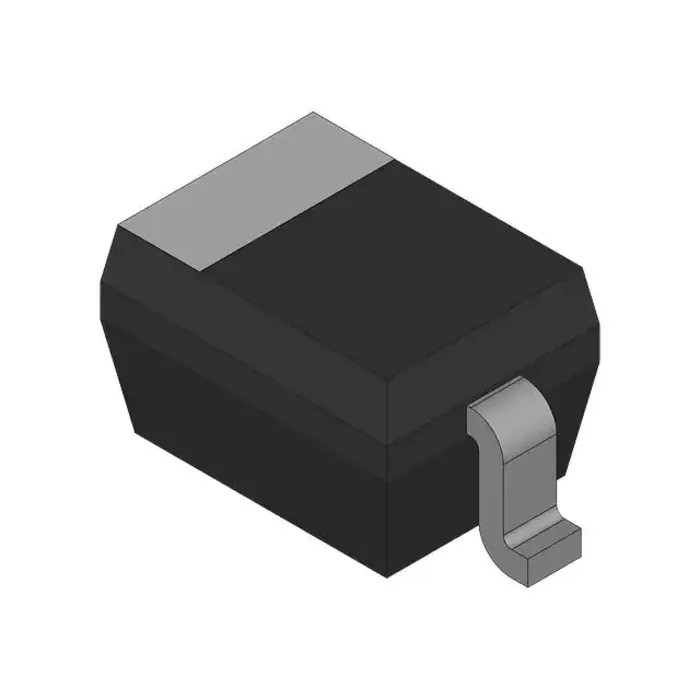

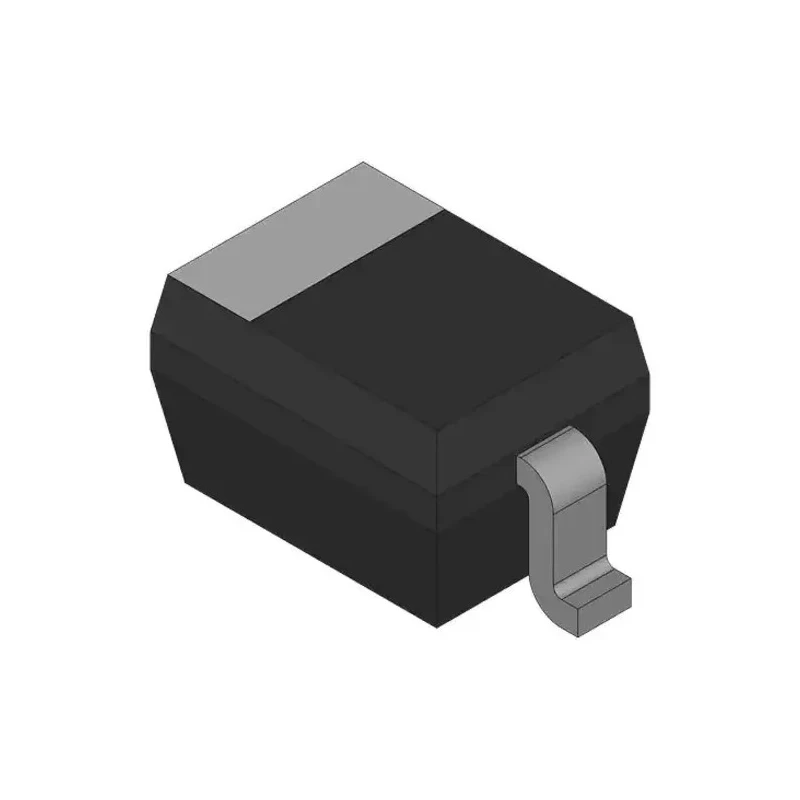

ROHM Single PIN Diode 100 mA 60 V Surface Mount UMD Package RN142VMTE-17
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.9mm |
| Length | 1.35mm |
| Model | RN142VMTE-17 |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | UMD |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Diode Configuration | Single |
| Maximum Forward Voltage Vf | 1V |
| Maximum Forward Current If | 100mA |
| Maximum Capacitance | 0.45pF |
| Maximum Reverse Voltage Vr | 60V |
| Maximum Series Resistance @ Maximum If | 3Ω |
Key Features
- This diode features a surface mount package type UMD suitable for automated PCB assembly.
- It supports a maximum reverse voltage of 60 V, ensuring reliable operation in various circuits.
- The maximum forward voltage drop is 1V at maximum forward current, providing efficient conduction.
- It has a compact dimension with length 1.35mm and height 0.9mm, ideal for space-constrained designs.
- The device operates safely within a temperature range of -55°C to 150°C.
- Pin count is 2, compatible with standard surface mount footprints.
- This diode exhibits a low maximum series resistance of 3Ω at the maximum forward current.
- It is designed with high reliability for industrial and commercial electronic systems.
Product Description
ROHM RN142VMTE-17 Single PIN Diode is engineered for high-frequency switching applications, featuring a low capacitance of 0.45pF and supporting a maximum forward current of 100 mA. Packaged in a compact surface-mount UMD type, this diode is optimized for automated PCB assembly processes.
Operating with a maximum reverse voltage of 60 V and maximum forward voltage of 1 V, the diode guarantees efficient conduction and reliable operation across diverse industrial and commercial electronic circuits. Its dimensions, length 1.35mm and height 0.9mm, make it suitable for designs where PCB space is limited.
With a pin count of 2 and a maximum series resistance of 3Ω, the RN142VMTE-17 delivers stable electrical performance. It maintains functionality in extreme temperature conditions, ranging from -55°C to 150°C, supporting demanding environmental requirements.
This diode is ideal for use in telecommunications, RF circuits, and other semiconductor applications requiring fast switching and minimal signal distortion. Although it lacks automotive certifications, its design emphasizes high reliability and durability in general electronic component applications.
This diode features a surface mount package type UMD suitable for automated PCB assembly. It supports a maximum reverse voltage of 60 V, ensuring reliable operation in various circuits. The maximum forward voltage drop is 1V at maximum forward current, providing efficient conduction.
It has a compact dimension with length 1.35mm and height 0.9mm, ideal for space-constrained designs. The device operates safely within a temperature range of -55°C to 150°C. Pin count is 2, compatible with standard surface mount footprints.
This diode exhibits a low maximum series resistance of 3Ω at the maximum forward current. It is designed with high reliability for industrial and commercial electronic systems. ROHM RN142VMTE-17 PIN diode does not comply with automotive standards and has no special approvals.
Explore EnvMart's semiconductor category for a wide range of ROHM electronic components, ensuring efficient and dependable performance for your industrial and laboratory projects.
Explore more products in our PIN Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse voltage supported by this diode is 60 V, ensuring reliable operation in various circuits.
This model has dimensions of 1.35 mm in length and 0.9 mm in height, making it suitable for space-constrained designs.
The maximum forward current for the RN142VMTE-17 is 100 mA, allowing for efficient conduction in applications.
The maximum forward voltage drop at maximum forward current is 1 V, which contributes to its efficient conduction.
This diode features a pin count of 2, making it compatible with standard surface mount footprints.
The RN142VMTE-17 operates safely within a temperature range of -55°C to 150°C, suitable for demanding environments.
It is packaged in a surface mount UMD type, which is optimized for automated PCB assembly processes.
The maximum series resistance at maximum forward current is 3Ω, providing stable electrical performance.
The maximum capacitance of this diode is 0.45 pF, which is beneficial for high-frequency switching applications.
This diode is typically used in telecommunications, RF circuits, and other semiconductor applications requiring fast switching and minimal signal distortion.
The diode configuration is single, designed for various electronic circuit applications.
The country of origin for this diode is India.
