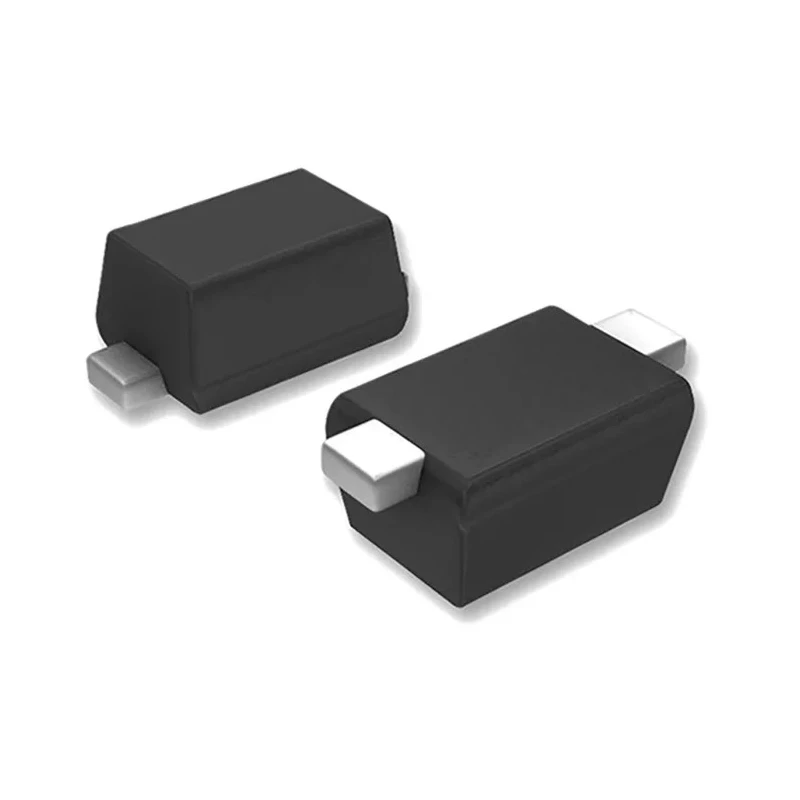

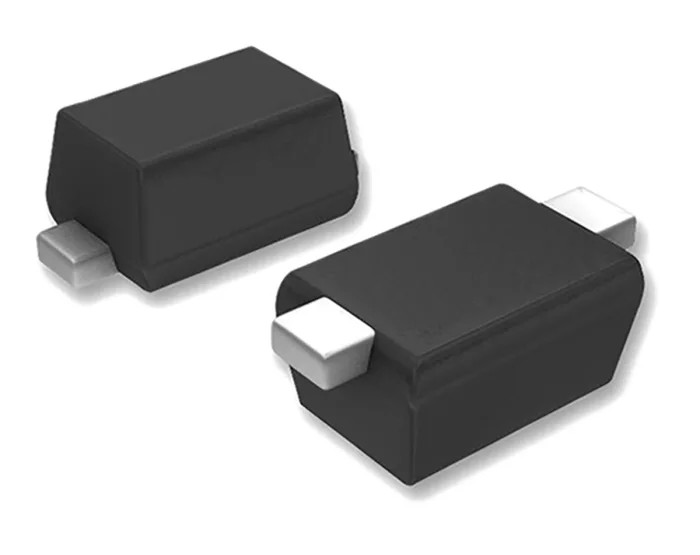

Infineon Single PIN Diode 100 mA, 150 V, 2-Pin Surface Mount SC-79 BAR6402VH6327XTSA1

Name: Infineon Single PIN Diode 100 mA, 150 V, 2-Pin Surface Mount SC-79 BAR6402VH6327XTSA1
Brand: Infineon
SKU: 226295
Price: 0.06 USD
Availability: InStock



Category PIN Diodes Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	0.55mm
Length	1.2mm
Model	BAR6402VH6327XTSA1
Mount Type	Surface
Series	BAR64
Maximum Operating Temperature	125°C
Package Type	SC-79
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q101
Diode Configuration	Single
Maximum Forward Voltage Vf	1.1V
Maximum Forward Current If	100mA
Maximum Capacitance	0.35pF
Maximum Reverse Voltage Vr	150V

Key Features

Single PIN diode configuration for RF and switching applications.
Maximum forward current of 100 mA ensures reliable performance.
Reverse voltage capability up to 150 V for robust operation.
Low maximum capacitance at 0.35 pF suitable for high-frequency circuits.
Compact 2-pin SC-79 surface mount package for easy PCB integration.
Forward voltage drop maximum of 1.1 V under operating conditions.
Operating temperature range from -55°C to 125°C supports harsh environments.
Automotive grade compliant with AEC-Q101 standard.

Product Description

Infineon BAR6402VH6327XTSA1 single PIN diode is engineered for discrete semiconductor applications requiring high reliability and compact design. This diode is supplied in a small SC-79 surface mount package, measuring 1.2 mm in length and 0.55 mm in height, making it suitable for high-density PCB layouts in industrial and automotive electronics.

It supports a maximum forward current of 100 mA and can withstand reverse voltages up to 150 V, allowing usage in a range of low-power switching and RF applications. The maximum forward voltage is 1.1 V and the device features low capacitance of 0.35 pF, optimizing signal integrity in radio frequency circuits.

The diode is qualified to the stringent AEC-Q101 automotive standard, ensuring dependable operation within temperature extremes from -55°C to +125°C. This robustness makes it ideal for automotive electronics and industrial environments where thermal and mechanical stresses are common.

As a discrete semiconductor device, it is commonly used in RF switching, attenuator circuits, and signal modulation applications in sectors including telecommunications, automotive electronics, and industrial control systems.

Single PIN diode configuration for signal switching and attenuation. 100 mA forward current rating with 150 V reverse voltage capacity. Compact SC-79 2-pin surface mount package for space-saving PCB design. Forward voltage drop up to 1.1 V ensuring efficient conduction.

Low parasitic capacitance of 0.35 pF for RF performance. Wide operating temperature range of -55°C to 125°C. Compliant with automotive AEC-Q101 standards.

This diode supports various industrial uses such as telecommunications hardware, automotive electronic assemblies, and precision instrumentation circuitry. Its compact form factor and electrical specifications make it a preferred component for designers aiming to achieve high performance in limited spaces.
