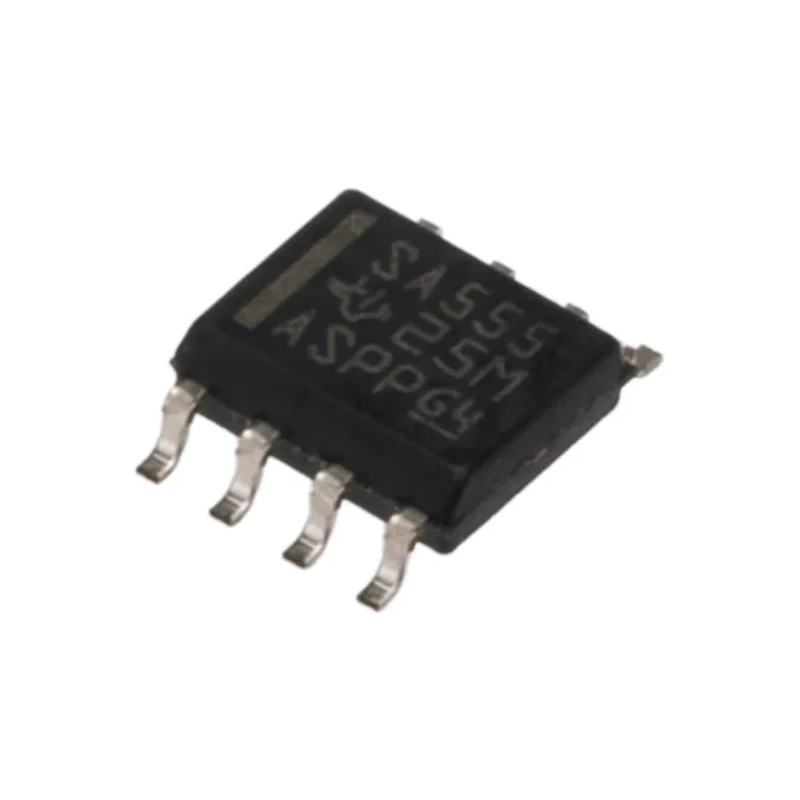

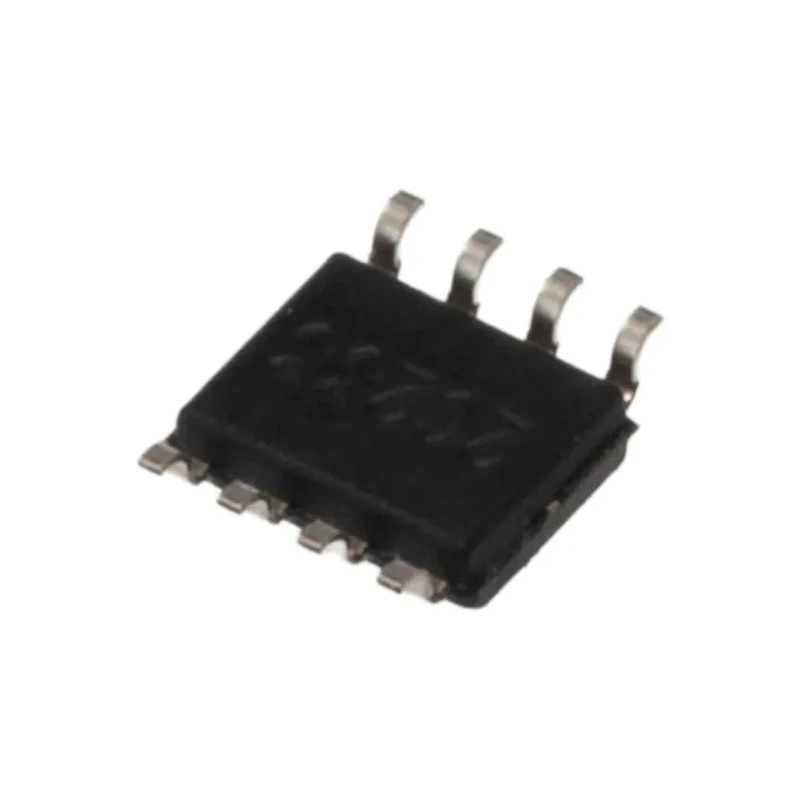

Texas Instruments Surface Mount Timer IC, 1 Internal Timer, 8-Pin SOIC Package, 4.5V to 18V Supply, -40°C to 85°C SA555D

Texas Instruments SA555D is a high-quality Surface Mount Timer IC packaged in an 8-Pin SOIC form factor. The device incorporates 1 reliable internal timer and operates efficiently over a wide supply voltage range of 4.5V to 18V, making it suitable for various electronic timing and oscillator applications.

This timer IC operates within a broad temperature range, from -40°C to 85°C, ensuring stable performance in harsh industrial and laboratory environments. Its maximum propagation delay time is 15 nanoseconds at a test condition of 15pF, delivering fast and accurate timing responses.

The SA555D is well-suited for printed circuit board designs requiring compact surface mount components. Its 8 standard pins enable straightforward integration into timing circuit designs used for industrial automation, control systems, and electronic instrumentation.

With its robust design, the SA555D timer IC finds common applications in timer relay systems, measurement instruments, and frequency control modules. The xx555 series heritage ensures compatibility with a broad range of timing configurations.

This timer IC features a surface mount SOIC package suitable for compact PCB designs. It operates reliably over a wide temperature range from -40°C to 85°C. With a pin count of 8, it provides simple interfacing for timing circuits.

The device’s maximum propagation delay time is 15ns, ensuring fast response. Its operating voltage supports both low and high voltage applications between 4.5V and 18V. The SA555D belongs to the xx555 series timer ICs, known for versatility in timing and oscillator applications.

Ideal for industrial, laboratory, and electronic circuit design requiring precise timing control. Explore the extensive range of semiconductor components and timing solutions available at EnvMart for your electronic design projects.
