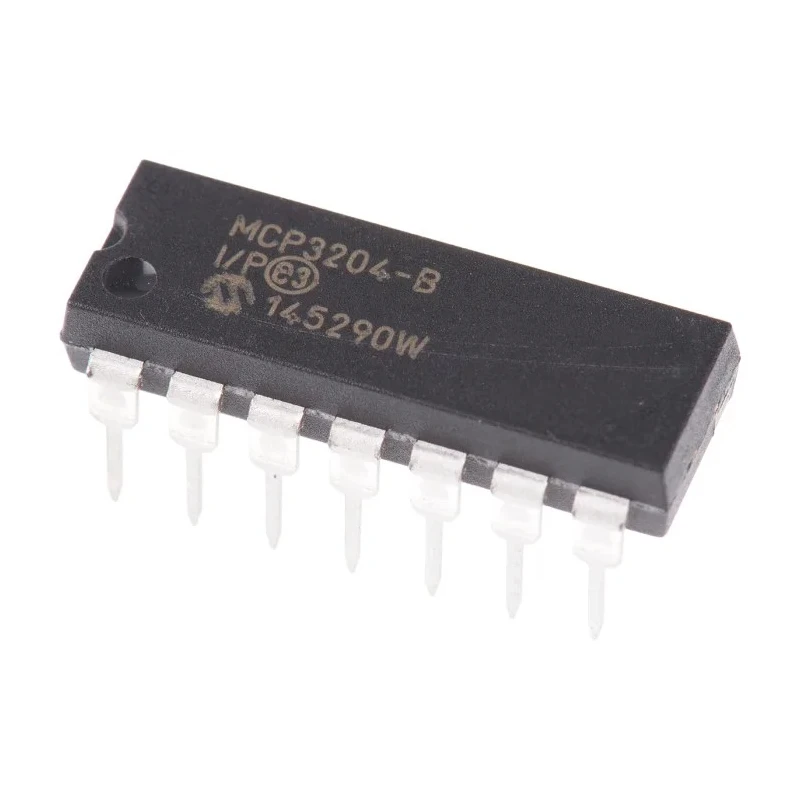

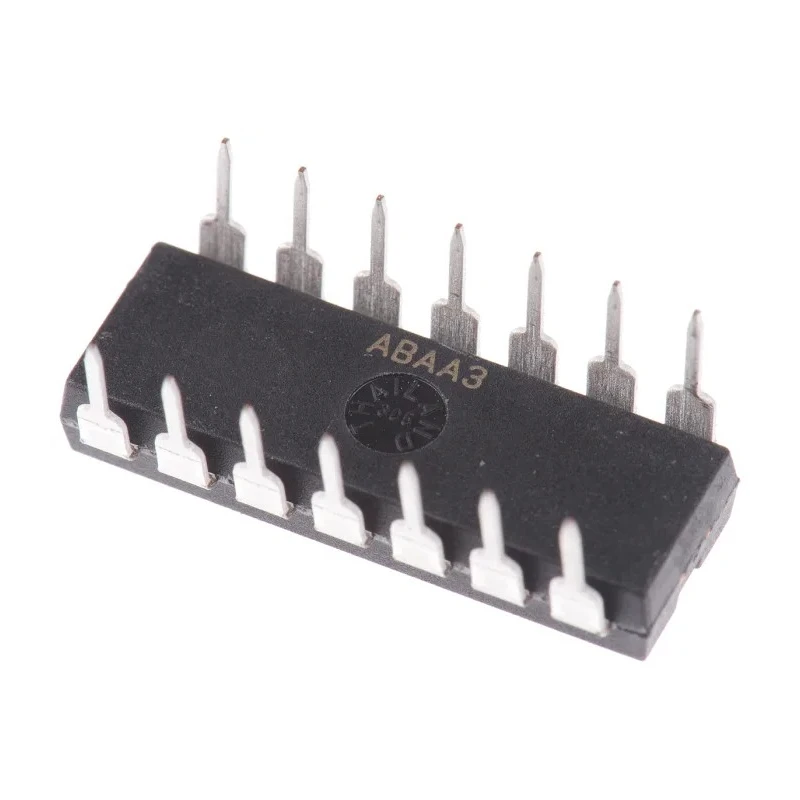

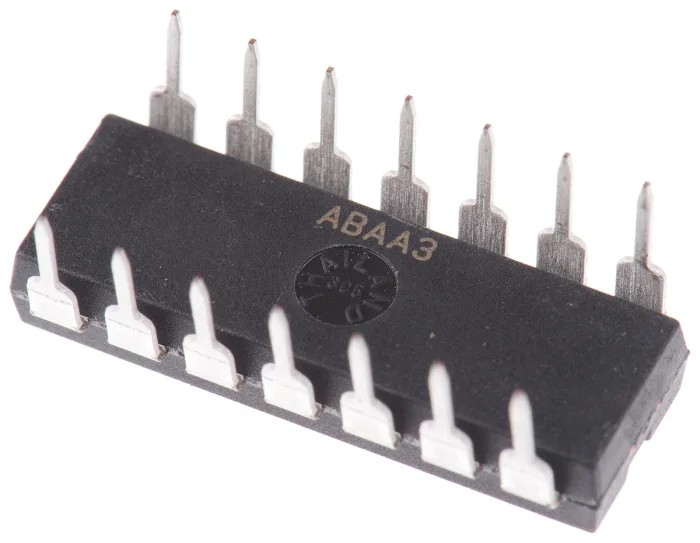

Microchip 4-Channel 12-Bit 100 ksps SAR Architecture Analogue to Digital Converter 14-Pin PDIP MCP3204-BI/P
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 5.89mm |
| Length | 19.69mm |
| Model | MCP3204-BI/P |
| Mount Type | Through Hole |
| Sampling rate | 100ksps |
| Series | MCP3204 |
| Input Type | Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 4 |
Key Features
- The device provides 4 separate ADC inputs allowing simultaneous multi-channel sampling.
- It uses a successive approximation register (SAR) for efficient conversion performance.
- Sampling rate of 100,000 samples per second (100 ksps) ensures fast data acquisition.
- Operates within a voltage input range and uses SPI interface for communication.
- Designed for through-hole mounting with dimensions 19.69 mm length and 5.89 mm height.
- Operating temperature range from -40°C to 125°C supports robust industrial applications.
- Supports a supply voltage ranging from 5 V to 5.5 V for flexible system integration.
- Complies with automotive standard AEC-Q100 for reliability in automotive systems.
Product Description
Microchip MCP3204-BI/P is a high-precision 12-bit analogue to digital converter (ADC) with four separate ADC channels integrated into a single IC. Based on successive approximation register (SAR) architecture, this device delivers reliable and accurate signal conversion with a sampling rate up to 100 ksps, making it suitable for demanding industrial and automotive use.
Designed in a 14-pin PDIP through-hole package, the MCP3204-BI/P is easily integrated into standard PCB layouts. It communicates via SPI interface, facilitating straightforward system connectivity. The device operates with supply voltages between 5 V and 5.5 V, supporting stable operation across a wide voltage range.
With an operating temperature range of -40°C to 125°C, it meets the toughness needed for automotive and harsh environment applications. Certified to automobile standard AEC-Q100, it is built for reliability and consistent performance.
The compact 19.69 mm length and 5.89 mm height package size provides space-efficient design options. Typical applications include industrial control systems, automotive sensor data acquisition, laboratory instrumentation, and embedded electronic systems requiring high resolution and fast analogue signal processing.
The MCP3204-BI/P offers 4 ADC channels for simultaneous signal measurement. SAR architecture provides rapid and precise analogue to digital conversion. Samples analogue signals at 100 ksps to capture fast-changing inputs.
Operates with a stable supply voltage range of 5 to 5.5 V. Features a 14-pin PDIP package supporting through-hole mounting. Communicates through SPI interface ensuring compatibility with various microcontrollers and systems.
Wide operating temperature range (-40°C to 125°C) suitable for industrial and automotive use. Meets AEC-Q100 automotive quality standards for reliability. Compact dimensions allow easy incorporation into electronic assemblies.
This Microchip ADC is highly suitable for converting analogue signals into accurate digital data streams, making it essential in areas such as embedded systems, monitoring and measurement devices, and automotive electronics where precision and speed are paramount.
Explore similar Analogue to Digital Converters and related electronic components in the Electronics & Electricals category at EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP3204-BI/P has a maximum sampling rate of 100,000 samples per second (100 ksps).
This model provides 4 separate ADC channels for simultaneous multi-channel sampling.
It operates within an extensive temperature range from -40°C to 125°C.
The device requires a supply voltage ranging from 5 V to 5.5 V.
It uses an SPI interface for communication, facilitating compatibility with various microcontrollers and systems.
The resolution of this analogue to digital converter is 12 bits.
The dimensions of this unit are 19.69 mm in length and 5.89 mm in height.
It comes in a 14-pin PDIP package designed for through-hole mounting.
Yes, it complies with the automotive standard AEC-Q100 for reliability in automotive applications.
This model utilizes a successive approximation register (SAR) architecture for efficient conversion performance.
It accepts voltage as its input type.
It is suitable for applications such as industrial control systems, automotive sensor data acquisition, and laboratory instrumentation.
