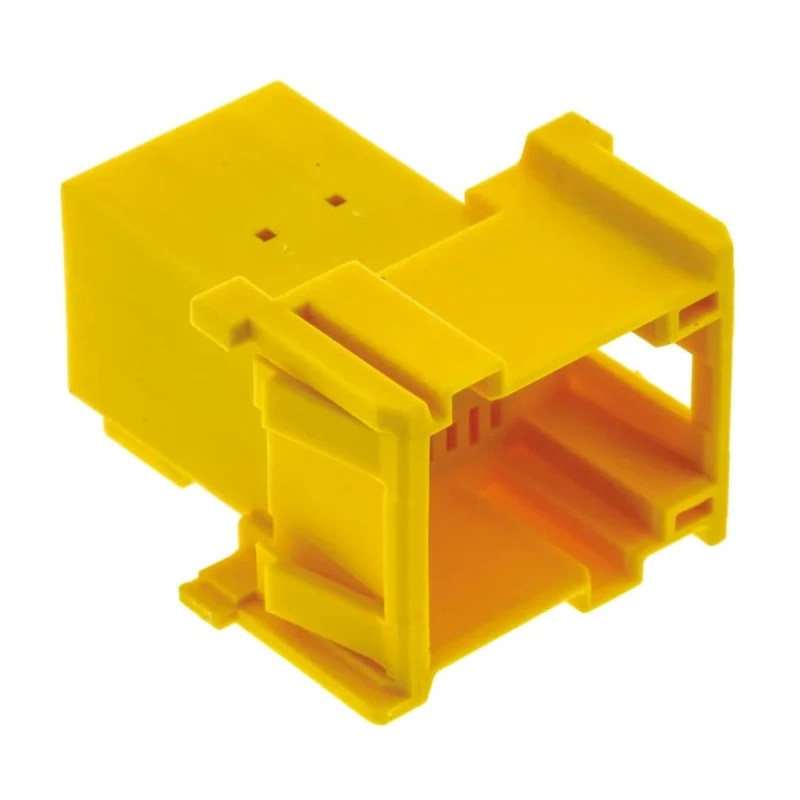

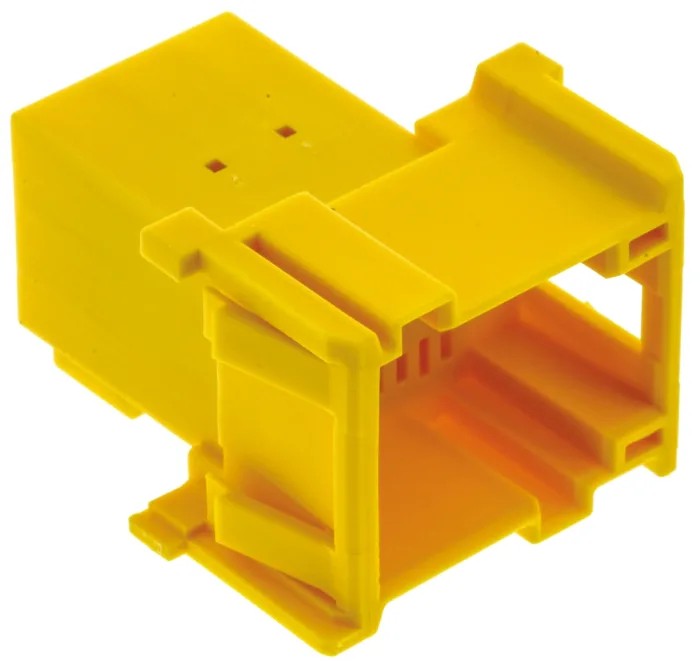

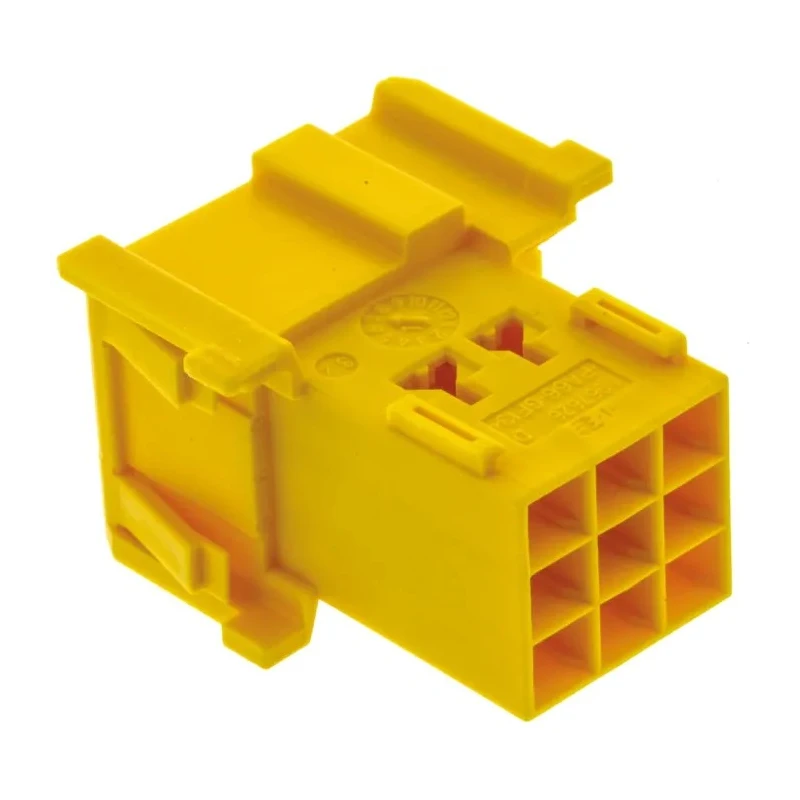

TE Connectivity Timer Automotive Connector Male Yellow Cable 9 Way Crimp Termination 1-967626-1

TE Connectivity 1-967626-1 Timer Automotive Connector Male Yellow Cable 9 Way Crimp Termination is specifically engineered for robust and reliable automotive electrical connections. This connector utilizes a Multiple Contact Point System (MCP) designed to provide secure contact points via 2.8mm tabs. The housing material is high-grade nylon (PA 66 GF13), ensuring durability and resistance to environmental stresses while maintaining compactness with dimensions of 28mm height, 21mm width, and 23.5mm depth.

The connector features 9 contacts arranged in 3 rows, suitable for complex wiring harnesses. Contacts are manufactured from copper alloy and plated with tin, providing excellent conductivity and corrosion resistance under diverse operating conditions. The connector supports crimp termination for wire sizes up to 2.5 mm² FLR max, optimizing installation reliability and electrical performance.

Operating temperature range is from -40°C to 120°C, making it suitable for varied automotive environments, including engine compartments and interior applications. Compliance with EU ELV and EU RoHS ensures the product meets strict environmental and safety standards.

9-contact male connector with crimp termination. Durable nylon housing material with robust mechanical properties. Copper alloy contacts with tin plating for corrosion protection. Compact size supports ease of integration in automotive assemblies.

Wide operating temperature range from -40°C to 120°C. Designed to interface with MCP 2.8 mm tab receptacle housings.

Typical applications include automotive wiring harnesses requiring high-quality electrical connections in the power distribution system, sensor interfaces, and control modules. This connector enhances production efficiency by enabling quick assembly with secure mechanical and electrical characteristics.

For further design assistance, users can access 3D models, schematics, and footprints available through DesignSpark and other engineering platforms. This product is part of a broader TE Connectivity range designed to meet stringent automotive and industrial connector standards.
