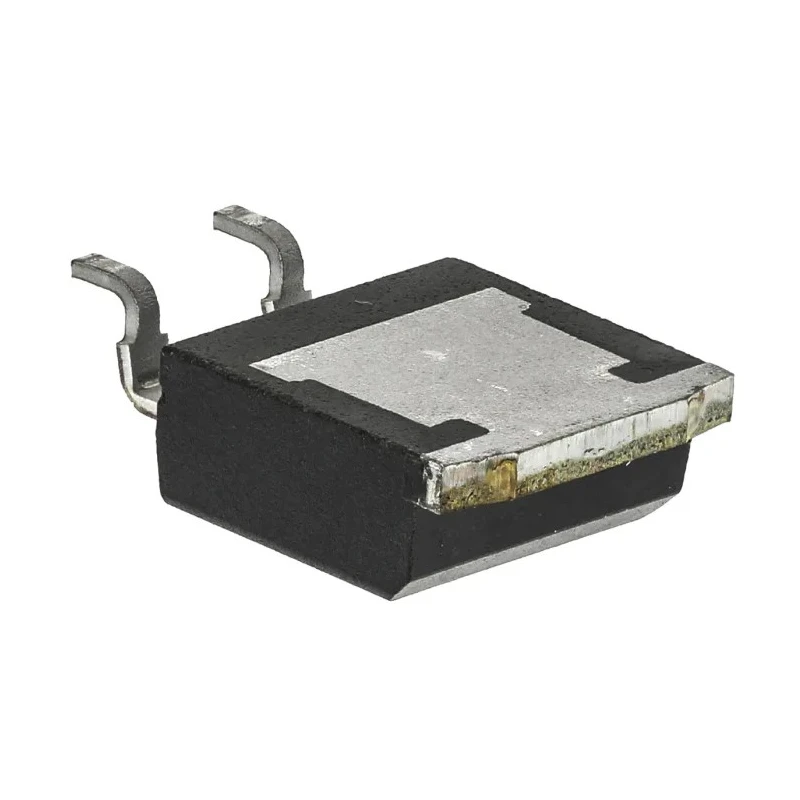

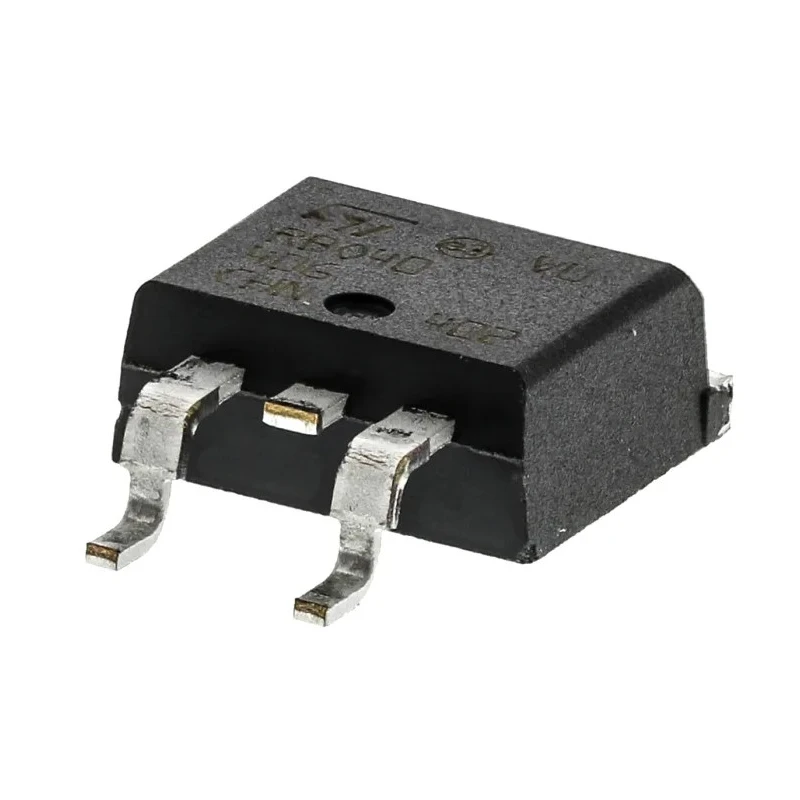

STMicroelectronics 3-Element Reverse Battery & TVS Diode, 1500 W Peak Pulse Power Dissipation, 3-Pin TO-263, RBO40-40G
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 4.6mm |
| Length | 10.28mm |
| Model | RBO40-40G |
| Width | 9.35mm |
| Mount Type | Surface |
| Series | RBO40 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Number of Elements per Chip | 3 |
| Clamping Voltage VC | 40V |
| Automotive Standard | AEC-Q100 |
| Minimum Breakdown Voltage Vbr | 24V |
| Maximum Reverse Stand-off Voltage Vwm | 2V |
| Peak Pulse Power Dissipation Pppm | 1500W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 37.5A |
| Maximum Reverse Leakage Current | 100μA |
| Clamping voltage | ±40V max |
Key Features
- Designed for battery reversal and load dump overvoltage protection.
- Handles peak pulse power dissipation of 1500 W for transient voltage suppression.
- Features a 3-pin TO-263 surface mount package ensuring compact PCB integration.
- Operates reliably within a temperature range of -40°C to 150°C.
- Minimum breakdown voltage of 24 V and maximum clamping voltage of 40 V.
- Capable of maximum peak pulse current of 37.5 A with low leakage current of 100 μA.
- Complies with automotive standard AEC-Q100 for quality and reliability.
- Compact dimensions measuring 10.28 mm length, 9.35 mm width, and 4.6 mm height.
Product Description
STMicroelectronics RBO40-40G is a 3-Element Reverse Battery and Transient Voltage Suppressor (TVS) diode designed for automotive applications needing protection against battery reversal and load dump conditions. It delivers robust transient voltage suppression with a peak pulse power dissipation rating of 1500 W in a compact TO-263 surface mount package with 3 pins.
The device offers a minimum breakdown voltage of 24 V and a maximum clamping voltage of 40 V. It supports peak pulse current up to 37.5 A and a maximum operating temperature up to 150°C. Its low reverse leakage current of 100 μA ensures minimal power loss during normal operation.
The RBO40-40G features a 3-element design within the chip, enhancing its protection capability against transient spikes and reversed battery polarity. With dimensions of 10.28 mm length, 9.35 mm width, and 4.6 mm height, it is well-suited for surface mounting in space-constrained automotive electronic circuits.
Certified to meet the stringent automotive standard AEC-Q100, this TVS diode offers reliable and durable transient protection, safeguarding sensitive electronics in automotive power distribution and control modules.
Designed for battery reversal and load dump overvoltage protection. 1500 W peak pulse power dissipation rating ensures robust transient voltage suppression. Compact 3-pin TO-263 surface mount package supports efficient PCB assembly.
Wide operating temperature range from -40°C to 150°C for automotive environments. Low leakage current enhances energy efficiency. Compliant with AEC-Q100 automotive standards for quality assurance. Precise clamping voltage protects circuits from overvoltage damage.
Ideal for automotive power and load dump applications requiring high transient immunity. Compact size and surface mount type enable easy integration into automotive electronic designs. Stable performance ensures protection over the device lifespan.
Ideal for use in automotive, industrial, and electronic applications requiring reliable overvoltage and reversed battery protection. The RBO40-40G helps ensure electronic system longevity and robustness under harsh electrical conditions. Explore more STMicroelectronics TVS Diodes and protective components available in the EnvMart catalog for enhanced system protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RBO40-40G has a peak pulse power dissipation rating of 1500 W, making it suitable for robust transient voltage suppression applications.
The minimum breakdown voltage for the RBO40-40G is 24 V, which helps in protecting circuits from overvoltage conditions.
The maximum clamping voltage of the RBO40-40G is 40 V, providing effective overvoltage protection for connected components.
This diode can handle a maximum peak pulse current of 37.5 A, ensuring it can manage significant transient events.
The operating temperature range for the RBO40-40G is from -40°C to 150°C, suitable for various automotive environments.
The dimensions of the RBO40-40G are 10.28 mm in length, 9.35 mm in width, and 4.6 mm in height, allowing for compact PCB integration.
The RBO40-40G features a surface mount type, specifically designed for efficient PCB assembly in space-constrained applications.
This model has 3 pins, which is standard for its TO-263 package type, facilitating easy integration into electronic circuits.
The RBO40-40G complies with the automotive standard AEC-Q100, ensuring its quality and reliability for automotive applications.
The RBO40-40G belongs to the RBO40 series, which includes devices designed for transient voltage suppression in automotive applications.
