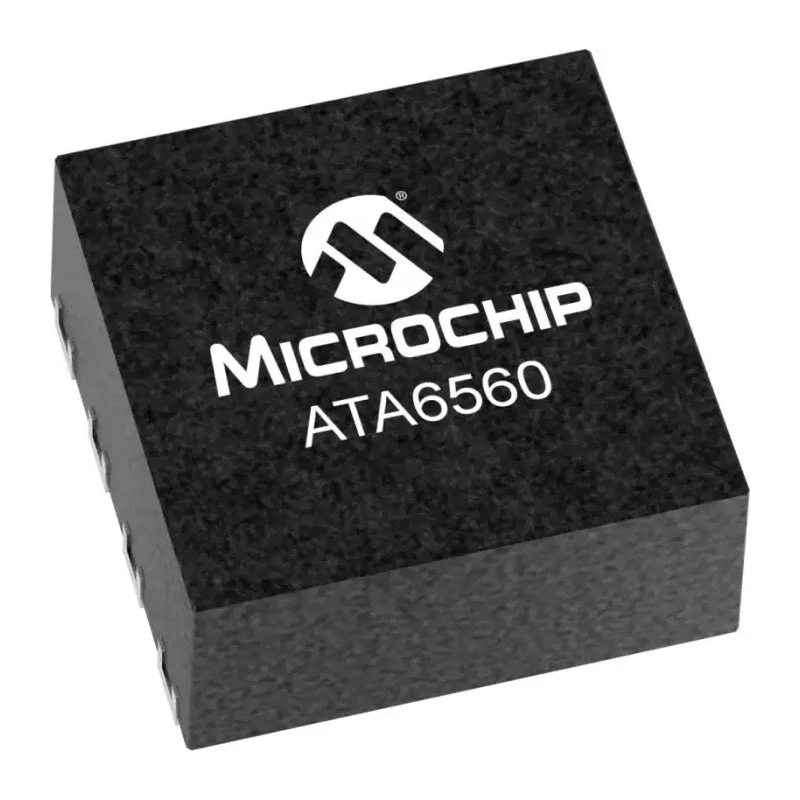

Microchip CAN Transceiver 5 Mbps 8-Pin High-Speed Interface IC ATA6560-GBQW-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | ATA6560-GBQW-N |
| Series | ATA6560 |
| Maximum Operating Temperature | 150°C |
| Sub Type | CAN Transceiver |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Supply Current | 5mA |
| Maximum Data Rate | 5Mbps |
| Number of Transceivers | 1 |
| ATA6560 | Silent Mode (Receive Only) |
Key Features
- Supports maximum data rate of 5 Mbps for rapid CAN communication.
- Features a single CAN transceiver in an 8-pin package.
- Operates over supply voltage range from 4.5V to 5.5V.
- Wide operating temperature range from -40°C to 150°C for harsh environments.
- Incorporates silent mode (receive only) to reduce bus traffic.
- High Electrostatic Discharge protection enhances device reliability.
- Low electromagnetic emission and high immunity for stable operation.
- Includes remote wake-up capability via CAN bus for power saving.
Product Description
Microchip ATA6560-GBQW-N is a high-speed CAN transceiver designed to interface a microcontroller CAN protocol controller with a two-wire CAN bus. Supporting data rates up to 5 Mbps, this 8-pin device provides reliable, differential transmit and receive capability suitable for demanding automotive and industrial environments.
This transceiver offers superior electromagnetic compatibility, including low electromagnetic emission and high immunity to disturbances, enhancing bus communication reliability.
The device features silent mode operation for receive-only functionality, remote wake-up via the CAN bus, and functionality that remains predictable under all supply conditions. It disengages from the bus when not powered to reduce interference.
Additional protections include high electrostatic discharge (ESD) capability, bus pin transient protection typical of automotive environments, short-circuit detection, over-temperature shutdown, and supply undervoltage detection on power pins.
Operating over a wide temperature range from -40°C to 150°C and supply voltages from 4.5V to 5.5V, the ATA6560 is engineered for harsh automotive applications. Compliance with ISO 11898-2, ISO 11898-5, and SAE J2284 standards assures compatibility and inter-operability within the CAN network.
Supports up to 5 Mbps CAN data transmission speed. Single transceiver in compact 8-pin package. Silent mode for receive-only bus monitoring. Enhanced ESD protection and transient voltage robustness. Remote wake-up feature conserves power during standby.
Short-circuit and over-temperature protections ensure device safety. Wide operating temperature suitable for automotive conditions. Low electromagnetic emission and high immunity to interference. Fully conforming to relevant industry ISO and SAE CAN standards.
This transceiver is suited for applications in automotive, industrial control systems, and other embedded CAN networks requiring high-speed communication, reliability, and compliance with international automotive and industrial standards.
Explore our broad range of semiconductor interface ICs and CAN transceivers to find the ideal solution for your industrial communication needs on EnvMart.
Explore more products in our CAN Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum data rate of 5 Mbps for rapid CAN communication.
It operates over a supply voltage range from 4.5V to 5.5V.
The device functions effectively over a wide temperature range from -40°C to 150°C, making it suitable for harsh environments.
This model contains a single CAN transceiver in an 8-pin package.
It includes high electrostatic discharge (ESD) protection, short-circuit detection, over-temperature shutdown, and supply undervoltage detection on power pins.
The supply current for this model is 5 mA.
Yes, it incorporates a silent mode for receive-only functionality to reduce bus traffic.
It complies with ISO 11898-2, ISO 11898-5, and SAE J2284 standards for compatibility and interoperability within the CAN network.
This transceiver is suited for automotive, industrial control systems, and other embedded CAN networks requiring high-speed communication and reliability.
The device is packaged in an 8-pin configuration, but specific dimensions are not provided in the data.
It features low electromagnetic emission and high immunity to disturbances, enhancing bus communication reliability.
Yes, it includes remote wake-up capability via the CAN bus for power saving during standby.
