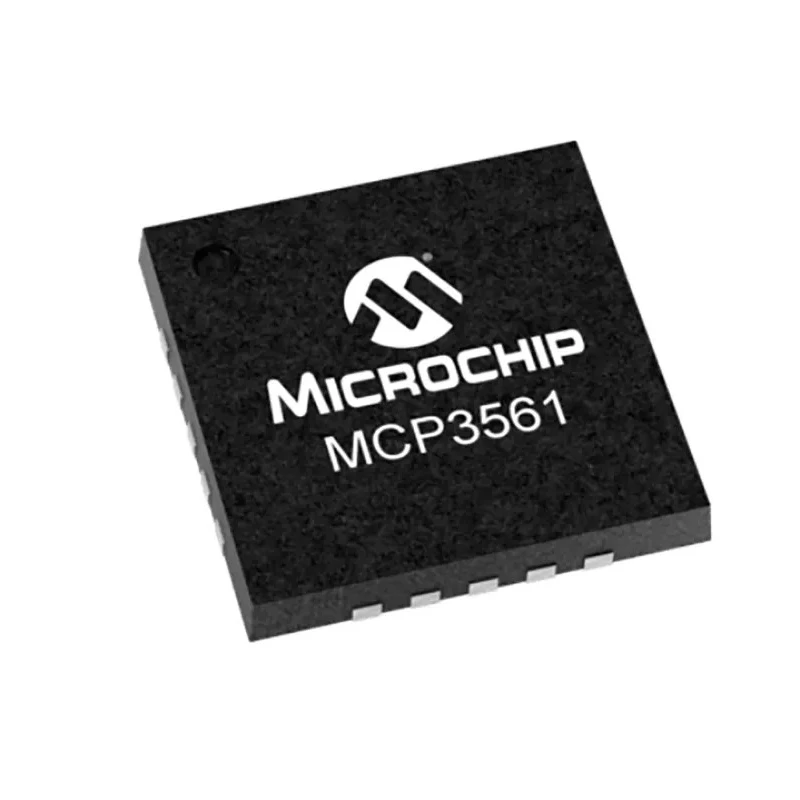

Microchip Delta Sigma 24-bit 153.6ksps Voltage Input ADC 20-Pin UQFN MCP3561T-E/NC
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 24 bit |
| Brand | Microchip |
| Height | 0.75mm |
| Length | 4mm |
| Model | MCP3561T-E/NC |
| Mount Type | Surface |
| Sampling rate | 153.6ksps |
| Series | MCP3561 |
| Input Type | Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | UQFN |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | Delta Sigma |
| Pin Count | 20 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.7V |
| Number of ADCs | 1 |
| Programmable Data Rates | Up to 153.6kSPS |
Key Features
- High resolution 24-bit Delta Sigma ADC suitable for accurate voltage measurement.
- Sampling rate of up to 153.6 kilosamples per second provides fast data acquisition.
- Single ADC channel supports one differential or two single-ended inputs.
- Programmable gain options ranging from 0.33 to 64 to optimize signal conditioning.
- Operates from 2.7V to 3.6V supply voltage ensuring broad compatibility.
- Wide operating temperature range from -40°C to 125°C suitable for automotive and industrial applications.
- 20-pin UQFN package offers compact, surface mount footprint of 4mm by 0.75mm height.
- SPI interface facilitates easy communication with microcontrollers and systems.
Product Description
Microchip MCP3561T-E/NC is an advanced Delta Sigma analogue-to-digital converter designed for high-precision voltage input measurements. It delivers 24-bit resolution and a sampling rate of up to 153.6ksps, ideal for industrial, automotive, laboratory, and scientific instrumentation requiring accurate data acquisition.
This ADC features a single high-performance ADC channel, configurable as one differential or two single-ended inputs. It supports programmable gain settings ranging from 0.33 to 64, allowing tailored signal amplification. The device operates within a 2.7V to 3.6V supply range with a compact 20-pin UQFN surface mount package measuring 4mm in length and 0.75mm in height, suitable for space-constrained PCB layouts.
Designed to meet automotive quality standards including AEC-Q100, MCP3561T-E/NC withstands operating temperatures from -40°C to 125°C. Communication utilizes an SPI interface for reliable, straightforward system integration. Additional features include an internal temperature sensor and clock selection flexibility between internal oscillator and external clock.
High resolution 24-bit Delta Sigma ADC suitable for accurate voltage measurement. Sampling rate of up to 153.6 kilosamples per second provides fast data acquisition. Single ADC channel supports one differential or two single-ended inputs.
Programmable gain options ranging from 0.33 to 64 to optimize signal conditioning. Operates from 2.7V to 3.6V supply voltage ensuring broad compatibility. Wide operating temperature range from -40°C to 125°C suitable for automotive and industrial applications.
20-pin UQFN package offers compact surface mount footprint for space-efficient designs. SPI interface facilitates easy communication with microcontrollers and systems. Internal temperature sensor and clock selection for versatile design options.
This ADC is ideal for industrial data converters, automotive electronics, instrumentation, and other applications requiring high resolution and fast sampling rates in a compact surface mount device.
Explore more semiconductor and analogue to digital conversion solutions on EnvMart to find complementary components and design tools.
Explore more products in our Analogue to Digital Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP3561T-E/NC has a maximum sampling rate of 153.6 kilosamples per second (ksps).
It offers a resolution of 24 bits for accurate voltage measurements.
This ADC operates within a supply voltage range of 2.7V to 3.6V.
It supports one differential input or two single-ended inputs.
The operating temperature range is from -40°C to 125°C, suitable for automotive and industrial applications.
It comes in a 20-pin UQFN package, which has a compact footprint of 4mm in length and 0.75mm in height.
The MCP3561T-E/NC utilizes an SPI interface for communication with microcontrollers and systems.
Yes, it features programmable gain options ranging from 0.33 to 64 to optimize signal conditioning.
It is designed to meet the AEC-Q100 automotive quality standard.
The architecture of this ADC is Delta Sigma, which is known for its high precision in voltage measurements.
It includes an internal temperature sensor and offers clock selection flexibility between an internal oscillator and an external clock.
This model has a single ADC channel.
