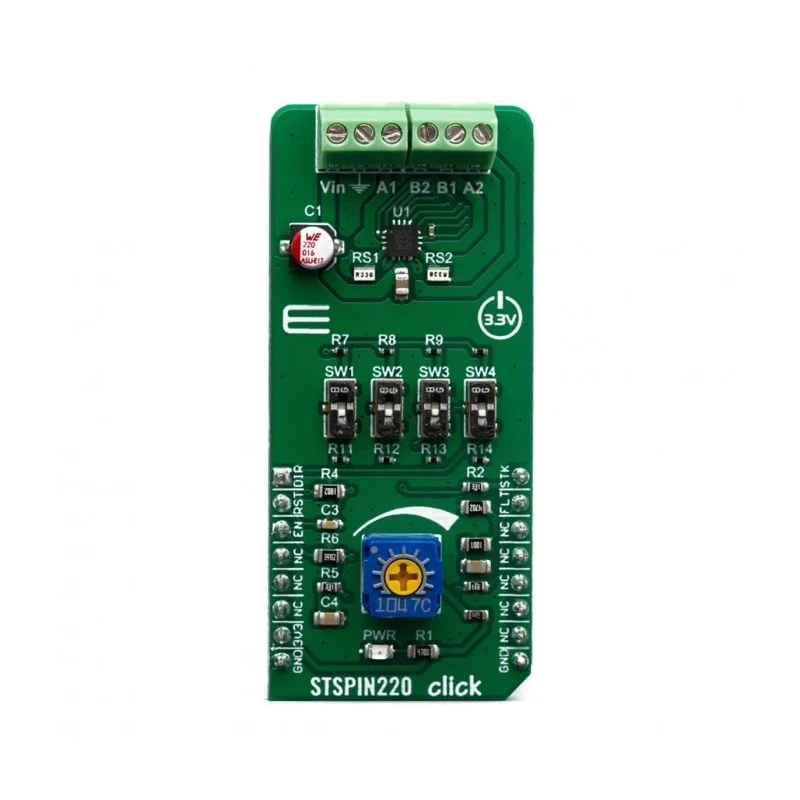

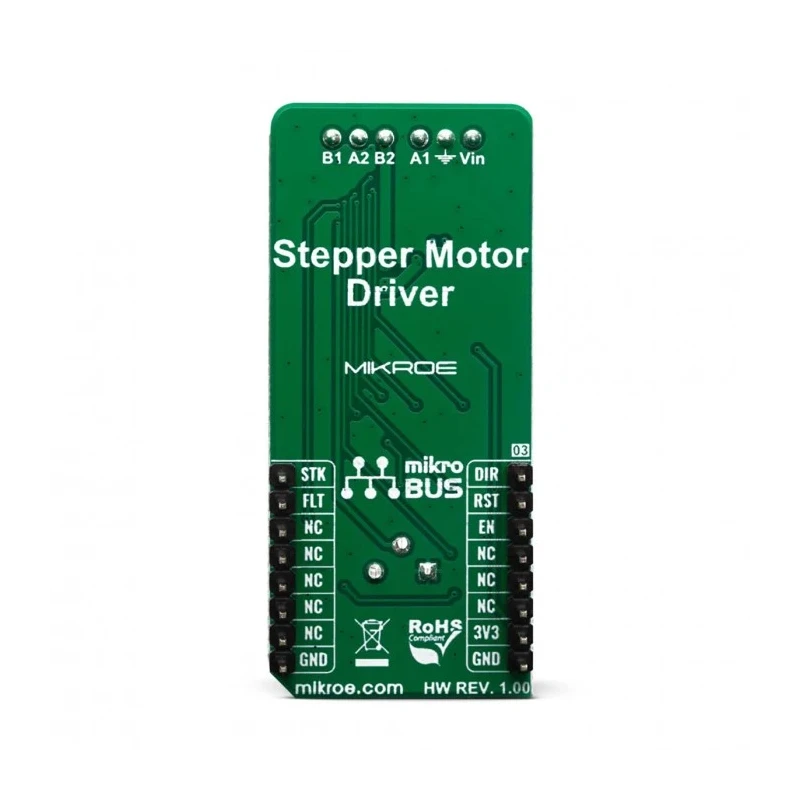

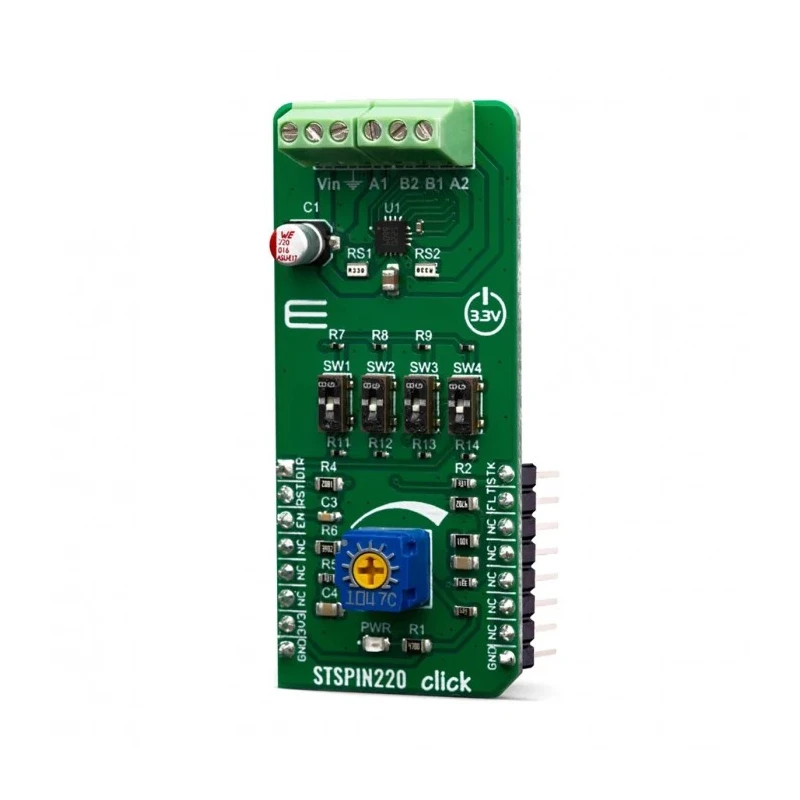

MikroElektronika Development Kit STSPIN220 Click for STSPIN220
Specifications
| Country of Origin | India |
|---|---|
| Brand | MikroElektronika |
| Model | STSPIN220 |
| Kit Classification | Click Board |
| Featured Device | STSPIN220 |
| Kit Name | STSPIN220 Click |
Key Features
- The STSPIN220 chip includes low ON resistance MOSFETs in a compact 3x3mm QFN package.
- The output stage supports PWM current control with fixed OFF time and multiple protection features.
- Supports step motor voltage from 1.8V to 10V, with up to 1.3A current per bridge.
- Fully compatible with mikroBUS sockets and supported by a mikroSDK compliant software library.
- Ideal for power, motor, and robotics development projects requiring efficient stepper motor control.
- Comes as a fully tested and ready-to-use Click board module.
Product Description
The MikroElektronika STSPIN220 Click Development Kit is designed for high-efficiency stepper motor driving, utilizing the low voltage STSPIN220 driver from the STSPIN2 series. This device is highly optimized for battery-powered, low voltage applications, featuring the lowest standby current on the market, maxing at 80 nA.
The stepper motor driver integrates low ON resistance MOSFETs in a small 3x3mm QFN package, providing robust output stage performance. It implements PWM current control with a fixed OFF time, accompanied by a full set of protection features ensuring reliable operation in industrial, robotics, and embedded system environments.
Operating voltage range for step motors is from 1.8 volts up to 10 volts, capable of driving currents up to 1.3 amps per bridge. This flexibility makes it suitable for a wide range of stepper motors in automation, manufacturing, and development projects.
The STSPIN220 Click board is compatible with mikroBUS sockets and supported by a fully compliant mikroSDK library, which simplifies embedded software development and integration. The Click board arrives fully tested and ready for immediate deployment in prototype or production applications.
The compact driver design offers low power consumption and advanced motor control capabilities. Its high integration reduces external components, minimizing system size and complexity. Protection features include overcurrent, thermal shutdown, and undervoltage lockout for safe operation.
Ideal for use in power, motor, and robotics development toolkits requiring precise stepper motor control. Supports educational, industrial, laboratory, and embedded system uses. This product belongs to the development tools and single board computers category at EnvMart, facilitating enhanced application development and prototyping.
Explore more products in our Development Tools & Single Board Computers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage range for step motors with this model is from 1.8 volts to 10 volts.
It can drive currents up to 1.3 amps per bridge.
The STSPIN220 chip is housed in a compact 3x3mm QFN package.
It is fully compatible with mikroBUS sockets.
The STSPIN220 Click board includes overcurrent protection, thermal shutdown, and undervoltage lockout.
This development kit is ideal for power, motor, and robotics development projects, as well as educational, industrial, and embedded system uses.
The maximum standby current for the STSPIN220 driver is 80 nA, making it highly optimized for battery-powered applications.
Yes, it is supported by a mikroSDK compliant software library, facilitating embedded software development.
It is classified as a Click Board within the development kit category.
The chip is designed in a compact 3x3mm size, which aids in reducing system size and complexity.
The country of origin for this product is India.
It implements PWM current control with a fixed OFF time for efficient motor driving.
