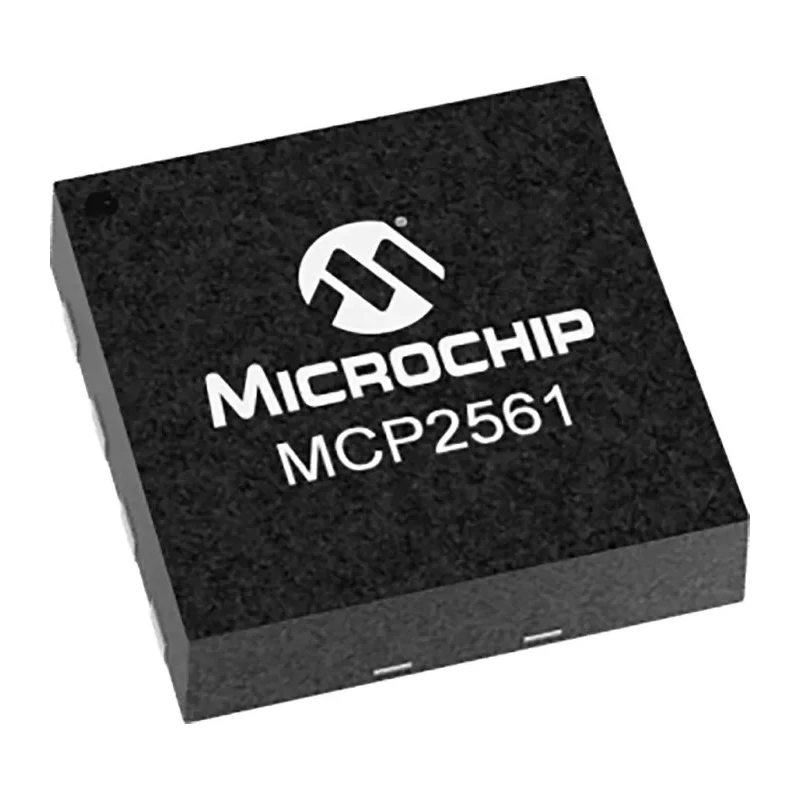

Microchip CAN Transceiver 1 Mbps, 8-Pin DFN MCP2561-E/MF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 950μm |
| Length | 3mm |
| Model | MCP2561-E/MF |
| Width | 3mm |
| Mount Type | Surface |
| Series | MCP2561 |
| Maximum Operating Temperature | 125°C |
| Package Type | DFN |
| Sub Type | CAN Transceiver |
| Minimum Operating Temperature | -40°C |
| Interface Type | ISO 11898-2, ISO 11898-5 |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Supply Current | 70mA |
| Maximum Data Rate | 1Mbps |
| Number of Transceivers | 1 |
| Maximum Propagation Delay | 120 ns |
| Loop Delay Symmetry | -10%/+10% (2 Mbps) |
Key Features
- High-speed CAN transceiver optimized for 1 Mbps operation.
- Package type is compact 3 mm x 3 mm DFN with 8 pins.
- Supports supply voltage range of 4.5 V to 5.5 V.
- Low power standby mode and 70 mA typical supply current during operation.
- Wide operating temperature range from -40°C to 125°C.
- ESD protection included for enhanced reliability.
- Compliant with automotive standard AEC-Q100.
- Interface type is ISO 11898-2 and ISO 11898-5 compliant.
Product Description
Microchip MCP2561-E/MF is a high-speed CAN Transceiver IC designed for automotive and industrial applications requiring robust communication via CAN bus. It supports a maximum data rate of 1 Mbps compliant with CAN specifications, packaged in a compact 8-pin DFN form factor measuring 3 mm by 3 mm with a height of 950 μm.
This transceiver operates on a power supply voltage from 4.5 V up to 5.5 V and incorporates low-power standby mode with a typical operational supply current of 70 mA, making it energy efficient for embedded systems.
Engineered for harsh environments, it supports a wide operating temperature range from -40°C to 125°C and includes ESD protection, enhancing its durability in automotive and industrial settings.
The MCP2561-E/MF conforms to automotive standards such as AEC-Q100 and supports interface standards ISO 11898-2 and ISO 11898-5. Additional features include guaranteed loop delay symmetry and a maximum propagation delay of 120 ns to support CAN FD at higher data rates, improving network performance and reliability.
The device’s compact DFN package and surface mount configuration facilitate easy integration on printed circuit boards (PCBs) in automotive, industrial, laboratory, and manufacturing applications requiring reliable CAN bus communication.
High-speed CAN transceiver optimized for 1 Mbps operation. Package type is compact 3 mm x 3 mm DFN with 8 pins. Supports supply voltage range of 4.5 V to 5.5 V. Low power standby mode and 70 mA typical supply current during operation.
Wide operating temperature range from -40°C to 125°C. ESD protection included for enhanced reliability. Compliant with automotive standard AEC-Q100. Interface type is ISO 11898-2 and ISO 11898-5 compliant. Features loop delay symmetry for CAN FD support, with maximum propagation delay of 120 ns.
Height is 950 μm, suitable for surface mount applications.
EnvMart offers a comprehensive range of semiconductor interface ICs for industrial, automotive, laboratory, and manufacturing sectors to ensure robust communication protocols. Browse our extensive Microchip CAN Interface ICs and related products for advanced electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum data rate of 1 Mbps, compliant with CAN specifications.
It operates within a supply voltage range of 4.5 V to 5.5 V.
The device is packaged in a compact 8-pin DFN form factor measuring 3 mm x 3 mm, with a height of 950 μm.
It supports a wide operating temperature range from -40°C to 125°C.
This transceiver is compliant with the automotive standard AEC-Q100.
The typical supply current during operation is 70 mA.
It supports ISO 11898-2 and ISO 11898-5 interface standards.
The maximum propagation delay is 120 ns, which supports CAN FD at higher data rates.
It is designed for surface mount applications.
This unit includes one transceiver.
It includes ESD protection for enhanced reliability in harsh environments.
The loop delay symmetry is -10%/+10% at 2 Mbps.
