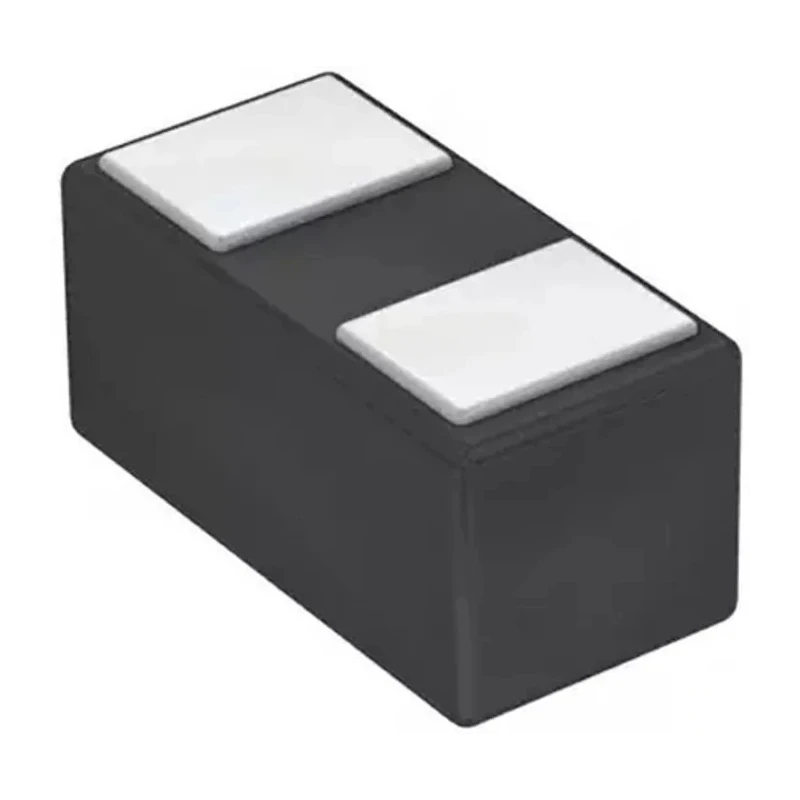

STMicroelectronics 1-Element Bi-Directional ESD Protection Diode 20 W 2-Pin 0201 ESDAVLC5-1BF4

The STMicroelectronics ESDAVLC5-1BF4 is a single element bi-directional ESD Protection Diode designed for high-performance transient voltage suppression. It is engineered to protect sensitive electronic components from electrostatic discharge events by quickly clamping voltage spikes up to a peak pulse power rating of 20 W.

This compact diode comes in a 2-pin 0201 surface mount package measuring 0.63 mm in length, 0.33 mm in width, and 0.32 mm in height, making it suitable for dense electronic assemblies. Its bi-directional configuration enables protection against both positive and negative transient voltages.

With a minimum breakdown voltage (Vbr) of 5.8 V and maximum reverse stand-off voltage (Vwm) of 5.3 V, it effectively shields circuits operating at low voltage levels. The maximum peak pulse current (Ippm) is rated at 1.7 A, while the clamping voltage (Vc) is 11.7 V, providing robust voltage suppression capability.

This diode operates reliably across a broad temperature range from -55°C to +150°C, making it suitable for industrial, automotive, and consumer electronics applications. Its maximum reverse leakage current is limited to 100 nA, ensuring minimal leakage and power loss during normal operation.

Designed for surface mount technology (SMT), the ESDAVLC5-1BF4 facilitates automated assembly processes. Its single element configuration simplifies the protection circuit design.

This diode is applicable in protecting electronic components within industrial controls, computing equipment, communication devices, and consumer electronics, where ESD events may compromise device integrity and functionality.

Customers can leverage this diode in high-density PCB layouts needing compact, reliable, and efficient transient voltage suppression in demanding environments. This diode provides bi-directional ESD protection suitable for sensitive circuits.

It supports a maximum peak pulse current of 1.7 A for robust surge tolerance. The device operates within a temperature range of -55°C to 150°C, ensuring durability in harsh environments. The compact package size is 0.63 mm length by 0.33 mm width and 0.32 mm height.

Maximum reverse leakage current is extremely low at 100 nA, minimizing power loss. Clamping voltage is rated at 11.7 V for effective voltage suppression. Designed for surface mounting, it simplifies assembly in modern PCB layouts.

Single element configuration enhances ease of integration. Explore the full range of STMicroelectronics TVS diodes for your next electronic design on EnvMart.
