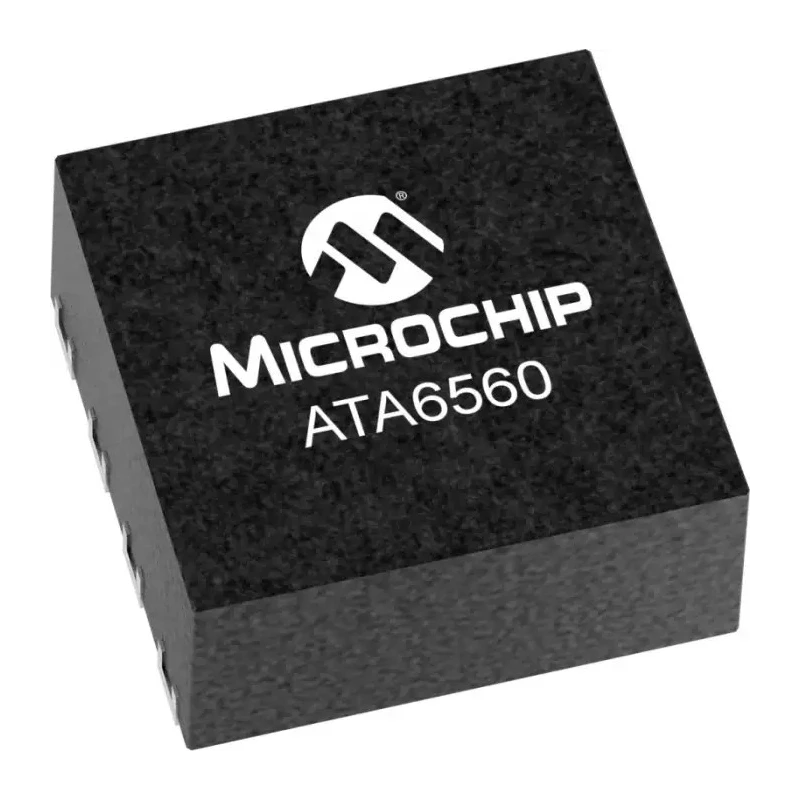

Microchip CAN Transceiver 5 Mbps, 8-Pin High-Speed Interface IC ATA6560-GBQW-N

Microchip ATA6560-GBQW-N is a high-speed CAN transceiver presented in an 8-pin package, designed to interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus.

This device supports communication speeds up to 5 Mbps, suitable for demanding automotive CAN applications requiring robust and fast data transmission.

The transceiver boasts low electromagnetic emission and high electromagnetic immunity, improving system reliability in noisy automotive environments. It complies fully with ISO 11898-2, ISO 11898-5, and SAE J2284 standards, ensuring seamless integration in standard CAN networks.

Operating from a supply voltage range of 4.5 V to 5.5 V and a low supply current of 5 mA, it is optimized for efficiency. The device withstands operating temperatures from -40°C to 150°C, making it highly suitable for harsh automotive and industrial conditions.

Key features include Silent Mode (receive-only) operation, remote wake-up via CAN bus, high ESD protection on bus pins, and functionality that is predictable under all supply conditions. It also incorporates protection against CANH/CANL short circuits and temperature excesses, plus under-voltage detection on VCC and VIO pins.

This transceiver disengages from the bus when not powered, preventing bus disturbances. Its TXD dominant time-out function ensures safety during communication errors.

Microchip ATA6560-GBQW-N is ideal for automotive, industrial, and commercial CAN applications requiring reliable, fast, and robust physical layer communication between controllers and the CAN bus.

Please browse EnvMart's Semiconductor category for more interface ICs and CAN transceivers from Microchip and other leading brands. Supports maximum data rate of 5 Mbps for fast communication. Designed with a single CAN transceiver for efficient bus interfacing.

Operates with supply voltage range from 4.5 V to 5.5 V. Low supply current of 5 mA supports low power applications. Rated for operating temperatures from -40°C up to 150°C for automotive reliability. Includes Electrostatic Discharge (ESD) protection ensuring robustness.

Fully compliant with ISO 11898-2, ISO 11898-5, and SAE J2284 standards. Features Silent Mode for receive-only operation and remote wake-up capability. Designed to provide improved electromagnetic compatibility and immunity.

Built to handle short-circuit, over-temperature, and under-voltage conditions on bus lines.
