Microchip Complex Programmable Logic Device EEPROM 128 Cells, 80 I/O, 15 ns, 14 Logic Blocks, In System ATF1508ASV-15AU100

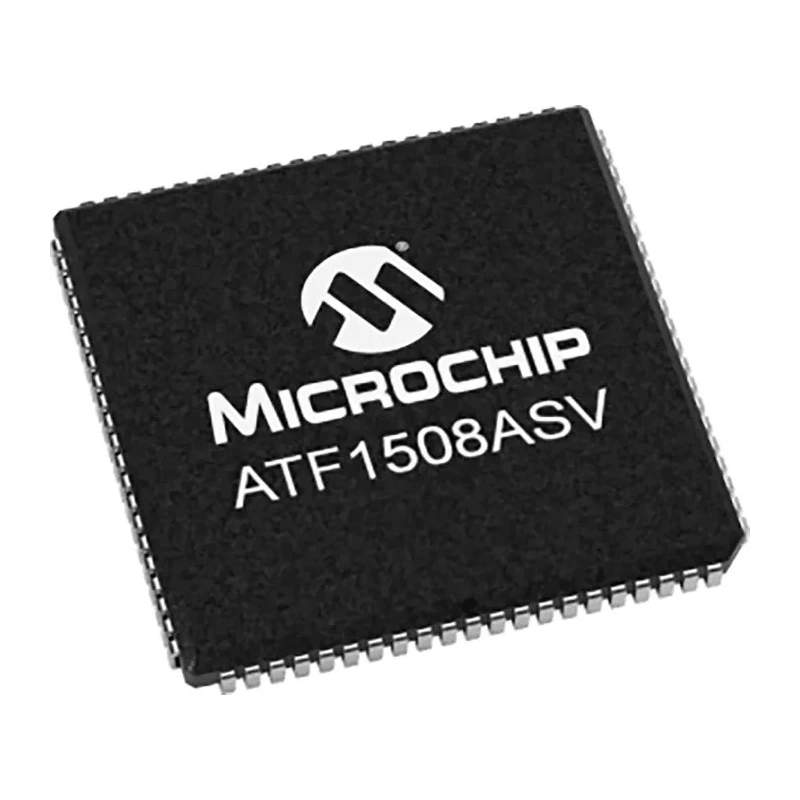

Microchip ATF1508ASV-15AU100 complex programmable logic device EEPROM features 128 macro cells and 14 logic block elements, designed for advanced digital electronics requiring high-speed logic integration. The device supports 80 bidirectional user I/O pins and four dedicated inputs depending on package type, packaged in a 100-pin surface mount TQFP form factor.

Equipped with EEPROM memory type, this CPLD offers robust re-programmability and in-system programmability via JTAG, facilitating flexible design iterations and field updates. Operating with a supply voltage between 3 V and 3.6 V and advanced power management technology, it ensures high efficiency and low power consumption in industrial applications.

The device operates at a maximum propagation delay of 15 ns and supports an operating frequency up to 77 MHz, making it suitable for complex logic sequences in embedded systems, telecommunications, and industrial controls. It withstands operating temperatures from -40°C to 85°C, meeting industrial and automotive system standards.

Features include individual output enable control, integrated power-on reset, brown-out reset, and security fuse protection, ensuring reliable and secure operation in demanding environments. The 1.05 mm height and 14.1 mm length dimensions facilitate compact PCB layouts.

14 logic block elements allow flexible logic configuration. 80 bidirectional I/O pins for broad interfacing capability. EEPROM memory type for electrical erasability and re-programmability. Surface mount TQFP package with 100 pins for compact design.

In-system programmability simplifies device updates via JTAG. Maximum operating frequency of 77 MHz suits high-performance designs. Thermal range from -40°C to 85°C for industrial and automotive use. Advanced power management reduces energy consumption.

Individual output enable control supports precise output handling. Security fuse feature enhances operational safety. This product is ideal for digital design engineers, embedded system developers, and professionals in telecommunications, industrial automation, and electronic product design.
