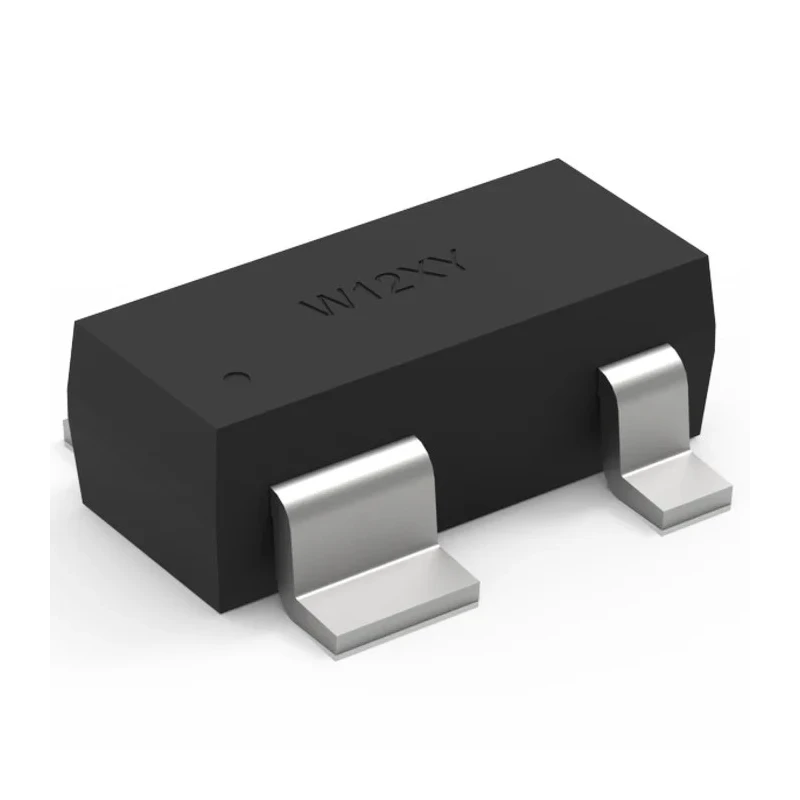

Wurth Elektronik 2-Element Uni-Directional TVS Diode Array, 4-Pin SOT-143, 6V Breakdown Voltage, 6A Peak Pulse 8240026
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1mm |
| Length | 2.95mm |
| Model | 8240026 |
| Width | 1.3mm |
| Mount Type | Surface |
| Series | WE-TVS |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-143 |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| Pin Count | 4 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 9V |
| Diode Configuration | Complex Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 6A |
| Maximum Reverse Leakage Current | 5μA |
Key Features
- Uni-directional diode configuration in a compact SOT-143 4-pin surface mount package.
- Designed for electrostatic discharge (ESD) protection of USB, HDMI, DVI, Ethernet, and serial bus interfaces.
- Clamping voltage of 9V ensures strong transient voltage suppression.
- Operates safely over a temperature range of -55°C to 85°C.
- Low leakage current of 5μA maintains signal integrity in sensitive circuits.
- Contains two elements per chip for enhanced protection performance.
- Manufactured in China ensuring consistent quality and reliability.
- Maximum peak pulse current of 6A protects equipment from sudden surges and spikes.
Product Description
Wurth Elektronik 8240026 is a 2-element uni-directional TVS diode array designed for robust electrostatic discharge protection in sensitive electronic applications. Housed in a compact 4-pin SOT-143 surface mount package, it delivers a minimum breakdown voltage of 6V and is capable of handling peak pulse currents up to 6A.
This diode array is engineered specifically for safeguarding interfaces such as USB 2.0, HDMI, DVI, Ethernet, Firewire, and various serial bus technologies against transient voltage events. The uni-directional configuration ensures effective suppression of voltage spikes while maintaining circuit integrity.
With a clamping voltage of 9V, the device limits overvoltage to safe levels, protecting downstream components from damage. Its low maximum reverse leakage current of 5μA supports sensitive signal lines without significant power loss or interference.
Operating reliably over a wide temperature range from -55°C to 85°C, this TVS Diode Array suits industrial, laboratory, and commercial applications in harsh environments. The compact physical footprint (2.95mm length, 1.3mm width, and 1mm height) facilitates integration into densely packed printed circuit boards.
The device includes two diode elements per chip, allowing enhanced protection in compact form. Uni-directional TVS diode configuration in SOT-143 package. 2 Elements per chip for improved protection. 6V minimum breakdown voltage and 9V clamping voltage.
6A maximum peak pulse current withstand capability. Operating temperature range -55°C to 85°C. Low leakage current of 5μA optimizes signal integrity. Compact dimensions suitable for space-constrained designs. Ideal for ESD protection in USB, HDMI, Ethernet, and serial interfaces.
Reliable electrostatic discharge protection for industrial and commercial electronics. Explore Wurth Elektronik’s range of high-quality semiconductor components and related products at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of this model is 6V.
This unit can withstand a maximum peak pulse current of 6A.
The clamping voltage is 9V, which helps to limit overvoltage to safe levels.
It operates safely over a temperature range of -55°C to 85°C.
The dimensions are 2.95mm in length, 1.3mm in width, and 1mm in height.
This model contains two elements per chip, providing enhanced protection performance.
It is designed for ESD protection of USB, HDMI, DVI, Ethernet, and serial bus interfaces.
The maximum reverse leakage current is 5μA, which helps maintain signal integrity.
This diode array uses a surface mount type for installation.
The test current is specified at 1mA.
It is manufactured in China, ensuring consistent quality and reliability.
The configuration is uni-directional, designed for effective suppression of voltage spikes.
