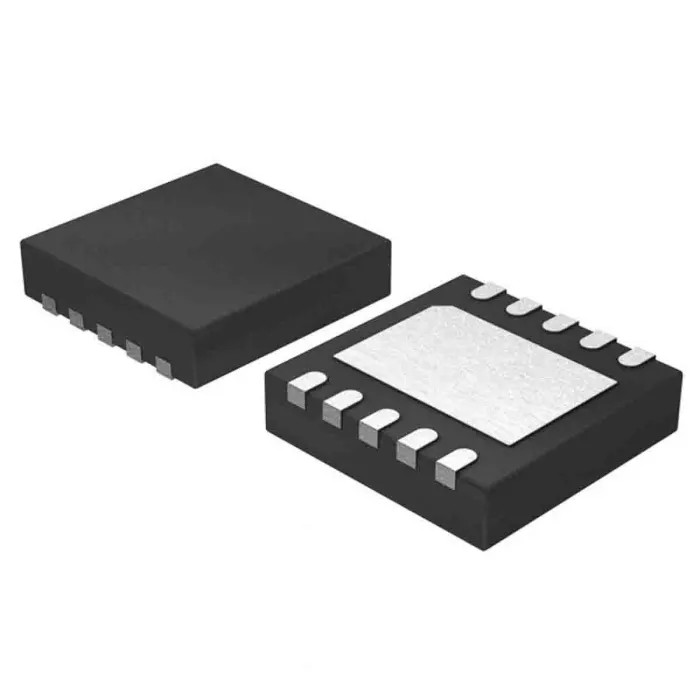

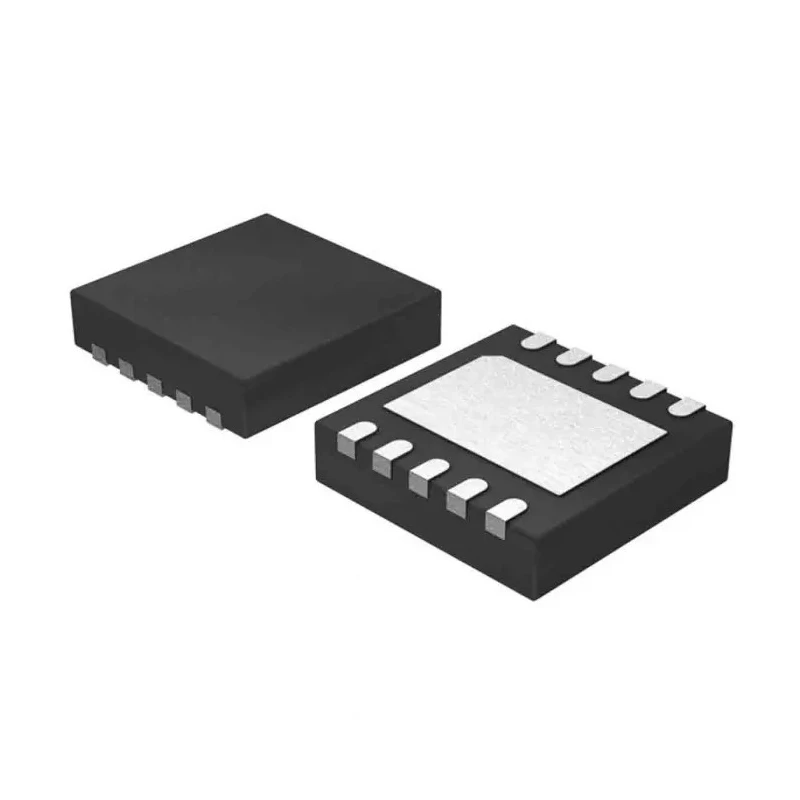

onsemi Electronic Fuse 18V Surface Mount, 4.2A Limit, WDFN 10-Pin NIS5420MT1TXG

The onsemi NIS5420MT1TXG Electronic Fuse is a precision-engineered power management IC, designed to provide high-reliability, resettable protection for sensitive electronic circuits. Suitable for demanding industrial and electronic applications, this component functions as a robust electronic fuse, protecting critical loads from harmful overvoltage and overcurrent events up to 18V input.

Engineered to maintain system uptime and enhance circuit reliability, the NIS5420MT1TXG monitors input voltage and limits current to 4.2A, with an output current capacity of up to 4.6A. Integrated thermal protection ensures safe shut-down if excessive heat is detected, proactively safeguarding connected components from catastrophic failures. The internal power device design eliminates the need for external current shunt resistors, simplifying layout and reducing bill of materials cost.

With a wide operating temperature range from -40°C to 125°C and a compact WDFN 10-pin surface mount package (0.8mm height, 3mm length), this device can be confidently integrated into space-constrained PCBs used in hard drives, advanced storage systems, and protection circuits for consumer electronics, industrial controls, and automation equipment. The NIS5420 series is particularly valued for buffering load devices from excessive input voltages, one of the primary causes of sensitive circuit damage in modern power architectures.

Key application areas for this electronic fuse include industrial automation, embedded systems, computing hardware, power sequencing circuits, SSDs, and other semiconductor environments where critical, resettable overcurrent protection is essential. Its design excludes external current shunt requirements and provides built-in thermal shutoff for comprehensive safeguarding of your electronics investment.

As a surface-mount component, it is well suited for automated assembly lines and can be easily adopted into high-volume manufacturing processes. The 10-pin footprint ensures ease of placement and solid electrical/mechanical reliability over time. No automotive or special standards are present, so this fuse is intended for general industrial and commercial electronic use.

Explore more advanced circuit protection devices, power ICs, and onsemi solutions in the Electronic Fuse and Power Management ICs sections to ensure optimal safety and performance in your next design.
