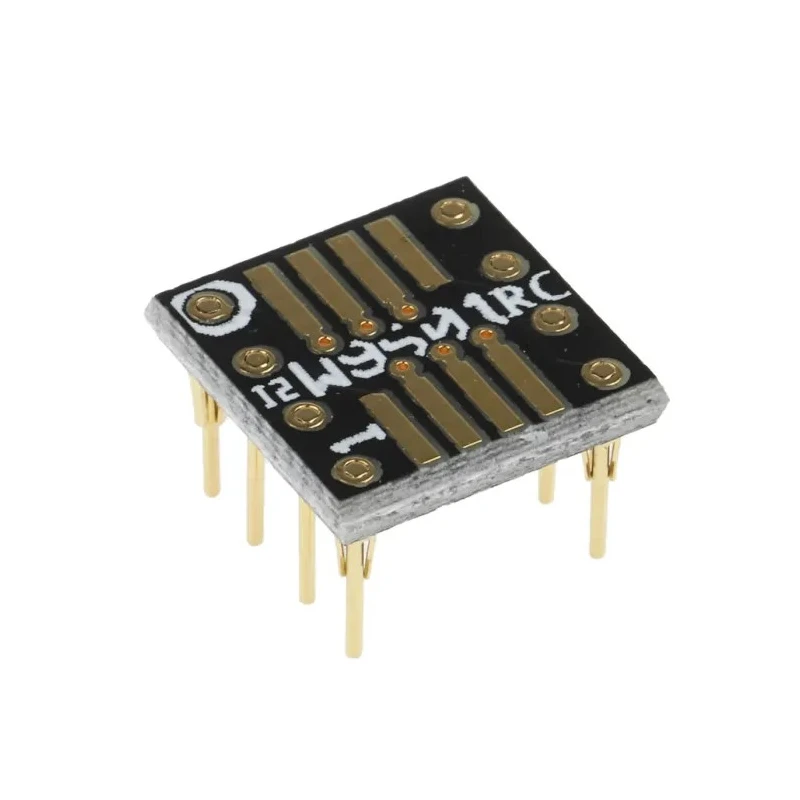

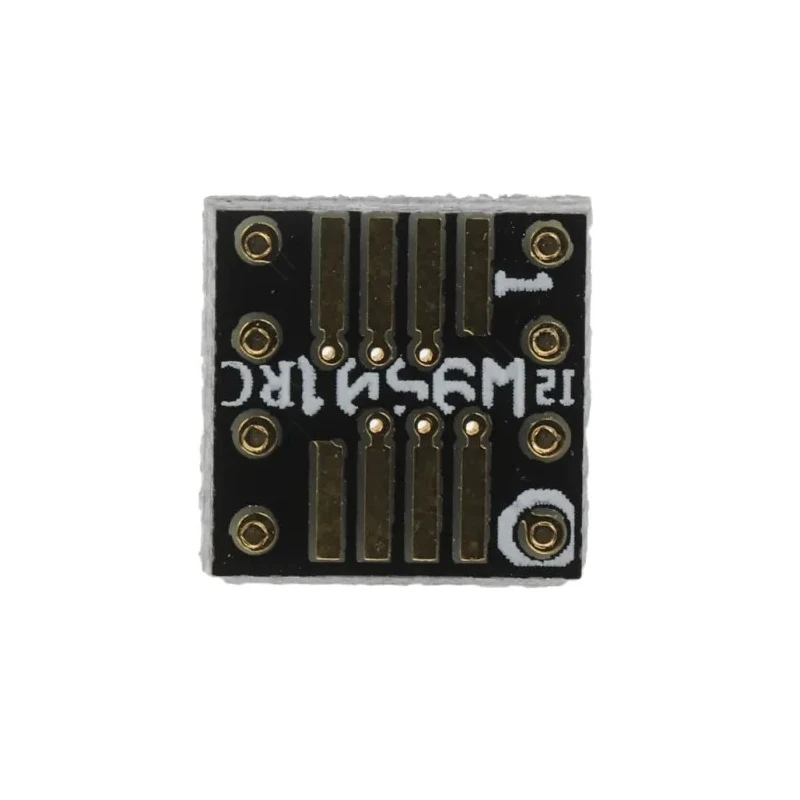

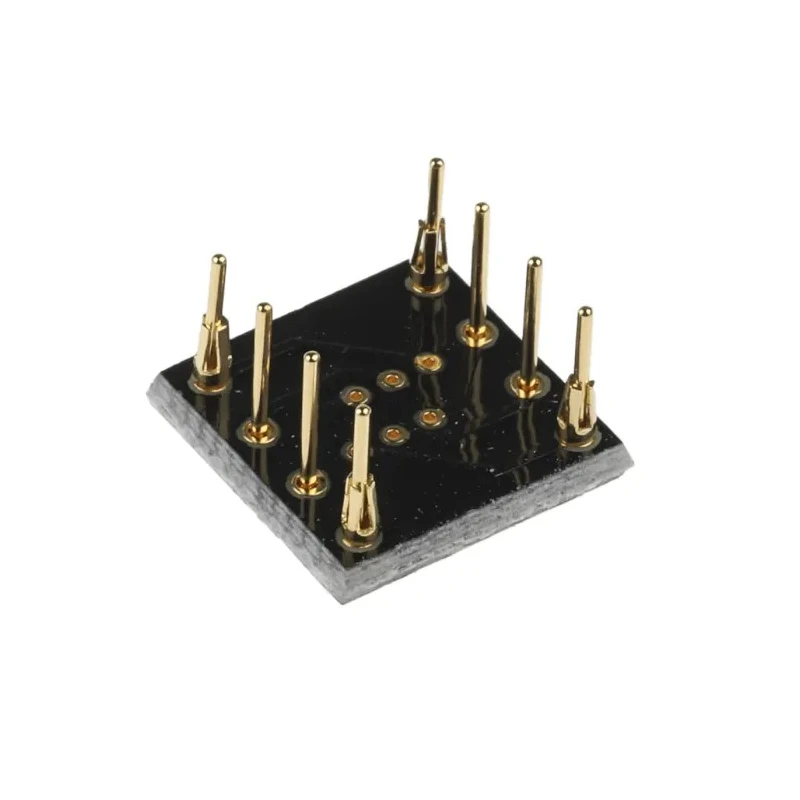

Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter SOP to DIP W9501RC

Free Delivery in India | Lowest Global Shipping Charges

Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter SOP to DIP W9501RC

Name: Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter SOP to DIP W9501RC
Brand: Winslow
SKU: 147867
Price: 3.93 USD
Availability: InStock



Category IC Socket Adapter Brand Winslow Condition New

Specifications

Country of Origin	United Kingdom
Brand	Winslow
Orientation	Straight
Model	W9501RC
Mount Type	Through Hole
Housing Material	FR4
Contact Material	Brass
Pitch	2.54mm
Contact Plating	Gold over Nickel
Connection Gender A	Female
Number of Contacts A	8
Connection Gender B	Male
PCB	Epoxy Fibreglass FR4
Connection A	SOP
Connection B	DIP
CIF 1.27 mm, 2.54 mm Pitch IC Socket AdapterBrand	CIF

Key Features

Designed for through hole mounting on PCB using epoxy fibreglass FR4 material.
Features 8 pins with female SOP connection and 8 pins male DIP connection.
Gold over nickel contact plating ensures reliable conductivity and corrosion resistance.
Brass contact material with straight orientation for secure and stable connections.
Housing made from durable FR4 material for electrical insulation and strength.
Ideal for prototyping and board design adaptation, avoiding redesign costs.
Manufactured in the United Kingdom to high standards with no certifications applicable.

Product Description

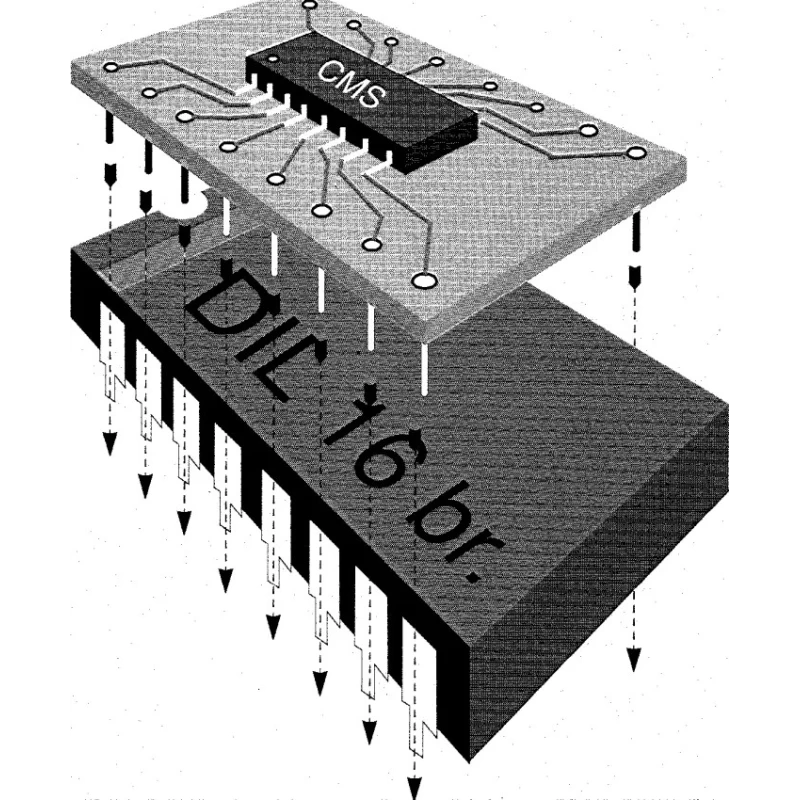

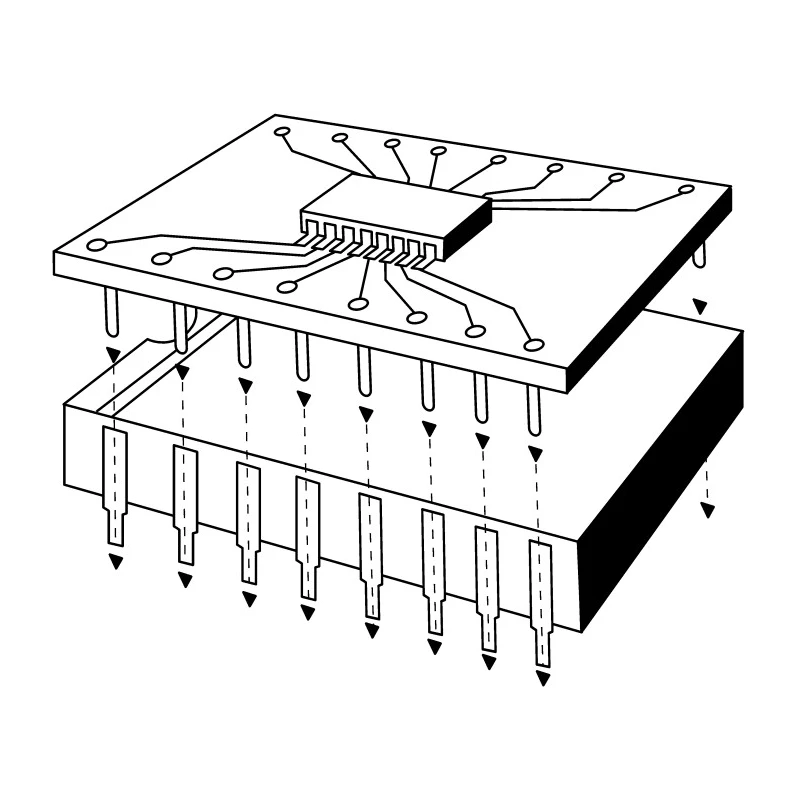

Winslow W9501RC Straight Through Hole Mount IC Socket Adapter provides seamless conversion between Small Outline IC (SOIC) and Dual In-Line Package (DIP) formats with a standard 2.54 mm pitch, enabling versatile circuit board design flexibility.

This adapter features 8 female SOP contacts on one side and 8 male DIP contacts on the other, suitable for mounting through hole on PCBs fabricated from epoxy fibreglass FR4, a widely used durable PCB substrate.

The contacts are brass plated with gold over nickel to ensure excellent electrical conductivity and resistance to corrosion over extended operating life. Its straight orientation and through hole mount type allow stable mechanical and electrical connection in applications requiring adaptivity between package types.

The housing material is FR4, providing necessary electrical insulation and robustness for industrial and laboratory usage in electronics manufacturing, testing, and prototyping. This product is manufactured in the United Kingdom, guaranteeing consistent quality. It does not carry specific certifications or standards approvals.

These IC socket adapters are essential in electronic component design, enabling engineers to adapt SOIC package ICs to DIP-compatible boards, reducing redesign costs and accelerating product development cycles.

Designed for through hole mounting using epoxy fibreglass FR4 PCB substrate. 8 pins female SOP to 8 pins male DIP connection for seamless package adaptation. Gold over nickel plating for reliable signal integrity and corrosion resistance.

Robust brass contact material with straight orientation for mechanical stability. Durable FR4 housing ensuring electrical insulation and physical strength. Manufactured in the United Kingdom with high quality manufacturing processes.

Suitable for electronics prototyping, testing, and manufacturing environments. Browse the IC Socket Adapter category on EnvMart for comprehensive selections of socket adapters and related electronic components to support your project needs.
