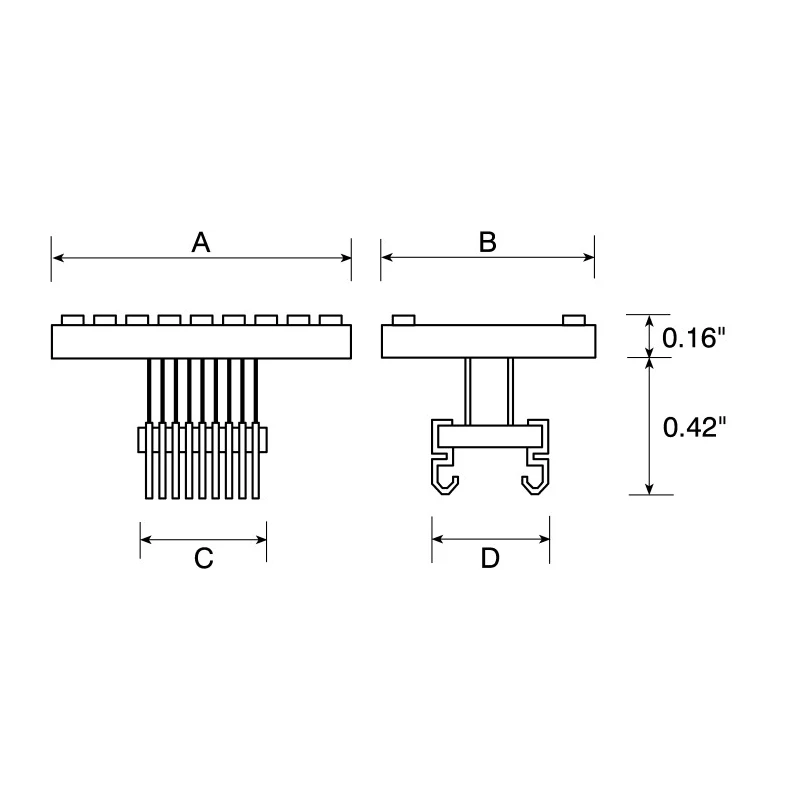

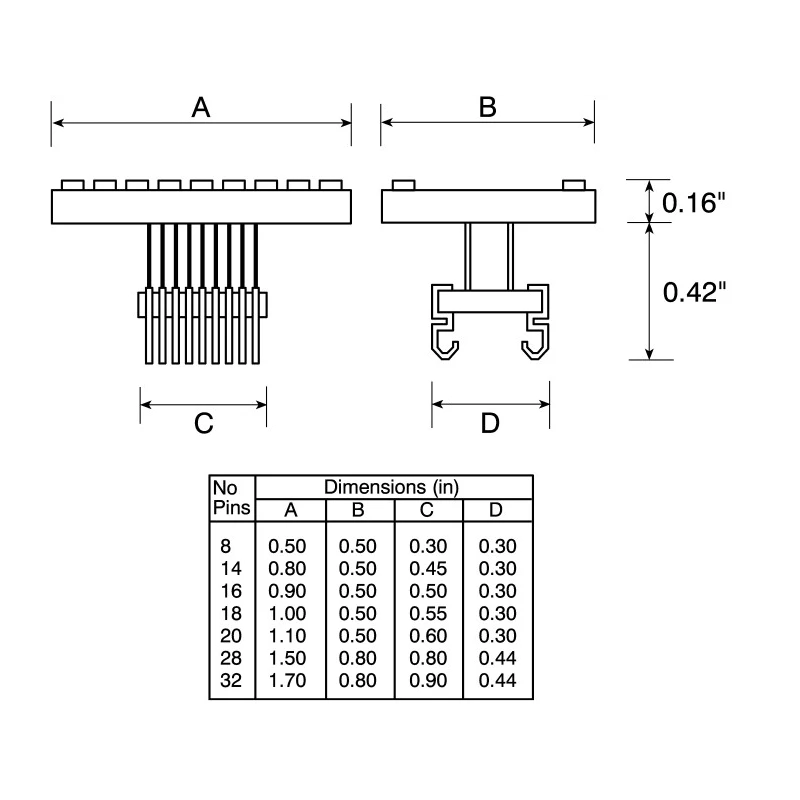

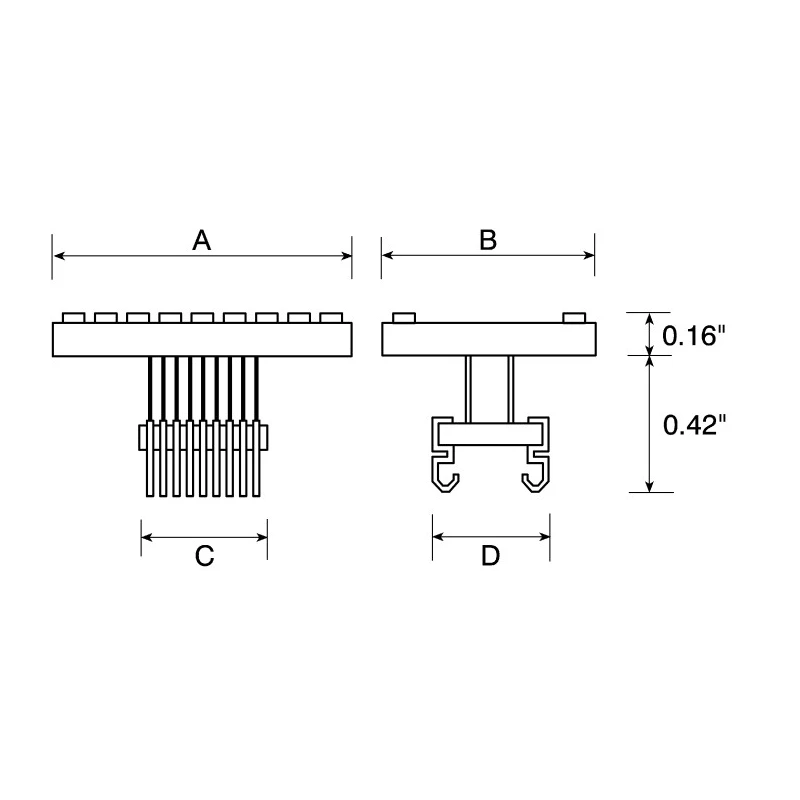

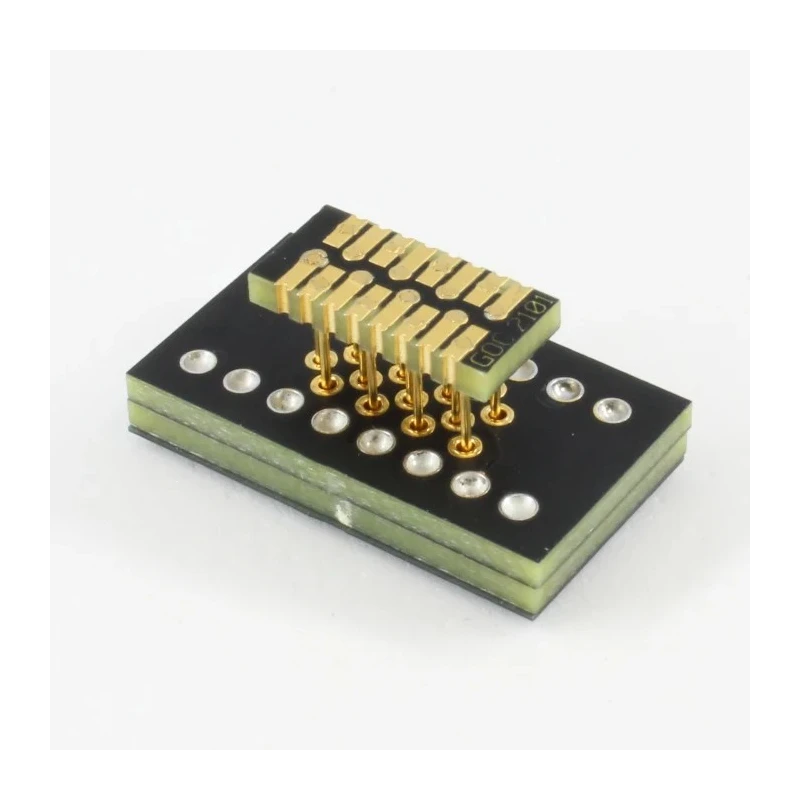

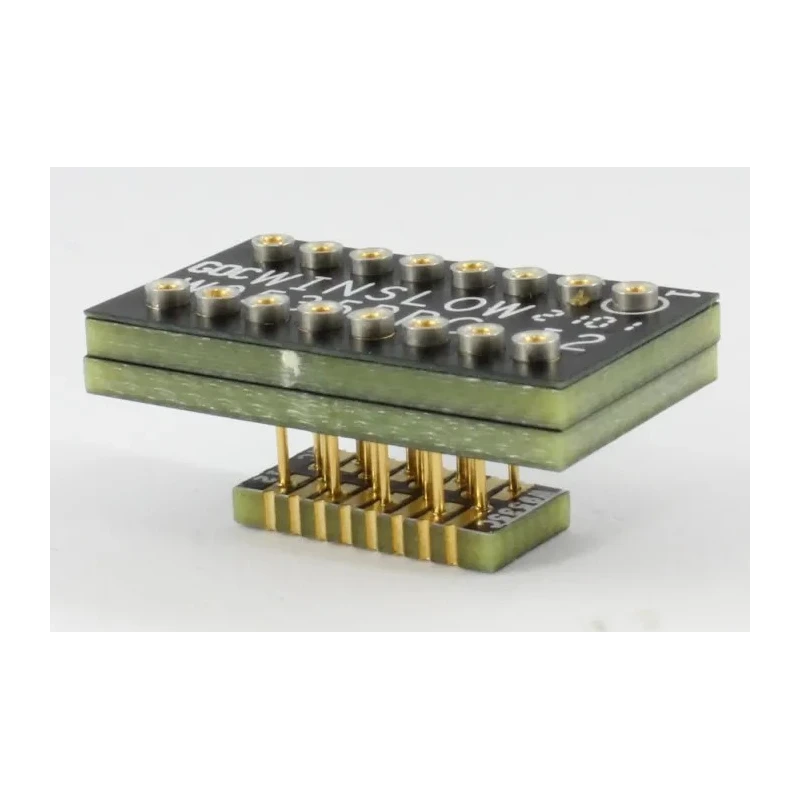

Winslow Straight Surface Mount 7.62 mm Pitch IC Socket Adapter DIP to SOJ/SOP W9535PRC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Winslow |
| Orientation | Straight |
| Model | W9535PRC |
| Mount Type | Surface |
| Housing Material | FR4 |
| Contact Material | Beryllium Copper Alloy |
| Pitch | 7.62mm |
| Contact Plating | Tin over Nickel |
| Connection Gender A | Female |
| Number of Contacts A | 16 |
| Connection Gender B | Male |
| PCB | Epoxy Fibreglass FR4 |
| Connection A | DIP |
| Connection B | SOJ/SOP |
Key Features
- This adapter features a straight surface mount design for seamless PCB integration.
- It supports 16 contacts on both A (DIP) and B (SOJ/SOP) sides.
- Contacts are made of beryllium copper alloy with tin over nickel plating for reliable conductivity.
- The housing material is robust FR4 epoxy fiberglass ensuring durable PCB support.
- Connection genders are female (DIP side) and male (SOJ/SOP side) to fit corresponding components.
- The adapter consists of two detachable pieces that facilitate easier surface mounting and testing.
- It allows conversion between dual in-line packages to small outline IC formats without redesigning boards.
- Manufactured in the United Kingdom, ensuring high-quality standards.
Product Description
Winslow W9535PRC is a straight surface mount IC socket adapter designed for converting DIP packages to SOJ/SOP format with a pitch of 7.62 mm. This adapter is ideal for electronics manufacturing, development, and prototyping where converting package types is necessary without board redesign.
The adapter supports 16 contacts on each side, with connection A configured as DIP with female gender, and connection B as SOJ/SOP with male gender. The contacts are crafted from beryllium copper alloy to ensure excellent electrical conductivity and mechanical resilience. They are plated with tin over nickel for corrosion resistance and reliable long-term performance.
The housing consists of FR4 epoxy fiberglass, a standard printed circuit board material, providing mechanical strength and insulation. This two-piece adapter includes a detachable top and base, allowing the top to be unplugged for easy testing or replacement. The surface mount base facilitates straightforward PCB mounting.
This product reduces development costs by enabling flexible IC socket conversion on existing PCBs, making it valuable for industrial electronics, manufacturing, testing laboratories, and R&D environments.
This adapter features a straight surface mount design for seamless PCB integration. Supports 16 contacts on both DIP and SOJ/SOP sides. Contacts utilize beryllium copper alloy with tin over nickel plating for conductivity.
Housing made of durable FR4 epoxy fiberglass material. Connection genders: female (DIP side) and male (SOJ/SOP side). Two-piece design with detachable top for easy mounting and testing. Converts dual in-line packages to small outline IC format without redesigning boards.
Manufactured in the United Kingdom adhering to quality standards.
Applicable in Industrial Electronics, Electronic Assembly, Testing Laboratories, Manufacturing, and R&D sectors. Explore more IC Socket Adapters from Winslow and other leading brands on EnvMart.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this IC socket adapter is 7.62 mm.
It supports 16 contacts on both the DIP and SOJ/SOP sides.
The contacts are made of beryllium copper alloy and are plated with tin over nickel for enhanced conductivity and corrosion resistance.
The housing is made of FR4 epoxy fiberglass, providing mechanical strength and insulation.
Yes, this model features a straight surface mount design for seamless PCB integration.
The two-piece design allows the top to be unplugged for easy testing or replacement, facilitating straightforward PCB mounting.
This adapter is manufactured in the United Kingdom, adhering to high-quality standards.
It converts dual in-line packages (DIP) to small outline IC formats (SOJ/SOP) without the need for board redesign.
The tin over nickel plating provides corrosion resistance and ensures reliable long-term performance of the contacts.
The model number of this adapter is W9535PRC.
