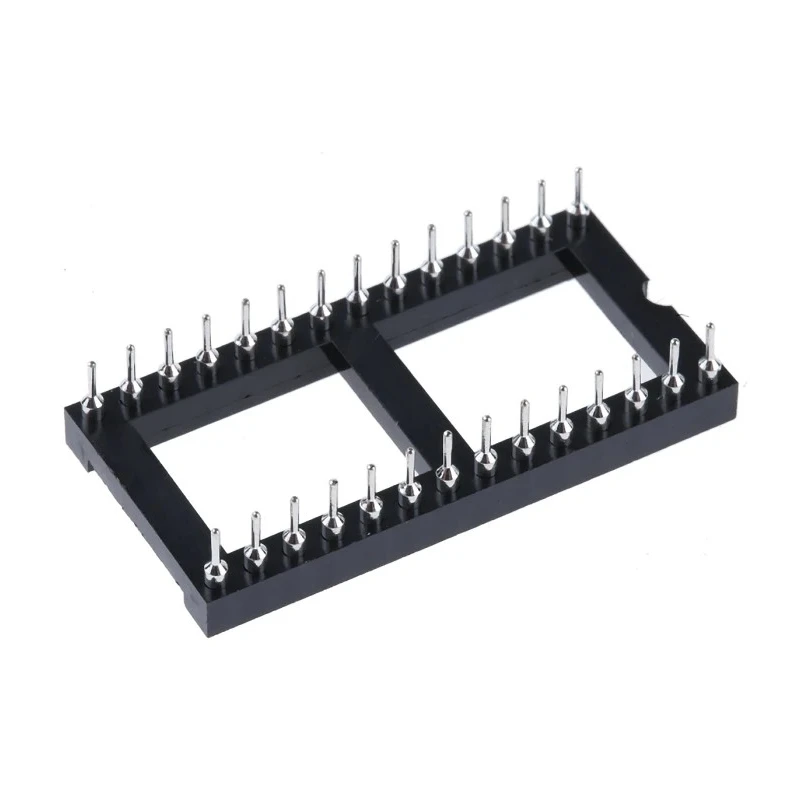

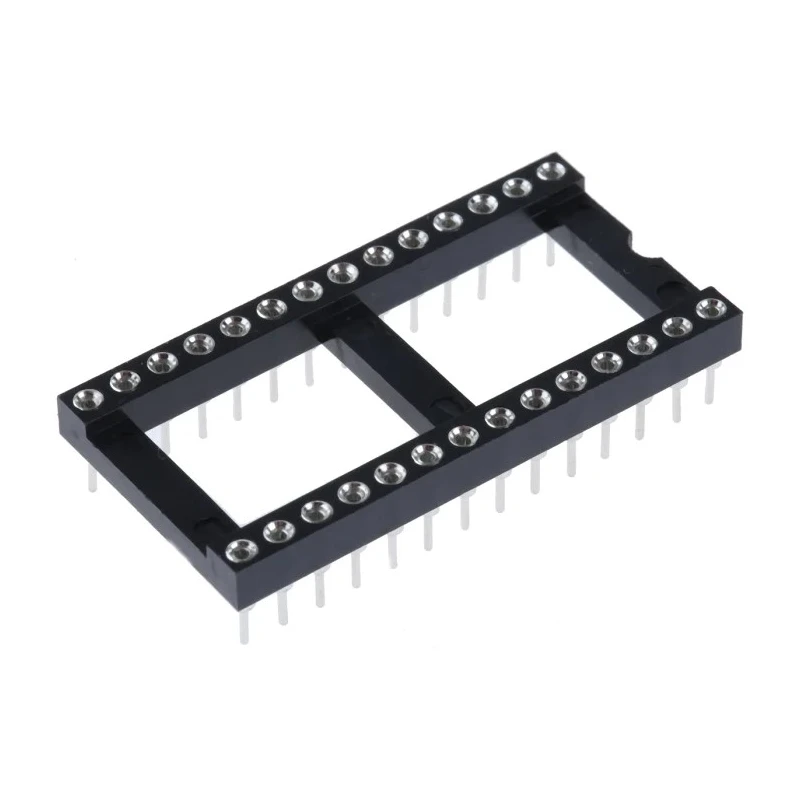

Winslow 2.54 mm Pitch Vertical 28 Way Through Hole Turned Pin Open Frame DIL Socket 5A W30528TTRC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Winslow |
| Orientation | Vertical |
| Current | 5A |
| Temperature range | -55°C to +150 °C |
| Frame Type | Open Frame |
| Length | 35.48mm |
| Model | W30528TTRC |
| Depth | 17.66mm |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Beryllium Copper Alloy |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 28 |
| Pin Type | Turned |
| Row Width | 15.24mm |
Key Features
- Constructed with a beryllium copper alloy contact material for high durability.
- Features tin-plated contacts and a polybutylene terephthalate housing.
- Supports a maximum operating temperature of 150°C for reliable performance.
- Low profile and vertical orientation enhances PCB layout options.
- Designed for solder termination ensuring strong mounting on boards.
- Open frame construction minimizes material usage while maintaining strength.
- Row width of 15.24 mm and dimensions suited for multiple electronic applications.
- Temperature range from -55°C to +150°C supports varied industrial environments.
Product Description
Winslow W30528TTRC is a premium quality DIL Socket featuring a 2.54 mm pitch vertical configuration with 28 ways and through-hole mounted turned pins designed for electronic connectivity applications.
The socket incorporates a four-finger inner contact made from a beryllium copper alloy plated with a thin layer of tin over nickel for excellent electrical conductivity and mechanical reliability.
Housed in durable polybutylene terephthalate, this open frame socket offers excellent temperature tolerance between -55°C and +150°C, allowing usage in rugged industrial, manufacturing, and laboratory electronics settings.
Its low profile design and vertical orientation provide efficient PCB layout opportunities while supporting up to 5A current, suitable for various electronic components. The solder termination ensures a secure, reliable connection on printed circuit boards, making it ideal for applications requiring robust mechanical and electrical performance.
Constructed using beryllium copper alloy contacts plated with tin for enhanced conductivity and corrosion resistance. Open frame design reduces bulk while maintaining mechanical strength. 28 contacts with 2.54 mm pitch spaced across a 15.24 mm row width.
Designed to operate across a wide temperature range from -55°C to 150°C ensuring use in diverse environmental conditions. Solder termination provides strong mounting suitable for industrial electronics assembly. Compact dimensions: 35.48 mm length, 17.66 mm depth, and 4.6 mm width for integration in constrained spaces.
Applications include industrial, laboratory, and manufacturing electronics requiring durable and precise socket connections. Explore more electronic components and connectors within the EnvMart catalog for your industrial and technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 5A.
It operates within a temperature range of -55°C to +150°C, making it suitable for various industrial environments.
The socket has a length of 35.48 mm, a depth of 17.66 mm, and a width of 4.6 mm.
It features a solder termination type, ensuring a strong and secure connection on printed circuit boards.
The contacts are made from beryllium copper alloy, while the housing is constructed from polybutylene terephthalate.
This DIL socket has 28 contacts arranged in a 2.54 mm pitch configuration.
It is designed in a vertical orientation, which enhances PCB layout options.
It has an open frame design, which minimizes material usage while maintaining strength.
The row width is 15.24 mm, accommodating the 28 contacts.
It uses turned pins for effective electrical connectivity.
The country of origin for this product is India.
It is suitable for industrial, laboratory, and manufacturing electronics that require durable and precise socket connections.
