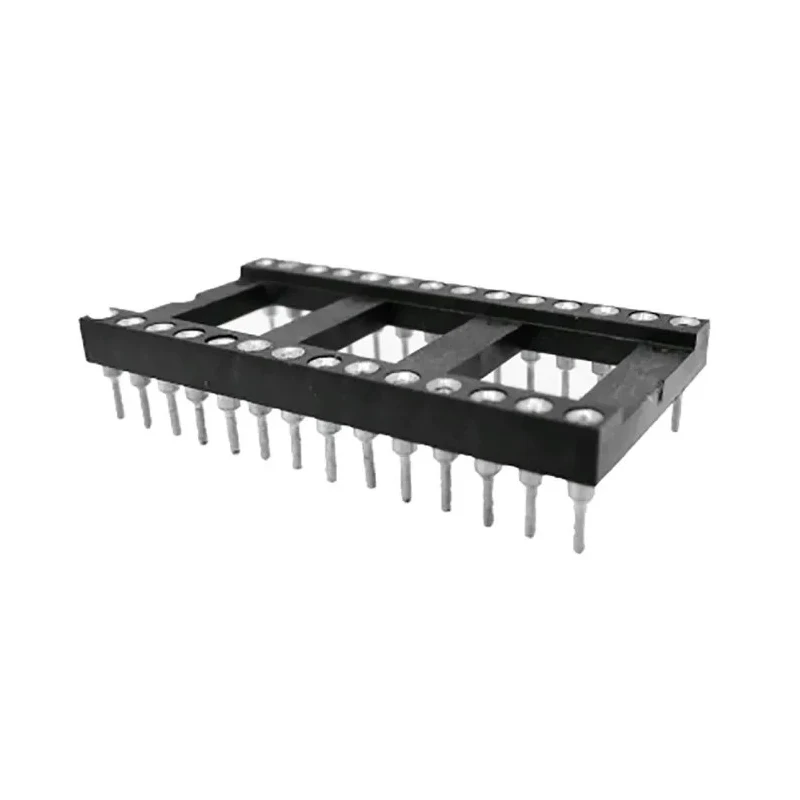

RS PRO 2.54 mm Pitch Vertical 28 Way Through Hole Turned Pin Closed Frame DIL Socket 3A 183-1573

RS PRO 183-1573 DIL Socket is a 28-way vertical orientation electronic connector with a 2.54 mm pitch and a current rating of 3A, suitable for multiple industrial and electronic applications. It employs turned pin contacts that are precision-formed to ensure reliable electrical connections and mechanical stability.

The socket features a closed frame design which effectively eliminates flux intrusion and solder wicking during the soldering process, improving overall assembly quality. The contacts consist of brass and beryllium copper alloy materials, offering excellent conductivity and mechanical resilience, with tin plating over nickel providing effective corrosion resistance.

Its housing is constructed from high-temperature thermoplastic designed to withstand operating temperatures from -40°C to 105°C, making it suitable for harsh environments encountered in industrial, laboratory, and manufacturing settings. The product supports through-hole mounting and solder termination, enabling robust PCB attachments.

Additional attributes include a length of 35.56 mm, width of 17.78 mm, depth of 3 mm, and a row width of 15.24 mm, facilitating ease of integration in compact electronic assemblies. The voltage rating accommodates up to 60V AC/DC electrical systems, enhancing versatility across various electronic equipment.

The socket has a pitch of 2.54 mm for standard DIP components. Features 28 precision turned pin contacts for secure connections. Includes a closed frame to prevent solder defects during assembly. Rated at 3A current and 60V AC/DC voltage.

Brass and beryllium copper alloy contacts provide durability. Thermoplastic housing withstands high temperature and thermal stress. Tin plating over nickel protects contacts from corrosion. Designed for through-hole soldering and vertical mounting.

Operating temperature range suitable for diverse industrial conditions.

This RS PRO DIL Socket is widely applicable in electronics manufacturing, industrial automation, instrumentation, and other professional environments requiring reliable IC socket solutions. It offers high reliability and durability while simplifying component replacement and maintenance.
