TE Connectivity 2.54 mm Pitch Vertical 8 Way Through Hole Standard Pin Ladder DIL Socket 1-2199298-2

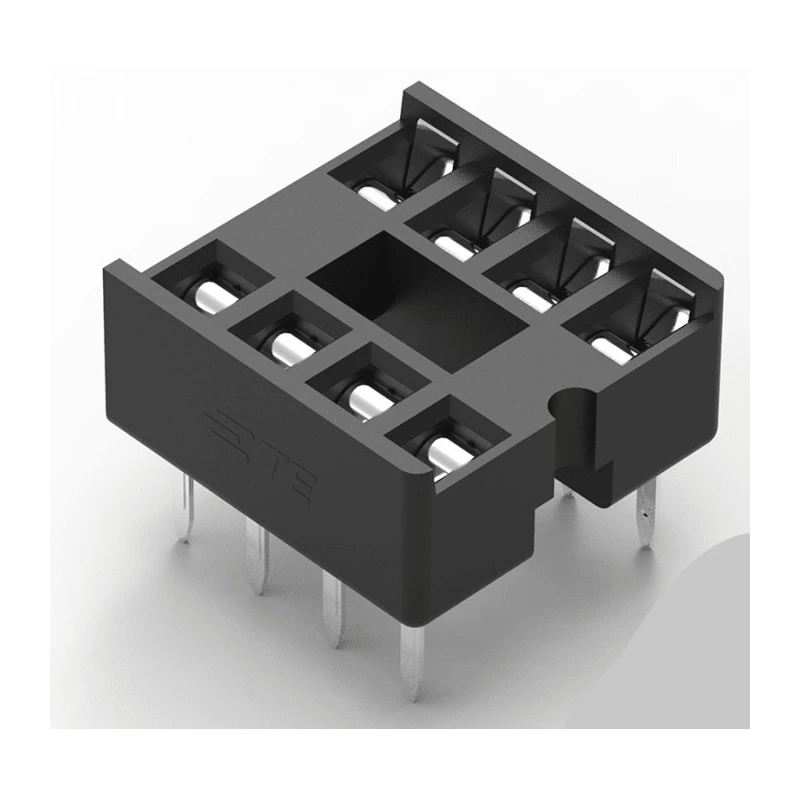

TE Connectivity model 1-2199298-2 is a vertical 8-way DIL Socket with a 2.54 mm pitch designed for through-hole mounting. It provides a secure and reliable interface between integrated circuit devices and printed circuit boards in demanding industrial environments.

The socket features a ladder frame housing made from polybutylene terephthalate, offering excellent durability and heat resistance. The phosphor bronze contact pins are tin-plated for corrosion resistance and consistent electrical performance. With a current rating of 1 ampere and voltage rating of 250V AC, it supports a broad range of electronic circuits and applications.

The solder termination type provides solid mechanical and electrical connection on the PCB. Its operating temperature range from -40°C to 105°C ensures suitability for various environmental conditions. The socket's compact size with a width of 10 mm, depth of 5.1 mm, and length of 7.62 mm facilitates integration in tight spaces.

This component is ideal for industrial controls, intelligent building systems, medical devices, military hardware, and other embedded electronics requiring dependable IC socket solutions. Precision engineering allows for quick IC mating and easy field replacement, avoiding overheating during soldering processes and enabling system upgrades.

This socket accommodates 8 contacts with standard pin type and vertical orientation. It ensures reliable electrical contact with a pitch of 2.54 mm and a ladder frame design. Designed for through-hole PCB mounting with solder termination.

Operates efficiently across a broad temperature range from -40°C to 105°C. Constructed from durable polybutylene terephthalate housing and phosphor bronze pins plated with tin. Rated for 1A current and 250V AC voltage application.

Compact form factor dimensions of 10 mm width, 5.1 mm depth, and 7.62 mm length.
