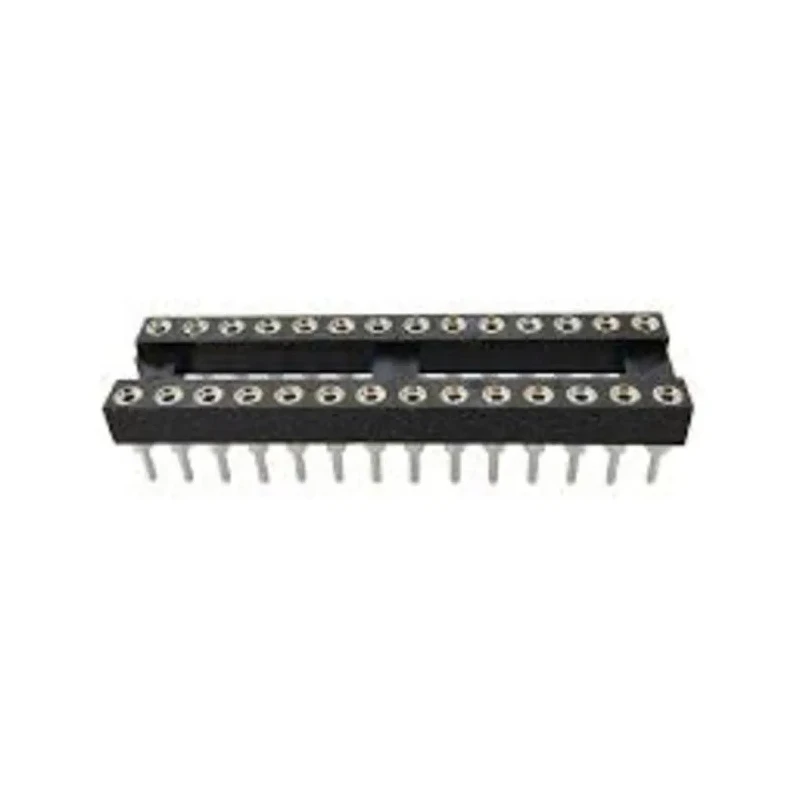

RS PRO 2.54 mm Pitch Vertical 28 Way Through Hole Turned Pin Closed Frame DIL Socket 3A 183-1575

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 2.54 mm Pitch Vertical 28 Way Through Hole Turned Pin Closed Frame DIL Socket 3A 183-1575

Name: RS PRO 2.54 mm Pitch Vertical 28 Way Through Hole Turned Pin Closed Frame DIL Socket 3A 183-1575
Brand: RS PRO
SKU: 427248
Price: 1.15 USD
Availability: InStock



Category DIL Socket Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	60V
Brand	RS PRO
Orientation	Vertical
Current	3A
Frame Type	Closed Frame
Model	183-1575
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Beryllium Copper Alloy, Brass
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	28
Pin Type	Turned

Key Features

This DIL socket supports 28 contacts with a 2.54 mm pitch for precise component fitting.
It features a vertical, closed frame design for enhanced mechanical stability.
The turned pin type and through hole mounting ensure reliable soldered connections.
The socket is rated for 3A current and 60V voltage, suitable for moderate power applications.
Constructed with beryllium copper alloy and brass contacts with tin plating for excellent conductivity.
Thermoplastic housing offers high temperature resistance up to 105°C and UL94V-0 insulation.
Designed to prevent solder wicking and flux intrusion during soldering for easy and safe assembly.
Suitable for repeated insertion and withdrawal, ideal for production and testing environments.

Product Description

RS PRO 183-1575 is a high-quality 28 way vertical DIL Socket designed for through hole mounting of dual in-line package electronic components. The socket utilizes turned pin contacts with a 2.54 mm pitch and a closed frame construction that eliminates flux intrusion and solder wicking during soldering, ensuring reliable and durable connections.

Constructed with stamped spring copper inserts and plated with tin on the outer sleeve, the socket provides excellent electrical contact and mechanical resilience, allowing for repeated insertion and withdrawal of ICs without connection degradation.

The housing is made from UL94V-0 rated thermoplastic material that withstands high-temp soldering processes up to 260°C, ensuring reliability in demanding production conditions.

This socket is rated for a current of 3A and a maximum voltage of 60V, making it suitable for a variety of electronics applications, including industrial control, instrumentation, and communications equipment. It operates safely within a temperature range of -40°C to 105°C.

28 contacts with precision internal stamped spring contacts for excellent connectivity. Closed frame design prevents flux intrusion and solder wicking during soldering. Turned pin contacts provide durable and reliable electrical connections.

Thermoplastic housing offers high temperature and flame resistance. Supports high-pressure contacts suitable for production line applications. Vertical orientation facilitates space-efficient PCB assembly. Suitable for industrial, laboratory, manufacturing, and electronics assembly applications.

The RS PRO range is recognized globally for its rigorous quality testing and dependable performance, ensuring you receive a durable and high-value component. Explore the broad RS PRO catalog for additional electronic components and sockets tailored to your application needs.
