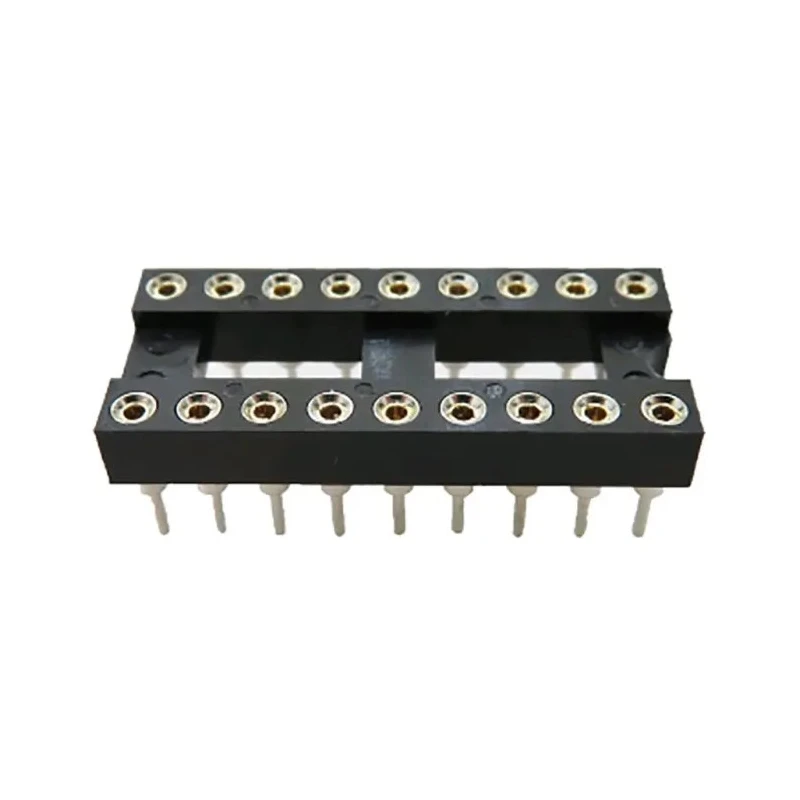

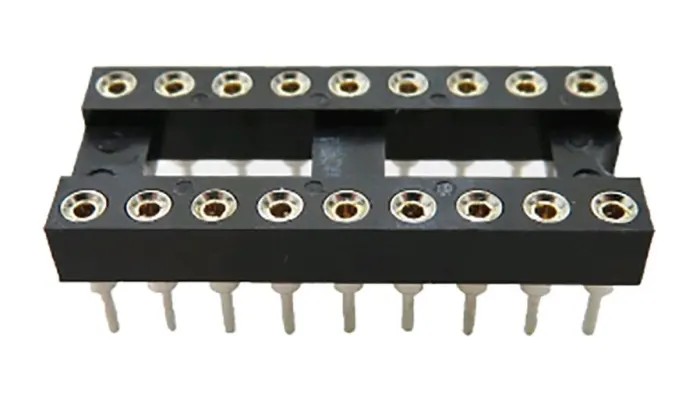

RS PRO 2.54 mm Pitch Vertical 18 Way Through Hole Turned Pin Closed Frame DIL Socket 3A 183-1567
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 60, 60V ac |
| Brand | RS PRO |
| Orientation | Vertical |
| Current | 3A |
| Frame Type | Closed Frame |
| Length | 22.86mm |
| Model | 183-1567 |
| Depth | 3mm |
| Width | 10.16mm |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass, Beryllium Copper Alloy |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Pitch | 2.54mm |
| Contact Plating | Gold, Tin |
| Number of Contacts | 18 |
| Pin Type | Turned |
| Row Width | 7.62mm |
Key Features
- Features a 2.54 mm pitch for precise component placement.
- Includes 18 contacts with turned pin type for durability.
- Closed frame design prevents flux intrusion during soldering.
- Supports a current rating of 3A and voltage rating of 60 VAC/VDC.
- Constructed with brass and beryllium copper alloy contacts with gold and tin plating.
- Thermoplastic housing ensures high temperature resistance up to 105°C.
- Vertical orientation with through-hole mounting for secure PCB connection.
- Suitable for industrial and electronic component applications.
Product Description
RS PRO 183-1567 is a vertical 18 way DIL socket featuring a 2.54 mm pitch and a through-hole mounting design. It supports a current rating of 3A and a voltage rating of 60 VAC/VDC. The closed frame with turned pins provides robust and reliable electrical connections suitable for demanding industrial and electronic applications.
The socket features solid precision turned sleeves with gold flash over nickel contact plating and tin over nickel outer sleeve plating to ensure excellent conductivity and corrosion resistance. The stamped spring copper insert allows repeated insertions and withdrawals maintaining stable contact. The thermoplastic housing is molded for high thermal resistance, with operational temperatures from -40°C to 105°C.
The socket has a length of 22.86 mm, width of 10.16 mm, depth of 3 mm, and a row width of 7.62 mm. It is constructed to prevent solder wicking during assembly and is machine insertable for efficient manufacturing. The pin material is brass combined with beryllium copper alloy for enhanced durability.
Features an anti-solder wicking closed frame design. High pressure contacts made of beryllium copper alloy for reliability. Machine insertable with precise dimensions for consistent socket mounting. Operating temperature range between -40°C and 105°C for tin plated variants.
Gold plating on contacts to reduce oxidation and improve electrical performance. Through-hole solder termination type ensuring strong mechanical and electrical connection. Compatible with industrial, laboratory, manufacturing, and electronic repair environments.
This product is made in China and comes new with no standard certifications but offers robust performance suitable for power and connector applications requiring reliable IC socket connectivity.
Explore EnvMart's wide selection of DIL Sockets and electronic components to find compatible products and accessories for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A.
It has a voltage rating of 60 VAC/VDC.
The socket has a length of 22.86 mm, width of 10.16 mm, depth of 3 mm, and a row width of 7.62 mm.
It features a through-hole mounting design for secure PCB connection.
The contacts are made from brass and beryllium copper alloy, with gold and tin plating for improved conductivity.
It operates within a temperature range of -40°C to 105°C.
This DIL socket features 18 contacts.
The pin pitch is 2.54 mm, allowing for precise component placement.
It has a closed frame design that prevents flux intrusion during soldering.
Yes, it is suitable for industrial and electronic component applications.
It uses a solder termination type for strong mechanical and electrical connections.
The socket is designed for vertical orientation.
